Torque-Resistant Linear Bushings R0696 3.., type 2, without shaft KBDR2-..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For self-supporting, torsionally stiff guides with only one shaft
- Torque-Resistant Linear Bushings with adjusting screw come set to zero clearance
- Hardened steel adjusting screw
- Steel lock nut
- Ball retainer and outer sleeve made of PA or POM
Features
- Hardened steel bearing plates
- Balls made of rolling bearing steel
Technical data
General technical data
| Ø d | mm | 20 | 25 | 30 | 40 | 50 |
| amax | m/s² | 150 | ||||
| vmax | m/s | 3 | ||||
| m | kg | 0.064 | 0.135 | 0.21 | 0.39 | 0.68 |
| Operating conditions | ||||||
| Permissible ambient temperature (min ... max) | -10 °C ... +80 °C | |||||
Load capacities and load moments
| Ød | mm | 20 | 25 | 30 | 40 | 50 |
| C 1) | N | 1550 | 3030 | 3680 | 6320 | 9250 |
| C0 1) | N | 1050 | 2180 | 2790 | 4350 | 6470 |
| Mt | Nm | 12 | 24 | 37 | 86 | 167 |
| 1) | The load ratings indicated are minimal values as the load direction cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| m | Mass | kg |
| Mt | Dynamic torsional moment load capacity | Nm |
| vmax | Maximum permissible speed | m/s |

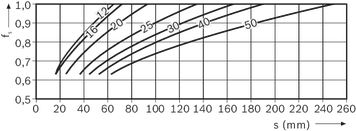

Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the torque-resistant Linear Bushing. The dynamic load ratings C in the tables must therefore be multiplied by the factor fs .
| 1) | fs = factor |
| 2) | s = movement path |
Service life, shaft straightness, stabilized installation
Definition of dynamic load ratings

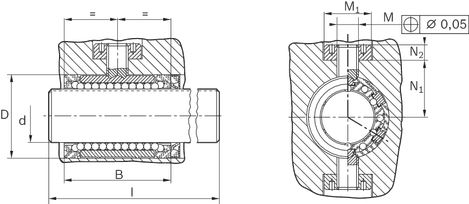

Dimensions
Dimensions
| Ød | mm | 20 | 25 | 30 | 40 | 50 |
| D 1) | mm | 32 | 40 | 47 | 62 | 75 |
| B | mm | 45 | 58 | 68 | 80 | 100 |
| M | M10x1 | M12x1 | M16x1,5 | |||
| M1 | 22 mm +0.1 | 26 mm +0.1 | 34 mm +0.1 | |||
| N1 | mm | 21.5 | 28.5 | 32 | 44 | 52 |
| N2 | mm | 8 | 9.5 | 12.5 | ||
| 1) | Recommended installation bore: DJS7. |
Project planning information
Life expectancy calculation
Mounting
General mounting instructions
Commissioning
Initial lubrication
Linear bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Accessories
Wiper seals for Torque-resistant Linear Bushings, type 2
Wiper seals for Torque-resistant Linear Bushings, type 2
- Galvanized metal case
- Elastomer wiper seal
Certification
Directives and standards
Safety Instructions
load errorDownloads
 | Torque-Resistant Linear Bushings Manual | R320103691 | 2003-08-01 | English, French, German, Italian | PDF | 143k Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
