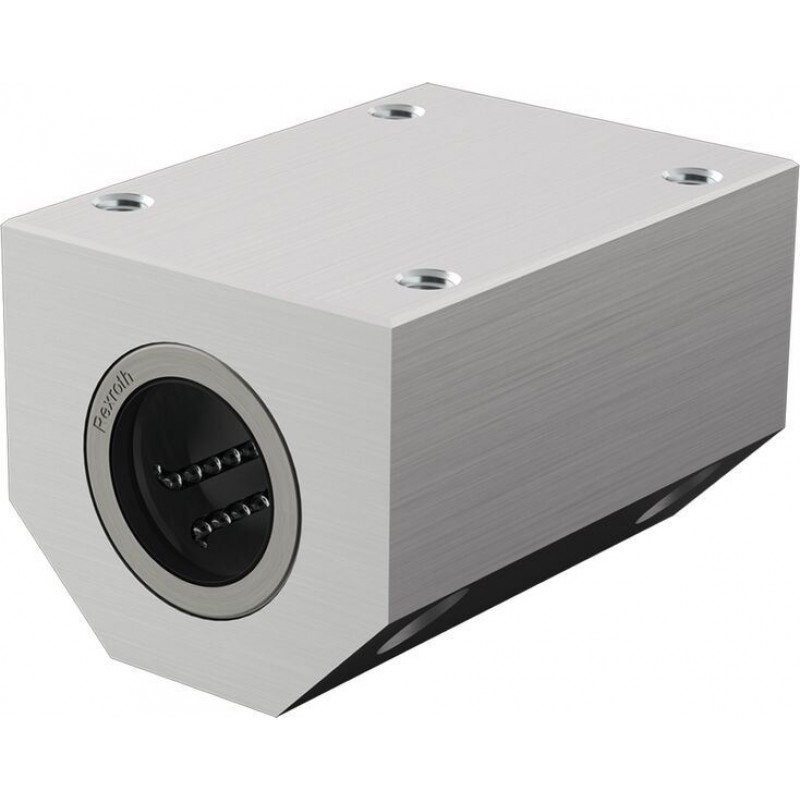

eLINE Linear Sets, tandem, closed-type, stainless, R1029 LSACT-..-DD-RT-NR-G
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Lightweight precision tandem housing (aluminum)
- Corrosion-resistant version
- Integrated wiper seals
- Reduced radial clearance
- Initial lubrication with Dynalub 510
Features
- Two eLINE Linear Bushings
Technical data
General technical data
| Ø d | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| amax | m/s² | 150 | |||||
| vmax | m/s | 5 | |||||
| m | kg | 0.17 | 0.24 | 0.31 | 0.57 | 0.8 | 1.54 |
| FR 1) | N | 0.8 | 1 | 1.5 | 2 | 2.5 | 3 |
| Breakaway force | N | 1.5 | 2 | 3 | 4.5 | 6 | 8 |
| Shaft radial clearance h6 | µm | + 8 - 24 | + 9 - 25 | + 12 - 24 | + 18 - 25 | ||
| Operating conditions | |||||||
| Permissible ambient temperature (min ... max) | -10 °C ... +80 °C | ||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| C 1) | N | 920 | 1180 | 1610 | 3330 | 4385 | 7260 |
| C0 1) | N | 780 | 920 | 1440 | 3120 | 4460 | 7440 |
| ML0 | Nm | 13 | 18 | 21 | 59 | 103 | 204 |
| 1) | The load ratings apply for the main direction of loading. If the load direction is not the main direction of loading, the load ratings must be multiplied by the following factors: Ø d 12 and 16: f = 0,90, f0 = 0.86, Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| ML0 | Static longitudinal moment load capacity | Nm |
| vmax | Maximum permissible speed | m/s2 |
Effect of load direction on load rating
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.

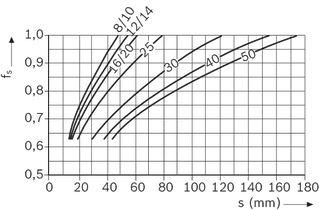

Reduced load capacity with short stroke
In case of short stroke, the service life of the shafts is less than that of Linear Bushings. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = stroke |
Definition of dynamic load ratings

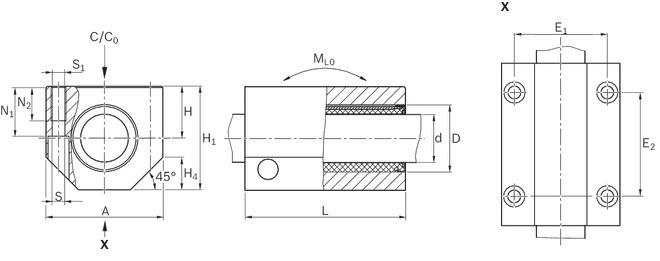

Dimensions
Dimensions
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| D | mm | 19 | 24 | 28 | 35 | 40 | 52 |
| A | mm | 40 | 45 | 53 | 62 | 67 | 87 |
| E1 | 29 mm ±0.15 | 34 mm ±0.15 | 40 mm ±0.15 | 48 mm ±0.15 | 53 mm ±0.15 | 69 mm ±0.15 | |
| E2 | 35 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 55 mm ±0.15 | 70 mm ±0.15 | 85 mm ±0.15 | |
| H | mm | 17 | 19 | 23 | 27 | 30 | 39 |
| Tolerance for H 1) | µm | + 24 0 | + 25 0 | + 26 0 | |||
| H1 | mm | 33 | 38 | 45 | 54 | 60 | 76 |
| H4 | mm | 11 | 13 | 15 | 17 | 19 | 24 |
| L | mm | 60 | 65 | 85 | 105 | 125 | |
| N1 | mm | 16 | 18 | 22 | 26 | 29 | 38 |
| N2 | mm | 11 | 13 | 18 | 22 | ||
| S 2) | mm | 4.3 | 5.3 | 6.6 | 8.4 | ||
| S1 | M5 | M6 | M8 | M10 | |||
| 1) | In relation to Ø d. |
| 2) | Fixing screws ISO 4762-8.8 |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| C/C0 | Main direction of loading | |
| ML0 | Static torsional moment laod capacity | Nm |
Project planning information
Life expectancy calculation
Mounting
General mounting instructions
Commissioning

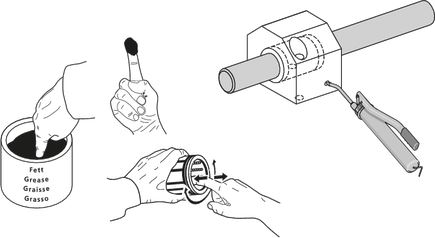

Initial lubrication
Linear bushings come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Accessories
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
- Galvanized metal case
- Elastomer wiper seal
Certification
Directives and standards
Safety Instructions
Notes
Downloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
