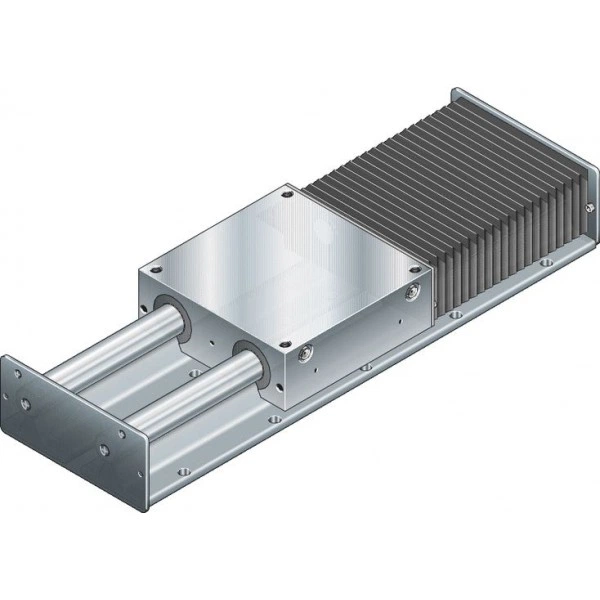

Open-type linear motion slides without drives SOO
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Open-type format for self-supporting installation
- Long lengths possible thanks to shaft support rail
- With bellows cover
Product description
Linear motion slides are an inexpensive solution for a wide variety of applications. Linear motion slide guides consist of linear bushings that ensure quiet travel and a long service life. Linear motion slides with an open design are fastened to the mounting base using shaft support rails.
Structural design
- Carriage (aluminum alloy)
- Four super linear bushings
- Four seals
- Two precision steel shafts, tolerance h6, with shaft support rail (aluminum alloy)
Technical data
Maximum values for each size
| Size | SOO-085 | SOO-100 | SOO-130 | SOO-160 | SOO-180 | SOO-230 | SOO-280 | |
| C | N | 2850 | 3440 | 6100 | 11950 | 14520 | 24950 | 36380 |
| Mt | Nm | 25 | 39 | 134 | 320 | 425 | 928 | 1687 |
| ML | Nm | 27 | 41 | 141 | 339 | 447 | 1057 | 1853 |
| Mx max | Nm | 10 | 16 | 49 | 127 | 177 | 350 | 644 |
| My max | Nm | 11 | 17 | 52 | 134 | 186 | 399 | 708 |
| Mz max | Nm | 11 | 17 | 52 | 134 | 186 | 399 | 708 |
| Fy max | N | 1020 | 1260 | 2140 | 4500 | 5760 | 8960 | 13240 |
| Fz max | N | 1020 | 1260 | 2140 | 4500 | 5760 | 8960 | 13240 |
| Lmax | mm | 4000 | 5300 | |||||
| amax 1) | m/s² | 150 | ||||||
| vmax 2) | m/s | 3 | ||||||
| 1) | For linear motion slides without drive SGO/SOO, unlike the SGK/SOK, there is no ball screw assembly as a limiting factor for acceleration. |
| 2) | Speeds of up to 5 m/s possible. Service life is limited by the heightened wear of the plastic parts. |
| Maximum values depends on the selected configuration. |
Legend
| Symbol | Description | Unit |
| C | Dynamic load capacity, linear guide | N |
| Mt | Dynamic torsional moment load capacity | Nm |
| ML | Dynamic longitudinal moment load capacity | Nm |
| Mx max | Maximum admissible torsional moment around the x-axis | Nm |
| My max | Maximum admissible torsional moment around the y-axis | Nm |
| Mz max | Maximum admissible torsional moment around the z-axis | Nm |
| Fy max | Maximum dynamic load in y-direction | N |
| Fz max | Maximum dynamic load in z-direction | N |
| Lmax | Maximum length | mm |
| amax | Maximum acceleration travel | m/s2 |
| vmax | Maximum permissible speed | m/s |
Safety Instructions
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
Ordering codes
Order overview
| Size | Part number | Short product name | CAD data | Buy |
| SOO-085 | R026500000 | SOO-085-NN-1 | ||
| SOO-100 | R026510000 | SOO-100-NN-1 | ||
| SOO-130 | R026520000 | SOO-130-NN-1 | ||
| SOO-160 | R026530000 | SOO-160-NN-1 | ||
| SOO-180 | R026540000 | SOO-180-NN-1 | ||
| SOO-230 | R026550000 | SOO-230-NN-1 | ||
| SOO-280 | R026560000 | SOO-280-NN-1 |
Explanation of short product name
| Linear Motion Slides SOO example | SOO-130-NN-1 | |
| System | S | LinearMotionSlides |
| Design type | O | Open |
| Drive | O | Without |
| Size | 130 | 085/100/130/160/180/230/280 |
| Version | NN | Normal version |
| Generation | 1 | Product generation 1 |
Downloads
 | Linear Motion Slides (PDF) Catalog | R310EN3001 | 2012-06-01 | English | PDF | 19MB Product Groups: Linear Motion Slides |
| Linear Motion Slides SGO/SOO Manual | R320103073 | 2003-08-01 | English, French, German, Italian | PDF | 578k Product Groups: Linear Motion Slides |
| Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders |
| Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders |
