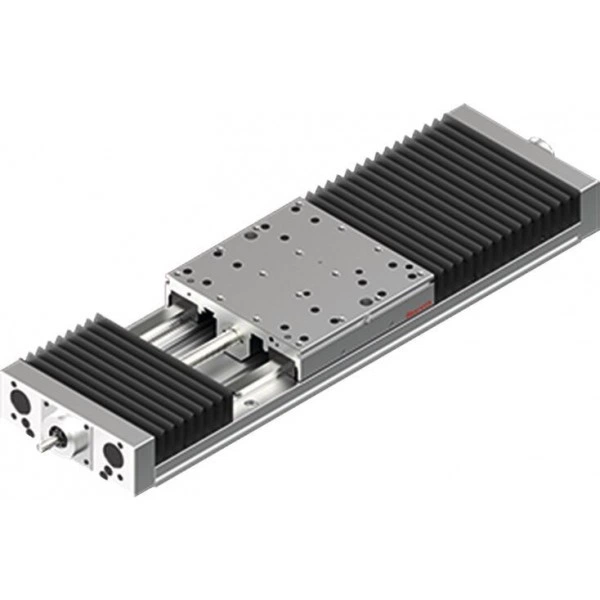

Ball rail tables with ball screw drive TKK

Description

• Can be configured flexibly as a complete drive system for almost any application
• Available in four sizes finely graduated length increments
• High rigidity, positioning accuracy and repeatability
• Highly precise procedure behavior over the entire travel range
• Suitable Rexroth motors and extensive accessories

Features

• Ball rail tables TKK are ready-to-install linear motion axes and are available in 2 versions
• Aluminum version: Base plate and carriage made of aluminum frame, 4 coordinated sizes in finely graduated length increments up to Lmax
• Steel version: Base plate and carriage made of steel, 2 sizes in finely graduated coordinated length increments up to Lmax
• Base plate with reference edge for fast, simple mounting and easy alignment
• Driven by backlash-free, pre-tensioned ball screw drive in rolled design in accordance with DIN 69051 in the tolerance grade T7
• Polyurethane protective bellows for protection of ball rail and ball screw drive

Product description

With our Ball Rail Tables TKK, Rexroth offers ready-to-install solutions for linear motion and positioning tasks requiring high accuracy and rigidity. Their compact design, with pre-tensioned rail systems and ball screw drive, allow for high-precision travel with high rigidity. The accuracy charts in the catalog illustrate the precision of these compact linear motion axes.

Structural design

• Base plate made of machined aluminum profile or steel with a reference edge in finely graduated length rasters

• Ball rail systems with 4 runner blocks per carriage

• Ball screw drives in tolerance grade 7 with backlash-free nut system

• Fixed bearing end block made of aluminum with two-row, pre-tensioned angular-contact ball bearing

• Floating bearing end block with double floating bearing system

• Carriage made of machined aluminum profile or steel in various lengths

Additional components

• Removing the motor attachments with flange and coupling or via a timing belt side drive

• Attachment kits for motors according to customer specification

• Maintenance-free servo motors with selectable brake and integrated feedback

• Switch (mechanical, inductive) and switching angle

• Socket and plug

• Cable duct

Technical data

Mounting

Accessories

Sliding blocks and springs for Ball Rail Tables TKK

Sliding blocks and springs for Ball Rail Tables TKK

• Not product-specific documents

• CAD data

• Service

Adapter

Adapter

• Not product-specific documents

• Service

Safety Instructions

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

We would also be happy to send you the documents that you want.

If you are unsure about using this product, please contact Bosch Rexroth.

Downloads

	Ball Rail Tables TKK Catalog | R310EN2501 | 2008-04-01 | English | PDF | 13.9MB Product Groups: Ball Rail Tables
	Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders
	Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders
	Ball Rail Tables TKK Manual | R320103673 | 2004-03-01 | English, French, German, Italian | PDF | 7.7MB Product Groups: Ball Rail Tables
