Артикул: RX7974
В наличии

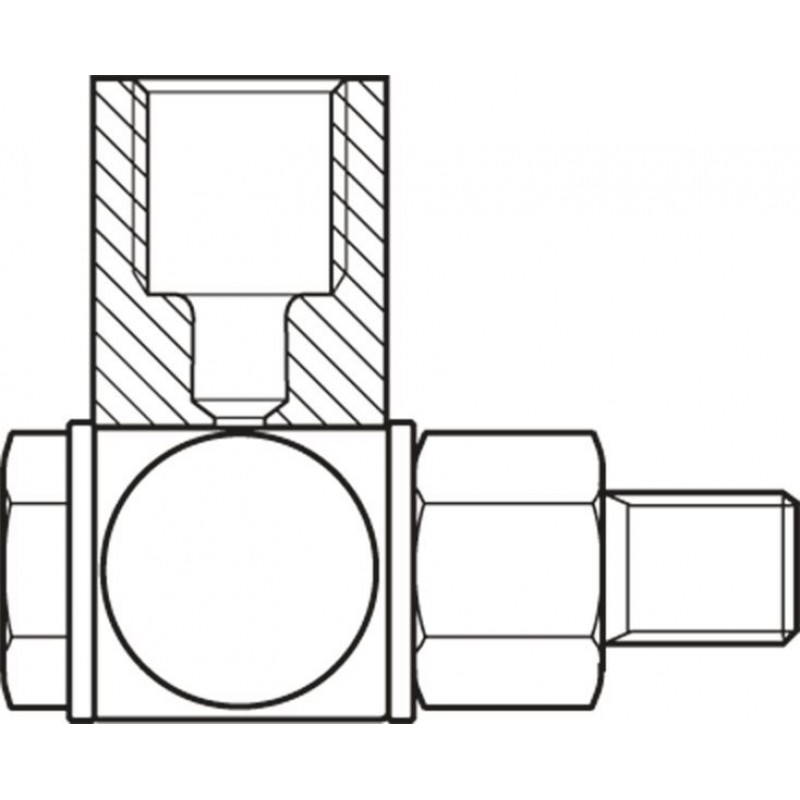

Swivel fittings L = 22 mm R3417 0.. 09
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description

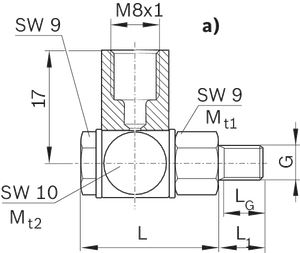

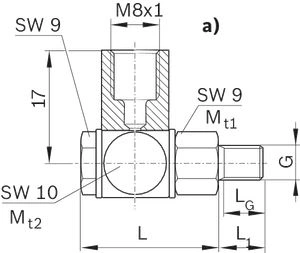

Dimensions
Dimensions
| Part number | G | L | L1 | LG | Mt1 | Mt2 | Mass |
| mm | mm | mm | mm | Nm | Nm | g | |
| R341701809 | M6 | 22 | 8 | 6.5 | 1.8 | 5 | 17 |
| R341704509 | 9.8 | 7.5 | - | - | |||
| R341704409 | 12.5 | 8 | 20 | ||||
| R341705909 | 9 | 7.5 | 1.8 | 5 | 17 | ||
| R341702309 | 14.5 | 8 | - | - | 18.8 | ||
| R341706009 | 10 | 1.8 | 5 | 17.5 | |||
| R341704309 | 16.5 | - | - | 20 | |||
| R341706109 | 14 | 1.8 | 5 | 19 | |||
| R341706209 | 15 | 19.5 | |||||
| R341706309 | 16 | 20 |
Note on swivel fittings
Mt2 is required for sealing the swivel arm above the copper washers. Since Mt2 is greater than Mt1, it is to be held against when mounting the swivel arm. Otherwise, the lube connection would be screwed into the Runner Block with an excessive torque.
Legend
| Symbol | Description |
| m | Mass |
| Mt1 | Tightening torque |
| Mt2 | Tightening torque |
Ordering codes
Material numbers
| Part number | CAD data | Buy | Suitable for |
| R341701809 1) | Roller Runner Blocks (Generation 1 and RSHP) Ball Runner Blocks | ||
| R341704509 | Standard Roller Runner Blocks size 45 to 65 Wide Roller Runner Blocks size 65/100 | ||
| R341704409 | Standard Roller Runner Block with cover plate wiper, size 25 to 35 | ||
| R341705909 | Standard Roller Runner Blocks RSHP with scraper plate size 25 to 35 | ||
| R341702309 | Standard Roller Runner Blocks with scraper plate size 45 to 65 Standard Roller Runner Blocks with Viton or NBR wiper seal Standard Roller Runner Blocks with Viton or NBR wiper seal and scraper plate size 35 Standard Roller Runner Blocks with set of Viton seal with scraper plate size 35 | ||
| R341706009 | Standard Roller Runner Blocks RSHP with scraper plate size 35 to 65 | ||
| R341704309 | Standard Roller Runner Blocks with Viton or NBR wiper seal and scraper plate size 45 to 65 Standard Roller Runner Blocks with set of Viton seal with scraper plate size 45 to 65 | ||
| R341706109 | Standard Roller Runner Blocks RSHP with FKM seal size 25 to 65 | ||
| R341706209 | Standard Roller Runner Blocks RSHP with FKM seal set size 25 to 35 | ||
| R341706309 | Standard Roller Runner Blocks RSHP with FKM seal set size 45 to 65 |
| 1) | Side and front lubrication port (without connection elements). |
