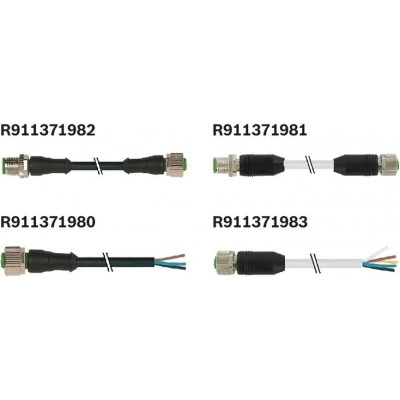

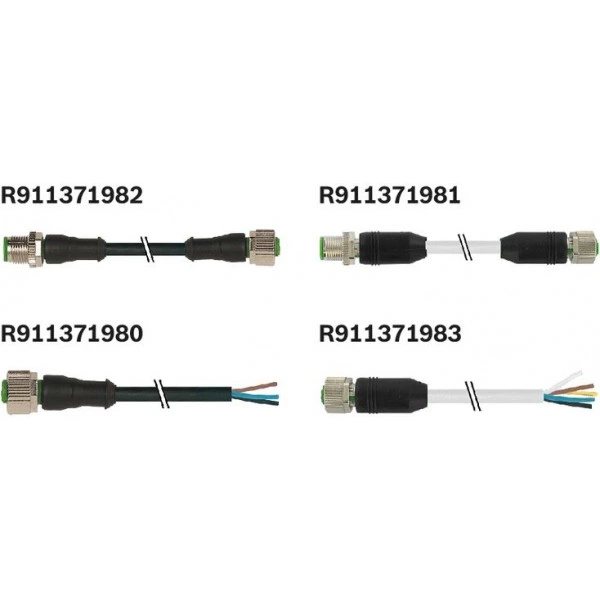

Extension pieces
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Technical data
Technische Daten
| Part number | R911371982 | R911371980 | R911371981 | R911371983 | |
| Maximum operating current per contact | A | 4 | 2 | ||
| Operating voltage | V AC/DC | 30 | |||
| Type of cable | PUR black | PUR gray | |||
| Length (L) | m | 5 | 15 | 5 | 15 |
| 1. connection type | Straight female connector, M12x1, 4-pin | Straight female connector, M12x1, 8-pin | |||
| 2. connection type | Straight plug, M12x1, 4-pin | Flying lead | Straight plug, M12x1, 8-pin | Flying lead | |
| Function indication | ‒ | ||||
| Operating voltage indicator | ‒ | ||||
| Suitable for flexing installation | ✓ | ||||
| Can withstand torsion | ✓ | ||||
| Weld spark resistant | ✓ | ||||
| Cable cross-section | mm2 | 4x0,34 | 8x0,34 | ||
| Cable diameter D | 4.7 mm ±0.2 | 6.2 mm ±0.3 | |||
| Bending radius, stationary | ≥ 5 x D | ||||
| Bending radius, flexing | ≥ 10 x D | ||||
| Bending cycles | > 10 million | ||||
| Maximum permissible travel speed | 3.3 m/s - for 5 m travel path (typ.) up to 5 m/s - for 0.9 m travel path | ||||
| Maximum permissible acceleration | m/s² | 30 | |||
| Fixed arrangement ambient temperature (min ... max) 1) | -40 °C ... +80 °C | ||||
| Flexible arrangement ambient temperature (min ... max) 1) | -25 °C ... +80 °C | ||||
| Protection type | IP67 (plugged in & screwed down) | ||||
| 1) | 90° max. 10,000 h |
Electrical connection

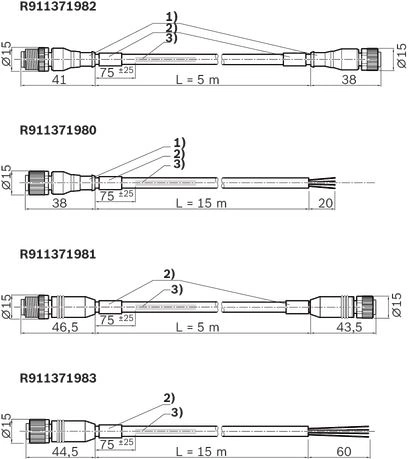

Dimensions
| 1) | Contour for corrugated tube inner diameter 10 |
| 2) | Cable grommet |
| 3) | Cable label as per ordering regulation 7000-08001 |
Certification
| Certifications and approvals |  |  |  |  |  |
Ordering codes
Material numbers
| Part number | Use | Description | Suitable for |
| R911371982 | Extension cable for passive distributor R911344592 | 7000-40021-6540500 | CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK |
| R911371980 | Extension cable for passive distributor R911344592 Extension cable for force sensor (Smart Function Kit) | 7000-12221-6541500 | CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK, Smart Function Kit |
| R911371981 | Extension cable for passive distributors R901425737 / R901429917 | 7000-48001-3770500 | CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK |
| R911371983 | Extension cable for passive distributors R901425737 / R901429917 | 7000-17041-3771500 | CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK |
