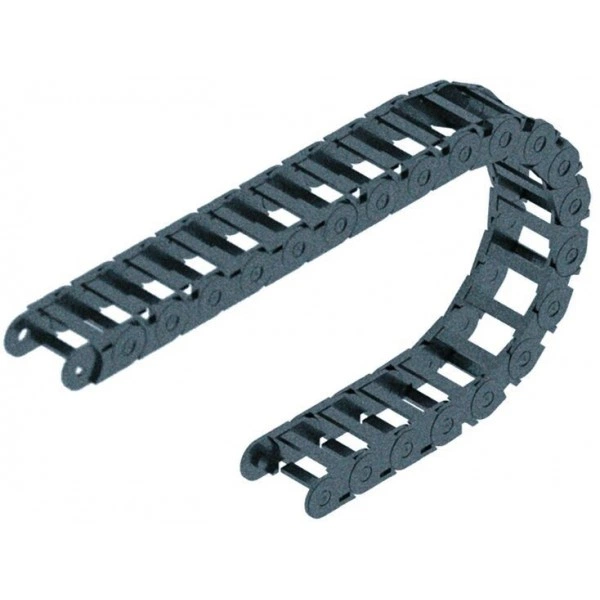

Description
Technical data
Technische Daten
| Part number | R345403079 | R345403095 | |
| Maximum permissible acceleration | m/s² | 50 | |
| Weight of chain | kg/m | 0.53 | 0.95 |
| Dead weight of the supply lines in the cable drag chain – with cooling line | kg/m | 0.6 | 0.7 1) 0.9 1) |
| Dead weight of the supply lines in the cable drag chain – without cooling line | kg/m | 0.4 | 0.5 2) 0.7 2) |
| 1) | Value 0.7 kg/m applies to TKL-275, Value 0.9 kg/m applies to TKL-325 |
| 2) | Value 0.5 kg/m applies to TKL-275, Value 0.7 kg/m applies to TKL-325 |
Diagrams/characteristic curves

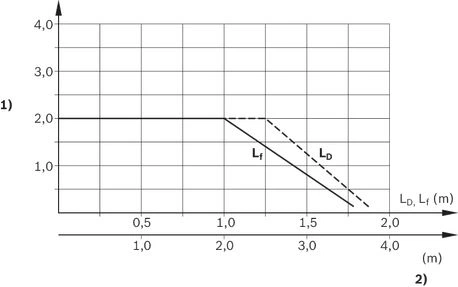

TKL-225
| 1) | Payload in the chain/m self-supporting length (kg/m) |
| 2) | Travel distance (m) |
| Lf = unsupported length | |
| LD = length with permissible sag |

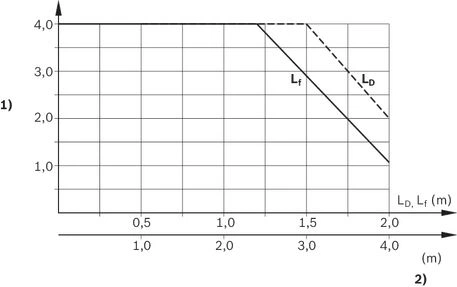

TKL-225 / TKL-325
| 1) | Payload in the chain/m self-supporting length (kg/m) |
| 2) | Travel distance (m) |
| Lf = unsupported length | |
| LD = length with permissible sag |
Dimensions
| 1) | Separators are installed at every second chain link |
| 2) | Encoder cable |
| 3) | Data cable |
| 4) | Cooling hoses |
| 5) | Motor power cable |
Installation dimensions
| Part number | R345403079 | R345403095 | |
| BK | mm | 63 | 76 |
| H | mm | 228 | 286 |
| H1 | mm | 130 | 180 1) 170 1) |
| hg | mm | 28 | 36 |
| hi | mm | 20 | 26 |
| KR | mm | 100 | 125 |
| LKU | mm | 100 2) 90 2) | 150 3) 80 3) 50 3) |
| nz | mm | 4 | |
| ST | mm | 2 | 2.5 |
| T | 34.5 nm | 45.5 mm | |
| Z | mm | 475 4) 492 4) | 610 5) 575 5) 561 5) 508 5) 466 5) |
| 1) | Value 180 mm applies to TKL-275, Value 170 mm applies to TKL-325 |
| 2) | Value 100 mm applies to TKL-225, primary part A, Value 90 mm applies to TKL-225, primary part B |
| 3) | Value 150 mm applies to TKL-275, primary part A, Value 80 mm applies to TKL-275, primary part B, Value 50 mm applies to TKL-325, primary part A |
| 4) | Value 475 mm applies to TKL-225, primary part A, Value 492 mm applies to TKL-225, primary part B |
| 5) | Value 610 mm applies to TKL-275, primary part A, Value 575 mm applies to TKL-275, primary part B, Value 561 mm applies to TKL-325, primary part A, Value 508 mm applies to TKL-325, primary part B, Value 466 mm applies to TKL-325, primary part C |
Dimensions
| Part number | b1 | b3 | Bi | BK | H | H1 | hg | hi | KR | LKU | nz | ST | T | Z |
| 1 m sections | ||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| R345403079 | 36 | 104 | 50 | 63 | 228 | 130 | 28 | 20 | 100 | 100 2) 90 2) | 4 | 2 | 34.5 nm | 475 4) 492 4) |
| R345403095 | 44 | 121 | 58 | 76 | 286 | 180 1) 170 1) | 36 | 26 | 125 | 150 3) 80 3) 50 3) | 2.5 | 45.5 mm | 610 5) 575 5) 561 5) 508 5) 466 5) |
| 1) | Value 180 mm applies to TKL-275, Value 170 mm applies to TKL-325 |
| 2) | Value 100 mm applies to TKL-225, primary part A, Value 90 mm applies to TKL-225, primary part B |
| 3) | Value 150 mm applies to TKL-275, primary part A, Value 80 mm applies to TKL-275, primary part B, Value 50 mm applies to TKL-325, primary part A |
| 4) | Value 475 mm applies to TKL-225, primary part A, Value 492 mm applies to TKL-225, primary part B |
| 5) | Value 610 mm applies to TKL-275, primary part A, Value 575 mm applies to TKL-275, primary part B, Value 561 mm applies to TKL-325, primary part A, Value 508 mm applies to TKL-325, primary part B, Value 466 mm applies to TKL-325, primary part C |
Project planning information
Number of chain links
Round up the result
| nc = number of chain links | |
| L = length of the Linear Motion System | |
| Lca = carriage length | |
| Z = measurement Z see dimensions |
Chain length
(without connectors)
| Lc = chain length | |
| T = chain pitch |
nc = 32.52, round up to 33
Lc = nc · T = 33 · 34.5 mm = 1122 mm, round up to 2000 mm = 2 pcs (m)

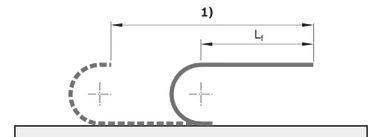

Self-supporting length Lf
| 1) | Max. travel |
Ordering codes
Material numbers
| Part number | Suitable for | Buy |
| R345403079 | TKL-225 | |
| R345403095 | TKL-275, TKL-325 |
