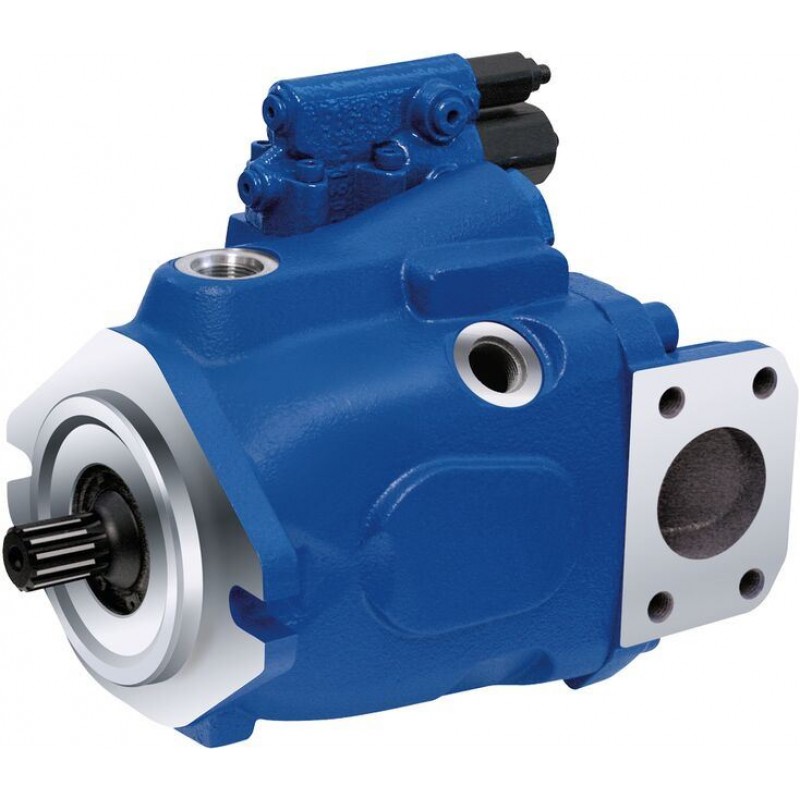

Axial piston variable pump A10VO series 5x

Name: Axial piston variable pump A10VO series 5x
Brand: Bosch Rexroth
SKU: RX7735

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

For machines with medium pressure requirements
Size 10 … 100
Nominal pressure 250 bar
Maximum pressure 315 bar
Open circuit

Features

Through drive for mounting of further pumps up to same nominal size
Approved for high speeds
Low operating noise
Controls with short response times
Large variety of controls
High power density
Swashplate design

Technical data

Table of values

Size				10	18	28	45	60	63	72	85	100
Displacement geometric, per revolution		Vg max	cm³	10.5	18	28	45	60	63	72	85	100
Nominal pressure		pnom	bar	250	250	250	250	250	250	250	250	250
Maximum pressure		pmax	bar	315	315	315	315	315	315	315	315	315
Maximum speed 1)	at Vg max	nnom	rpm	3600	3300	3000	2600	2600	2600	2600 2)	2500	2300
Flow	at Vg max and nnom	qV nom	l/min	37	59	84	117	156	163	187	212	230
Flow	at Vg max and n = 1500 rpm	qV 1500	l/min	15	27	42	68	90	95	108	128	150
Power	at qV nom and pnom	P	kW	16	25	35	49	65	68	77	89	96
Power	at qV 1500 and pnom	P 1500	kW	7	11	18	28	37	39	45	53	62
Torque	at Vg max and pnom	M	Nm	42	71	111	179	238	250	286	338	398
Weight (approx.)		m	kg	8	11.5	14	18	22	22	22	36	36

1)	These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt
2)	Please contact us regarding higher speeds

Downloads

	Axialkolben-Verstellpumpe A10VO, Baureihe 52 und 53 Data Sheet \| RD92703 \| 2020-12-07 \| German \| PDF \| 4.8MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Axial Piston Variable Pump A10VO, Series 52 and 53 Data Sheet \| RE92703 \| 2020-12-07 \| English \| PDF \| 4.8MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Axial Piston Variable Pump A10VO, Series 52/53 – Americas Data Sheet \| RE-A92703 \| 2021-01-20 \| English \| PDF \| 4.9MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit (US-Version)
	Axial Piston Pump A10VO, A10VSO, A10VNO, A10VSNO Series 52 and 53 Manual \| RE92703-01-B \| 2018-04-01 \| English \| PDF \| 1.3MB Product Groups: Pumps, Variable pumps, open circuit Operating Instructions
	Axialkolben-Verstellpumpe A10VO, A10VSO, A10VNO, A10VSNO Baureihe 52 und 53 Manual \| RD92703-01-B \| 2018-04-01 \| German \| PDF \| 1.2MB Product Groups: Pumps, Variable pumps, open circuit Betriebsanleitung
	Аксиально-поршневой регулируемый насос A10VO, A10VSO, A10VNO, A10VSNO Серия 52 и 53 Manual \| R-RS92703-01-B \| 2018-04-02 \| Russian \| PDF \| 1.2MB Product Groups: A10VO/5x Инструкция по эксплуатации
	Pompe à pistons axiaux à cylindrée variable A10VO, A10VSO, A10VNO, A10VSNO, Séries 52 et 53 Manual \| RF92703-01-B \| 2018-04-01 \| French \| PDF \| 1.2MB Product Groups: Pumps, Variable pumps, open circuit Manuel d’utilisation
	Pompe a pistoni assiali a cilindrata variabile A10VO, A10VSO, A10VNO, A10VSNO Serie 52 e 53 Manual \| RI92703-01-B \| 2018-04-01 \| Italian \| PDF \| 1.2MB Product Groups: Pumps, Variable pumps, open circuit Istruzioni d’uso
