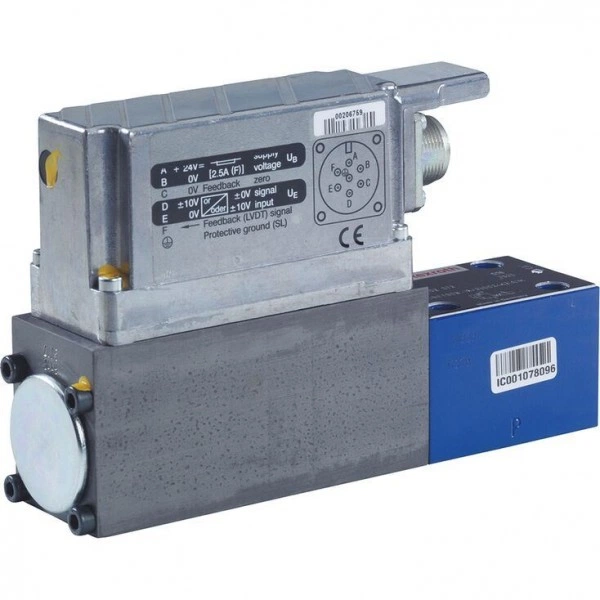

Proportional pressure relief valves, direct operated, with integrated electronics (OBE) and position feedback DBETBEX
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Size 6
- Component series 1X
- Maximum operating pressure 315 bar
- Nominal flow 1 l/min
Features
- Direct operated valve with integrated electronics and position feedback for system pressure limitation
- Adjustable via the position of the solenoid armature in relation to the compression spring
- Position-controlled, minimum hysteresis < 0.2%, short actuating time
- Maximum pressure limitation, even with defective electronics
- For subplate mounting: Porting pattern according to ISO 4401
Product description
Proportional pressure relief valves of type DBETBEX are remote control valves (pilot control valves) with poppet seat design and are used system pressure limitation. They are actuated by a position-controlled proportional solenoid. Using these valves, short actuating times with low hysteresis can be achieved.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | ||
| DBETB | E | X | – | 1X | / | G24 | K31 | M | * |
| 01 | Proportional pressure relief valve with inductive position transducer at the poppet | DBETB |
| 02 | With integrated electronics (OBE) | E |
| 03 | Porting pattern according to ISO 4401-03-02-0-05 | X |
| 04 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| Maximum pressure rating | ||
| 05 | up to 80 bar | 80 |
| up to 180 bar | 180 | |
| to 250 bar | 250 | |
| up to 315 bar | 315 | |
| Supply voltage of the control electronics | ||
| 06 | Direct voltage 24 V | G24 |
| Electrical connection | ||
| 07 | Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order | K31 |
| Control electronics interface | ||
| 08 | Command value input 0 ... +10 V | A1 |
| Command value input 4 ... 20 mA | F1 | |
| 09 | NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 | M |
| 10 | Further details in the plain text | * |
Technical data
general
| Type | DBETBEX | |
| Size | 6 | |
| Component series | 1X | |
| Weight | kg | 2.7 |
| Installation position | any | |
| Ambient temperature range | °C | -20 … +50 |
electrical
| Type | DBETBEX | |
| Duty cycle | % | 100 |
| Protection class according to DIN EN 60529 | IP65 | |
| Power supply | V | 24 |
| Supply voltage range | V | 40 … 21 |
hydraulic
| Type | DBETBEX | |||
| Maximum operating pressure | Port P | bar | 315 | |
| Port T | bar | 250 | ||
| Hydraulic fluid temperature range | °C | -20 … +70 | ||
| Hysteresis | % | ≤ 0.2 | ||
| Range of inversion | % | ≤ 0.1 | ||
Downloads
 | Proportional pressure relief valve with on-board electronics (OBE) and position feedback Type DBETBEX Data Sheet | RE29151 | 2005-07-01 | English | PDF | 275k Product Groups: Direct operated |
