Mating connectors for valves with round connector, 11-pole + PE, shielded, with assembled connection line 12P N11 +
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For valves with round connector according to EN 175201-804, 11-pole + PE
Technical data
| Short designation | 12PN11REFS | ||
| Design | no code (see unit dimensions) | ||
| Ambient temperature | fixed installation | °C | -40 … +80 |
| flexible | °C | -20 … +80 | |
| Protection class according to EN 60529 | IP65 with mating connector mounted and fitted | ||
| Number of poles | 11 + PE | ||
| Standard | DIN 43651 | ||
| Certification/conformity | RoHS | ||
| Derating | - | ||
| Connection line | F-C-PURö-JZ, coolant-resistant, Cu shielded,increased oil resistance | ||
| Wire cross-section | 12 x 0,75 mm2 | ||
| Shielding braid overlap | 85 % | ||
| Core marking | PE | green-yellow | |
| others | black wires with serial white numbers | ||
| Line diameter | mm | 10.5 | |
| Bending radius | fixed installation | min. 5 x line diameter | |
| flexible | min. 10 x line diameter | ||
| Short designation | 12PN11REFF | |||
| Design | no code (see unit dimensions) | |||
| Ambient temperature | fixed installation | °C | -40 … +80 | |
| flexible | °C | -5 … +70 | ||
| Protection class according to EN 60529 | IP65 with mating connector mounted and fitted | |||
| Number of poles | 11 + PE | |||
| Standard | DIN 43651 | |||
| Certification/conformity | - | |||
| Derating | - | |||
| Connection line | Data line: | PVC, Unitronic LiYCY, shielded, flame-resistant according to IEC 60332-1-2 | ||
| Control line | PVC, classic 110, flame-resistant according to IEC 60332-1-2 | |||
| Wire cross-section | Data line: | 10 x 0,14 mm2 | ||
| Control line | 3 x 1,0 mm2 | |||
| Core marking | PE | green-yellow | ||
| others | black wires with serial white numbers | |||
| Line diameter | Data line: | mm | 6.1 | |
| Control line | mm | 6 | ||
| Bending radius | fixed installation | min. 6 x line diameter | ||
| flexible | min. 15 x line diameter | |||
(For applications outside these values, please consult us!)
Symbols/Circuit diagrams

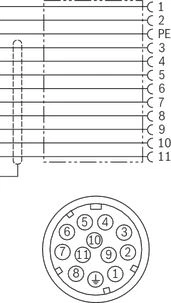

11-pole + PE, metal version, shielded

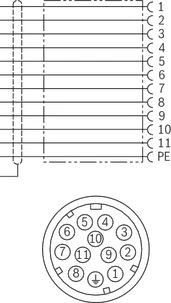

11-pole + PE, plastic version, shielded
Dimensions

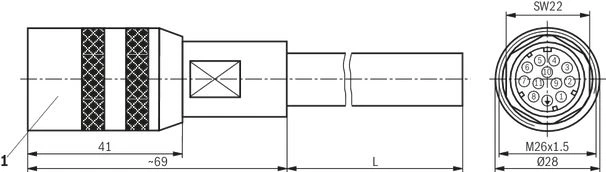

12PN11REFS
Dimensions in mm

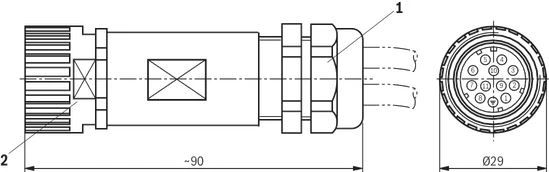

12PN11REFF
Dimensions in mm
| 1, 2 | Line fitting, tightening torque MA = 1 … 1.5 Nm |
Downloads
 | Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet | RD08006 | 2021-05-01 | German | PDF | 1.4MB Product Groups: Mating connectors and cable sets |
| Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet | RE08006 | 2021-05-01 | English | PDF | 1.5MB Product Groups: Mating connectors and cable sets |
