Артикул: RX7479

В наличии

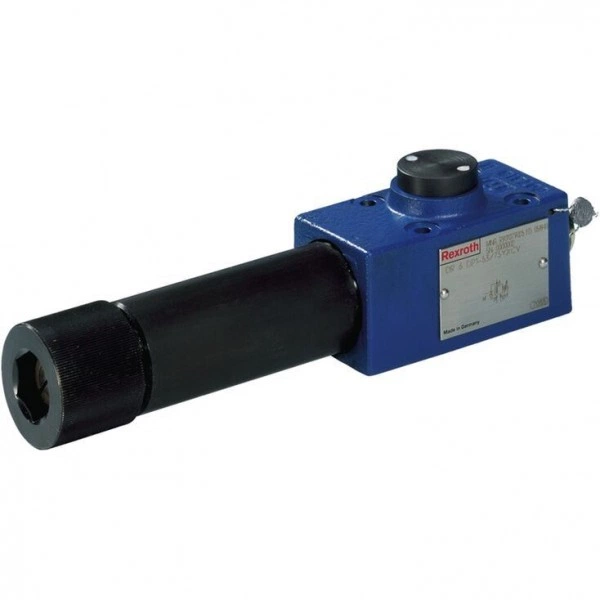

Pressure reducing valves, direct operated DR 6 DP…XC

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

  • Size 6
  • Component series 5X
  • Maximum primary operating pressure 315 bar
  • Maximum flow 60 l/min
  • Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2; II 2G
  • Type of protection of the valve solenoids: c (EN 13463-5)
  • Size 6
  • Component series 5X
  • Maximum operating pressure 315 bar
  • Maximum flow 60 l/min
  • Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2; II 2G
  • Type of protection of the valve solenoids: c (EN 13463-5)

Features

  • For subplate mounting
  • Porting pattern according to ISO 4401-03-02-0-05 (but without locating hole)
  • Check valve, optional

Product description

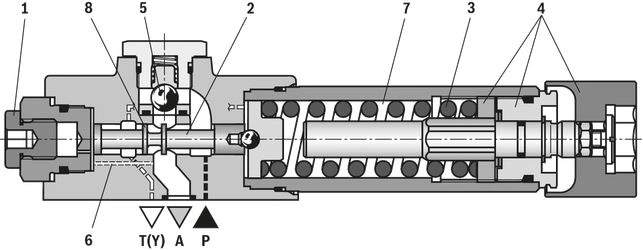

The valve type DR 6 DP...XC is a direct operated pressure reducing valve in subplate mounting design and 3-way version, i. e. with pressure limitation of the secondary circuit.

It is used to limit a system pressure.

The secondary pressure can be set via the adjustment element (4).

The valve is open in initial position. Hydraulic fluid can flow from channel P to channel A without restrictions. The pressure in channel A is simultaneously applied via the control line (6) at the piston area opposite the compression spring (3). If the pressure in channel A exceeds the value set at the compression spring (3), the control spool (2) moves to control position and keeps the set pressure in channel A at a constant level.

Control signal and pilot oil come internally via the control line (6) from channel A.

If the pressure in channel A increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).

In this way, channel A is connected to the tank via the control edge (8) at the control spool (2). So much hydraulic fluid is discharged into the tank, that the pressure can no longer increase.

The leakage oil drain from the spring chamber (7) is always effected externally via channel T (Y).

For the free flow back from channel A to channel P, a check valve (5) can optionally be installed.

A pressure gauge connection (1) allows for the control of the secondary pressure.

Type DR 6 DP1-5X/...XCYV

Type code

01

02

03

04

05

06

07

08

09

10

11

DR

6

1

–

5X

/

Y

XC

V

01

Subplate mounting

no code

02

Pressure reducing valve, direct operated

DR

03

Size 6

6

Pressure reduction in

04

Channel P

DP

Adjustment type

05

Rotary knob

1

06

Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions) – subplate mounting

5X

Maximum secondary pressure

07

25 bar

25

75 bar

75

150 bar

150

210 bar

210

315 bar1)

315

Pilot oil flow

08

Internal pilot oil supply, external leakage oil drain

Y

09

With check valve

no code

Without check valve

M

Explosion protection

10

"Structural safety", for details, please refer to the "Information on explosion protection"

XC

Seal material

11

FKM seals

V

Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

1)Without check valve "M"

Technical data

(For applications outside these values, please consult us!)

general

Size

6

Installation position

any

Ambient temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Storage temperature range

NBR seals

°C

-30 ... +80

FKM seals

°C

-20 ... +80

Weight

kg

1.2

Surface protection

Standard: Coating, layer thickness max. 100 μm

hydraulic

Size

6

Maximum primary operating pressure

bar

315

Maximum secondary pressure 1)

bar

25
75
150
210
315

Maximum counter pressure

Port T (Y)

bar

50

Maximum flow

l/min

60

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

10 … 800

Maximum admissible degree of contamination of the hydraulic fluid 2)

Class 20/18/15 according to ISO 4406 (c)
1)To avoid exceeding the maximum admissible secondary pressure, the pressure must be checked using a suitable measuring device during adjustments.
2)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP

NBR, FKM

DIN 51524

90220

Important information on hydraulic fluids:

  • For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us.
  • There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).
  • The ignition temperature of the hydraulic fluid used must be 40 K higher than the maximum surface temperature.

Information on explosion protection

Area of application according to directive 2014/34/EU

IM2, II2G

Type of protection valve

c (EN 13463-5)

Maximum surface temperature 1)

°C

125

Temperature class

T4
1)Due to the arising surface temperatures of the solenoid coils, the standards ISO 13732-1 and ISO 4413 are to be observed.

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

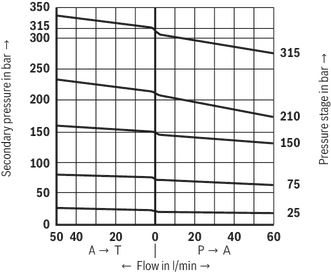

pA-qV characteristic curves

Notices:

  • The curve development is maintained according to the pressure rating if a lower pressure is set.
  • The characteristic curves for the pressure relief function apply to an output pressure = 0 over the entire flow range.

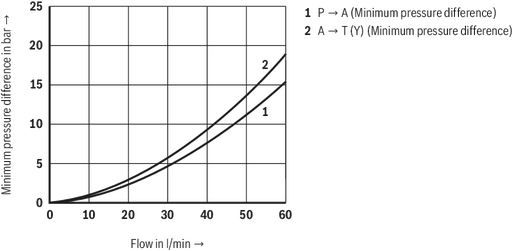

Δpmin-qV characteristic curves

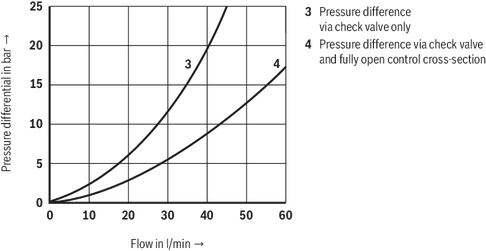

Δp-qV characteristic curves

Symbols/Circuit diagrams

Version "YM"

Version “Y”

Dimensions

load error

Downloads

Explosion-protected hydraulic products for industrial and mobile applications
Brochure | R999000373 | 2017-03-01 | English | PDF | 5.8MB

Product Groups: Pumps, CD - single rod cylinder, Proportional, high-response and servo valves, Axial piston pumps, Mobile controls
Product overview
