Артикул: RX7440

В наличии

Throttle check valve Z2FS 16

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

  • Size 16
  • Component series 3X
  • Maximum operating pressure 350 bar
  • Maximum flow 250 l/min

Features

  • Sandwich plate valve
  • Porting pattern according to ISO 4401-07-07-0-05
  • Flow limitation of 2 actuator ports
  • Adjustment type: Spindle with hexagon socket
  • Meter-in or meter-out throttling

Product description

The valve type Z2FS is a throttle check valve in sandwich plate design. It is used for the flow limitation of one or two actuator ports.

Two symmetrically arranged throttle check valves limit flows (by adjustable throttle spools) in one direction and allow free return flow in the opposite direction.

In case of supply throttling, the hydraulic fluid is directed through channel A➀ via throttling point (1) to actuator A➁. The throttle spool (2.1) can be axially adjusted via the spindle (3) for adjustment of the throttling point (1).

Simultaneously, the hydraulic fluid in channel A➀ is directed via the bore (4) to the piston side (5).

The active pressure and the spring force retain the throttle spool (2.1) in throttle position.

The hydraulic fluid return flow from actuator B➁ displaces the throttle spool (2.2) and enables the unobstructed flow as check valve. Depending on the version ("S" or "S2"), the throttling effect may occur in supply or discharge.

Flow limitation

For actuator velocity adjustment, the throttle check valve is installed between the directional valve and the subplate.

Supply throttling

➀

component side

➁

plate side

Type code

01

02

03

04

05

06

07

08

09

10

11

Z

2

FS

16

8

–

3X

/

*

01

Sandwich plate valve

Z

Number of functions

02

2 (throttling in channel A and/or B)

2

03

Throttle check valve

FS

04

Size 16

16

Functions in

05

Channel A

A

Channel B

B

Channel A and B

–

Adjustment type

06

Spindle with internal hexagon

8

07

Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)

3X

Supply throttling / discharge throttling

08

Supply throttling on side A ("…A8–3X/S")

S

Supply throttling on side B ("…B8–3X/S")

Supply throttling on side A and B ("…–8–3X/S")

Discharge throttling on side A ("…A8–3X/S2")

S2

Discharge throttling on side B ("…B8–3X/S2")

Discharge throttling on side A and B ("…–8–3X/S2")

Corrosion resistance (outside)

09

None (valve housing primed) (standard)

no code

Improved corrosion protection (240 h salt spray test according to EN ISO 9227)

J3

Seal material

10

NBR seals

no code

FKM seals

V

Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

11

Further details in the plain text

*

Preferred types and standard units are contained in the EPS (standard price list).

Technical data

general

Size

16

Weight (approx.)

kg

4.7

Installation position

any

Ambient temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

hydraulic

Size

16

Maximum operating pressure

bar

350

Maximum flow

l/min

250

Hydraulic fluid

see table

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 380

Maximum admissible degree of contamination of the hydraulic fluid 1)

Class 20/18/15 according to ISO 4406 (c)
1)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HEES 2)

FKM

ISO 15380

90221

Soluble in water

HEPG 2)

FKM

ISO 15380

Containing water

Containing water

HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) 2)

NBR

ISO 12922

upon request

Important information on hydraulic fluids:

  • Further information and information on the use of other hydraulic fluids on request!
  • There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)!
  • The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature.

Flame-resistant – containing water:

  • Maximum pressure differential 210 bar, otherwise increased cavitation
  • Pressure pre-loading at the tank port >20 % of the pressure differential; otherwise, increased cavitation
  • Life cycle compared to operation with mineral oil HL, HLP 30 to 100 %
2) Not for version "J3"

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

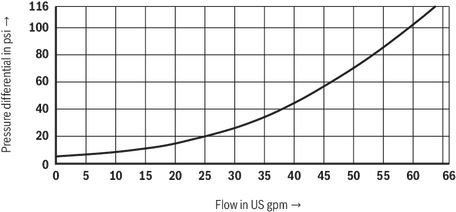

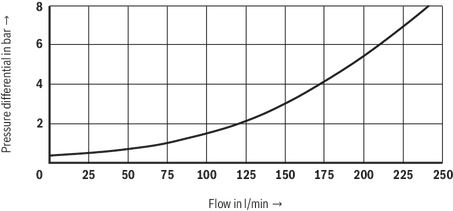

Δp-qV characteristic curves (via check valve with closed throttle)

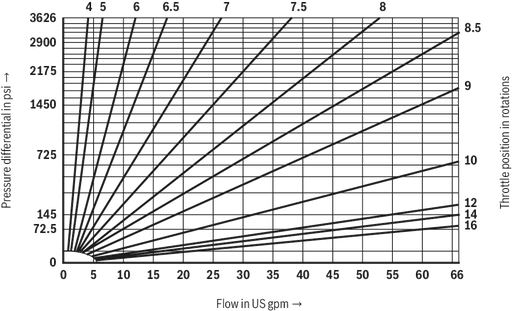

Δp-qV characteristic curves (constant throttle position)

Symbols/Circuit diagrams

Supply throttling "S"

Version "-"

Discharge throttling "S2"

Version "-"

Discharge throttling "S2"

Version "A"

Discharge throttling "S2"

Version "A"

Supply throttling "S"

Version "B"

Discharge throttling "S2"

Version "B"

➀

component side

➁

plate side

Supply throttling "S"

Version "A"

Dimensions

Dimensions in mm

Dimensions in mm

1

Name plate

2

Adjustment type "8“

Spindle for changing the flow cross-section (internal hexagon SW6)

  • Left rotation = higher flow
  • Right rotation = lower flow

3

Through holes for valve mounting

4

Identical seal rings for ports A, B, P, T

5

Identical seal rings for ports X, Y, L

6

Locking pin (included in the scope of delivery)

7

Hexagon SW19, tightening torque MA see table

8

Porting pattern according to ISO 4401-07-07-0-05

9.1

Plug screw with version "B"

9.2

Plug screw with version "A"

Version “Corrosion resistance”

L1

L2

L3

L4

L5

L6

Pos. 7 MA in Nm ±10 %

mm

mm

mm

mm

mm

mm

Nm

"no code"22424822424824629425
„J3“22725122725125230033

Valve mounting screws (separate order)

  • metric

4 hexagon socket head cap screws ISO 4762 - M10 - 10.9-flZn-240h-L

2 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L

  • UNC

4 hexagon socket head cap screws 3/8-16 UNC

2 hexagon socket head cap screws 1/4-20 UNC

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

Downloads

Throttle check valve
Data Sheet | RE27526 | 2015-01-01 | English | PDF | 309k

Product Groups: Throttle valves
Type Z2FS
