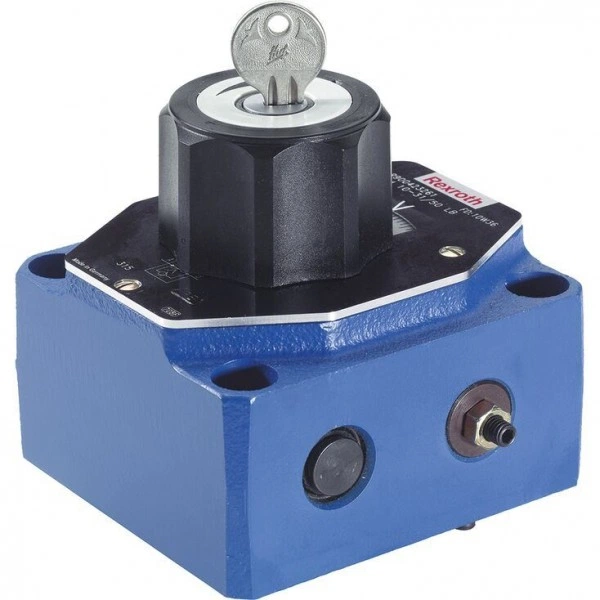

2-way flow control valves 2FRW

Description

• Size 10, 16
• Component series 3X
• Maximum operating pressure 315 bar
• Maximum flow 160 l/min

Features

• For subplate mounting
• Porting pattern according to DIN 24340 form G and ISO 6263
• Electro-hydraulic actuation
• Pressure compensator stroke limitation, optional
• Start-up jump reduction
• Stroke limitation of the geared piston drive adjustable on both sides
• Flow control in both directions through rectifier sandwich plate

Product description

Flow control valves type 2FRW are 2-way flow control valves. They are used to maintain a constant flow, mostly independent of pressure and temperature.

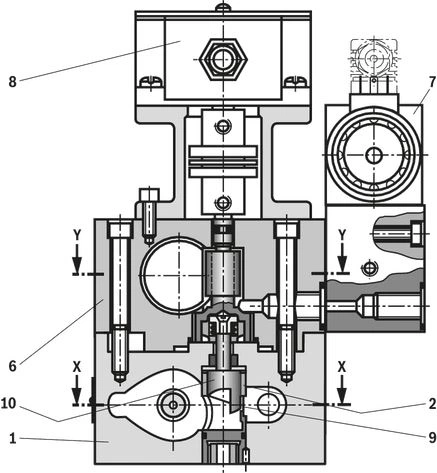

Generally, the valves consist of housing (1), orifice bush (2), pressure compensator (3) with optional stroke limitation (3.1), check valve (4) as well as geared piston drive (6), directional valve (7) and actual value potentiometer (8) at type 2FRW. The flow from channel A to channel B is throttled at the throttling point (9). At type 2FRW, the throttle cross-section is set by means of a geared piston drive (6) controlled by an integrated electrically operated directional valve (7). The positioning velocity can be set by means of the throttle check valve (6.3 and 6.4). To fix the required adjustment range, the geared piston drive (6) is equipped with an adjustable stroke limitation (6.1 and 6.2) on both sides. An upstream pressure compensator (3) is included to ensure a pressure-independent and constant flow at throttling point (9).

Temperature independence is achieved thanks to the orifice design of the throttling point.

The free return flow from channel B to channel A is directed via the check valve (4).

For permanent monitoring of the throttle orifice position, type 2FRW can be equipped with an actual value potentiometer (8). In connection with an electrical command value presetting, electrical control components are offered.

The regulated flow only flows from channel A to B.

For oscillating flows (forward and return flow), a rectifier sandwich plate type Z4S can be installed under the flow control valve.

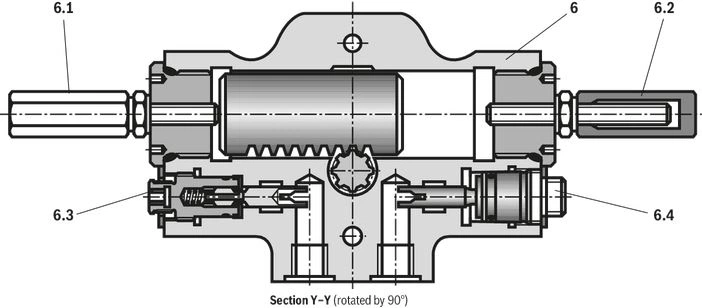

Type 2FRW...P...

Section Y–Y

(rotated by 90°)

Type code

01	2-way flow control valve	2FR
Type of actuation
02	Mechanical	M
	Hydraulic	H
	Electro-hydraulic	W
03	Size 10	10
	Size 16	16
04	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Flow range A to B
05	Size 10, linear
	Up to 10 l/min	10L
	Up to 16 l/min	16L
	Up to 25 l/min	25L
	Up to 50 l/min	50L
	Size 16, linear
	Up to 60 l/min	60L
	Up to 100 l/min	100L
	Up to 160 l/min	160L
06	Without pressure compensator stroke limitation	no code
	With pressure compensator stroke limitation	B
07	Without actual value potentiometer	no code
	With actual value potentiometer (only types 2FRH and 2FRW)	P
08	Directional spool valve NG6 (data sheet 23178)	6E1)
Symbols
09		J 1)
		Y 1)
10	Direct voltage 24 V	G241)
	Alternating voltage 230 V, 50/60 Hz	W230 1)
	For more voltages and frequencies, please refer to data sheet 23178
11	With concealed manual override (standard)	N91)
	With manual override	N 1)
	Without manual override	no code
Electrical connection
12	Individual connection
	Without mating connector; connector DIN EN 175301-803	K41; 2)
Seal material
13	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
14	Further details in the plain text	*

Preferred types and standard units are contained in the EPS (standard price list).

Technical data

general

hydraulic (correcting range)

hydraulic

electrical ‑ Actual value potentiometer

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

Flow control (A to B)

NG10

Flow control (A to B)

NG16

Free return flow (B to A)

NG10

Free return flow (B to A)

NG16

Symbols/Circuit diagrams

	Simplified	Detailed
		Symbol J 1)	Symbol Y 2)
Type 2FRW
Type 2FRW…P

Dimensions

Type 2FRW

Dimensions in mm

Subplates (separate order)

Size 10:

G 279/01 (G 1/2)

G 280/01 (G 3/4)

Size 16:

G 281/01 (G 1)

G 282/01 (G 1 1/4)

Valve mounting screws (separate order)

• Size 10:

4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

Tightening torque MA = 30 Nm ± 10 %,

Material no. R913000543

• Size 16:

4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

Tightening torque MA = 64 Nm ±10 %,

Material no. R913000496

Accessories

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

• For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
• Mating connectors for valves with one or two solenoids (individual connection)

• Data sheet

• Spare parts and repair

Downloads

2-way flow control valve Data Sheet | RE28389 | 2019-07-01 | English | PDF | 400k Product Groups: Flow control valves Type 2FRM
