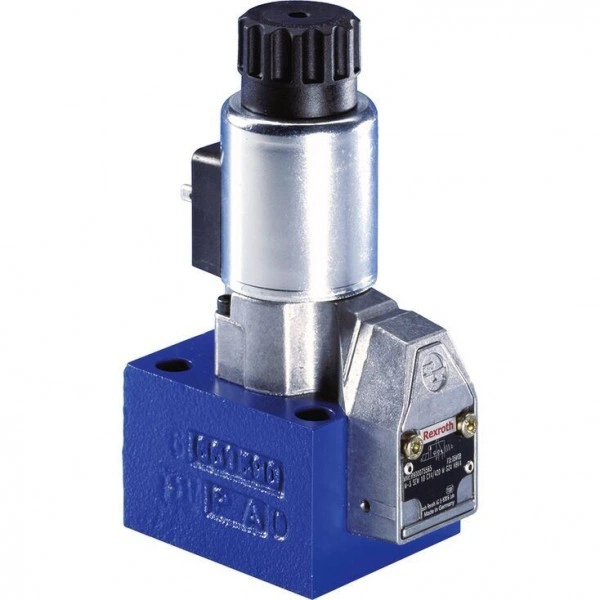

Directional poppet valves, directly operated, with solenoid actuation M-.SEW 6

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

  • Size 6
  • Component series 3X
  • Maximum operating pressure 420 / 630 bar
  • Maximum flow 25 l/min

Features

  • 2/2-, 3/2- or 4/2-way version
  • Porting pattern according to DIN 24340 form A
  • Porting pattern according to ISO 4401-03-02-0-05
  • Air-gap DC solenoids with detachable coil
  • Solenoid coil is rotatable by 90°
  • The coil can be changed without having to open the pressure-tight chamber
  • Electrical connection as individual connection
  • Optional auxiliary operating device
  • Inductive position switch and proximity sensors (contactless)

Product description

2/2 and 3/2 directional seat valve

General

The SEW type directional valve is a directional seat valve with solenoid actuation. It controls the start, stop and direction of flow.

The valve basically consists of the housing (1), the solenoid (2), the hardened valve system (3) as well as the ball/the spool (4) as closing element.

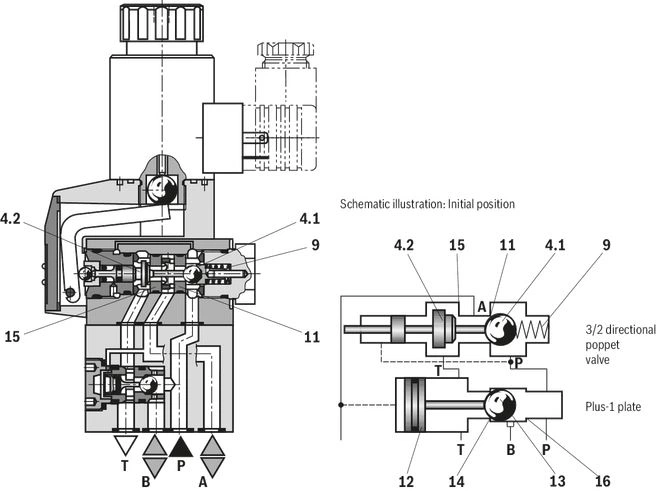

Basic principle

In the initial position, the ball/the spool (4) is pressed onto the seat by the spring (9) and by the solenoid (2) in the switching position. The force of the solenoid (2) acts via the angled lever (6) and the ball (7) on the actuating plunger (8) that is sealed on two sides. The chamber between the two sealing elements is connected to port P. Therefore, the valve system (3) is pressure-compensated in relation to the actuating forces (solenoid or return spring). Therefore, the valves can be used up to 630 bar.

Notices!

  • 3/2-directional seat valves feature "negative spool overlap". Therefore, port T must always be connected. That means that during the switching process – from the starting of the opening of one valve seat to the closing of the other valve seat – ports P–A–T are connected with each other. However, this process takes place within such a short time that it is irrelevant in nearly all cases of use.
  • The manual override (10) allows for the switching of the valve without solenoid energization.
  • It is to be ensured that the maximum flow indicated is not exceeded!If applicable, a throttle insert for flow limitation is to be inserted (see functional description).

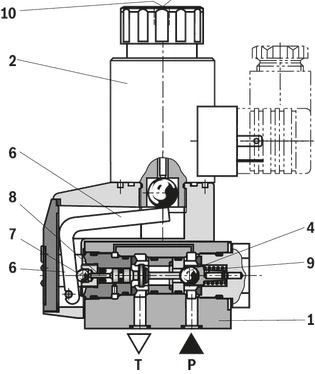

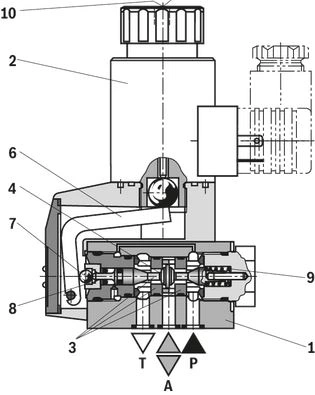

Type M-3SEW 6 U …

Type M-2SEW 6 N …

4/2 directional seat valve

With a sandwich plate, the Plus-1 plate, under the 3/2 directional seat valve, the function of a 4/2 directional seat valve is achieved.

Function of the Plus-1 plate

  • Initial position:

The main valve is not operated. The spring (9) holds the ball (4.1) on the seat (11). Port P is blocked and A is connected to T. Apart from that, one control line is connected from A to the large area of the control spool (12), which is thus unloaded to the tank. The pressure applied via P now pushes the ball (13) onto the seat (14). Now, P is connected to B, and A to T.

  • Transition position:

When the main valve is actuated, the spool (4.2) is shifted against the spring (9) and pressed onto the seat (15). During this, port T is blocked, while P, A, and B are briefly connected to each other.

  • Switching position:

P is connected to A. As the pump pressure acts via A on the large area of the control spool (12), the ball (13) is pressed onto the seat (16). Thus, B is connected to T, and P to A. The ball (13) in the Plus-1 plate has a "positive spool overlap".

Notices!

If the annulus area of differential cylinders is not connected to port A, a pressure peak is created in port B during the switching process due to the pressure intensification. This pressure peak may exceed the maximum operating pressure over the permissible limit.

Type M-4SEW 6 Y …

Throttle insert

The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve.

Examples:

  • Accumulator operation,
  • use as pilot control valve with internal pilot fluid tapping.

2/2- and 3/2 directional seat valve

The throttle insert is inserted into port P of the seat valve

.

4/2 directional seat valve (see functional description)

The throttle insert is inserted into port P of the Plus-1 plate.

Check valve insert

The check valve insert allows a free flow from P to A and closes A to P in a leak-free form.

2/2- and 3/2 directional seat valve (see functional description)

The check valve insert is inserted into port P of the seat valve.

4/2 directional seat valve (see functional description)

The check valve insert is inserted into port P of the Plus-1 plate.

Type code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

M

SEW

6

3X

/

M

K4

/

*

01

Mineral oil

M

02

2 main ports

2

3 main ports

3

4 main ports

4

03

Seat valve, direct operated

SEW

04

Size 6

6

05

Symbols

Main ports

● = available

2

3

4

P

N

U

C

D

Y

06

Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)

3X

07

Operating pressure 420 bar

420 bar

Operating pressure 630 bar

630 bar

08

High-power solenoid (air-gap) with detachable coil

M

09

Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G96

Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %)

G110

Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G205

Connection to the AC voltage mains via control with rectifier. Further ordering codes for other voltages are provided in the Technical data

10

With concealed manual override (standard)

N9

Without manual override

no code

Electrical connection

11

Individual connection

Without mating connector; connector DIN EN 175301-803

K41)

Spool position monitoring

12

Without position switch

no code

Inductive position switch type QM

Monitored spool position "a"

QMAG24 2)

Monitored spool position "b"

QMBG25 2)

13

Without check valve insert, without throttle insert

no code

With check valve insert

P

Throttle Ø 1.2 mm

B12

Throttle Ø 1.5 mm

B15

Throttle Ø 1.8 mm

B18

Throttle Ø 2.0 mm

B20

Throttle Ø 2.2 mm

B22

Other orifices on request

Seal material

14

NBR seals

no code

FKM seals

V

Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

15

Without locating hole

no code

With locating hole and locking pin ISO 8752-3x8-St

/62

16

Further details in the plain text

*

1) Mating connectors, separate order.

2) Version “420” only

Notice!

For other types of actuation (e.g. pneumatic, hydraulic, rotary knob, rotary knob with lock, stylus, touching lever, roller actuation), see data sheet 22340 or contact us!

Technical data

general

Size

6

Weight

2/2 directional seat valve

kg

1.5

3/2 directional seat valve

kg

1.5

4/2 directional seat valve

kg

2.3

Installation position

any

Ambient temperature range

NBR seals

°C

-30 … +50

FKM seals

°C

-20 … +50

hydraulic

Size

6

Maximum operating pressure

Port P

bar

420
630

Port A

bar

420
630

Port B

bar

420
630

Maximum flow

l/min

25

Hydraulic fluid

see table

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 500

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 20/18/15 according to ISO 4406 (c)
1)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

Bio-degradable

Insoluble in water

HETG

NBR, FKM

VDMA 24568

HEES

FKM

Soluble in water

HEPG

FKM

VDMA 24568

Containing water

Water-free

HFDU, HFDR

FKM

ISO 12922

Containing water

HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)

NBR, HNBR

ISO 12922

Important information on hydraulic fluids!

  • For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us!
  • There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)!
  • The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature.

Flame-resistant – containing water:

  • Maximum pressure differential per control edge 50 bar.
  • Pressure pre-loading at the tank port >20% of the pressure differential; otherwise, increased cavitation
  • Life cycle compared to operation with mineral oil HL, HLP 50 to 100%

electrical

Voltage type

Direct voltageAC voltage

Available voltages

V

12 / 24 / 42 / 96 / 110 / 205 / 220 1)110 / 120 / 230

Voltage tolerance (nominal voltage)

%

± 10

Power consumption

W

30

Duty cycle

%

100

Switching time according to ISO 6403

ON (without rectifier)

ms

25 … 40

ON (with rectifier)

ms

30 … 55

OFF (without rectifier)

ms

10 … 15

OFF (with rectifier)

ms

35 … 55

Maximum switching frequency

Operating pressure ≤350 bar

1/h

15000

Operating pressure >350 bar

1/h

3600

Protection class according to EN 60529

IP65 (If a suitable and a correctly mounted mating connector are used.)

Maximum surface temperature of the coil 2)

°C

120
1)Special voltages available upon request
2)Surface temperature > 50 °C, provide contact protection.

In the electrical connection, the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

Inductive position switch type QM: electrical connection

electrical

Connection voltage (DC voltage)

V

24

Voltage tolerance (connection voltage)

+30 %/-15 %

Admissible residual ripple

%

≤ 10

Max. load capacity

mA

400

Switching outputs

PNP transistor outputs, load between switching outputs and GND

Pinout

1

V

24

2, 4

Switching output

mA

400

3

Earthing (GND)

V

0

The electric connection is realized via a 4-pole mating connector (separate order) with connection thread M12 x 1.

M12x1 plug-in connection

electrical

High-performance versionReduced power consumption “SO407”

M12x1 plug-in connections 1)

K72L

Available voltages 2)

V

24

Limited switch-off voltage peak

V

-44 … -55

Voltage tolerance (nominal voltage)

%

± 10

Power consumption

W

308

Duty cycle

%

100

Switching time according to ISO 6403

ON (without rectifier)

ms

25 … 40-

ON (with rectifier)

ms

30 … 55-

ON (spool symbol “C”)

ms

-50

ON (spool symbol “U”)

ms

-55

OFF (without rectifier)

ms

10 … 15-

OFF (with rectifier)

ms

35 … 55-

OFF (spool symbol “C”)

ms

-50

OFF (spool symbol “U”)

ms

-15

Maximum switching frequency

Standard

1/h

150007200

Protection class according to EN 60529 3)

IP40

Protection class according to DIN EN 61140

III

Maximum coil temperature

°C

150 4)110 5)
1)Mating connectors according to IEC 60947-5-2, separate order, see data sheet 08006
2)Connection to functional low voltage with secure separation only = PELV/SELV
3)Only with the use of the mating connectors indicated by us and with correct installation.
4)Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!
5)Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑoil = 40 ±5 °C)

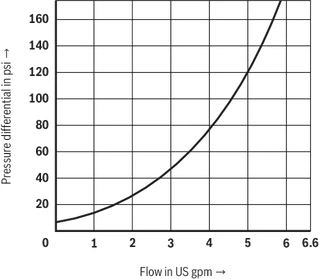

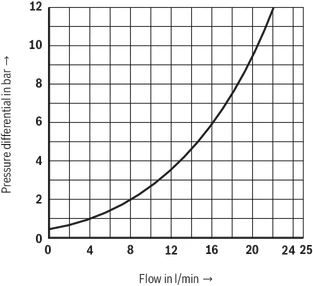

Δp-qV characteristic curves ‒ Check valve insert

Δp-qV characteristic curves ‒ Check valve insert

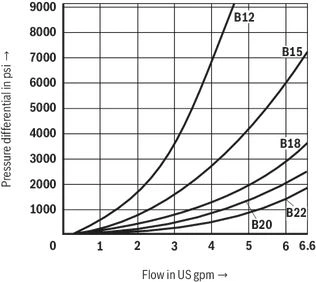

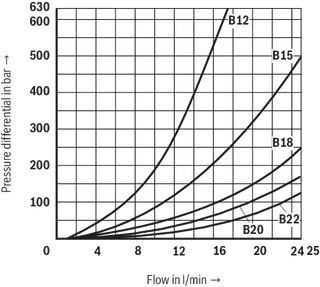

Δp-qV characteristic curves ‒ throttle insert

Δp-qV characteristic curves ‒ throttle insert

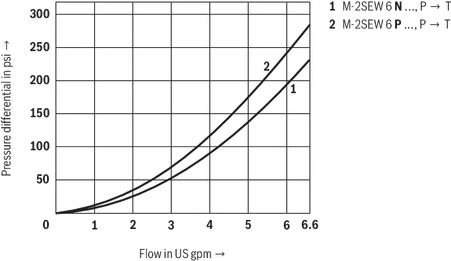

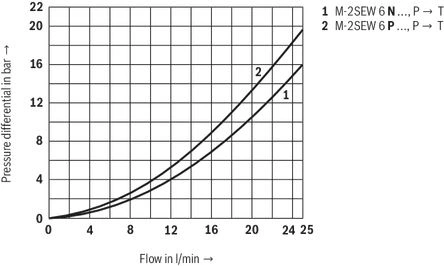

Δp-qV characteristic curves ‒ 2/2 directional seat valve

Δp-qV characteristic curves ‒ 2/2 directional seat valve

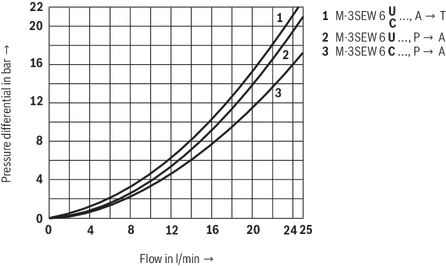

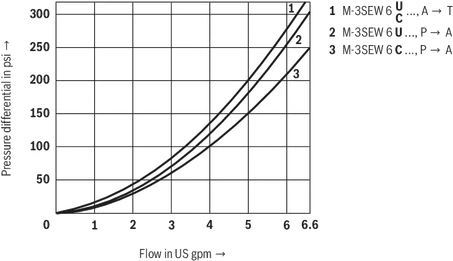

Δp-qV characteristic curves, 2/3 directional seat valve

Δp-qV characteristic curves ‒ 3/2 directional seat valve

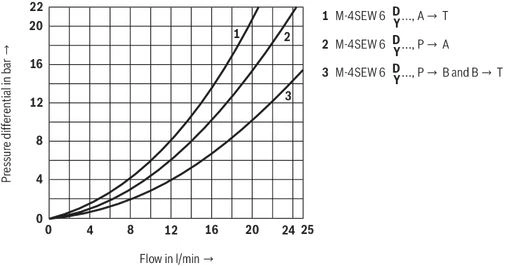

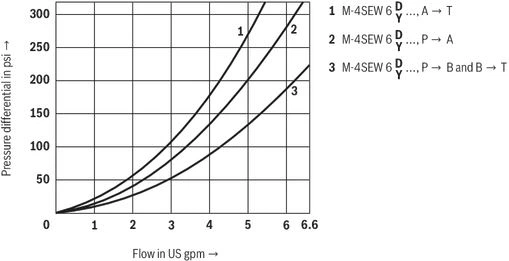

Δp-qV characteristic curves ‒ 4/2 directional seat valve

Δp-qV characteristic curves ‒ 4/2 directional seat valve

Symbols/Circuit diagrams

2/2 directional seat valve

P

N

3/2 directional seat valve

U

C

4/2 directional seat valve

D

Y

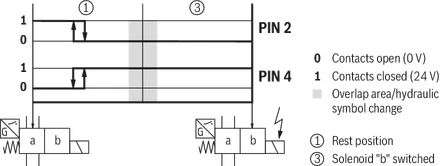

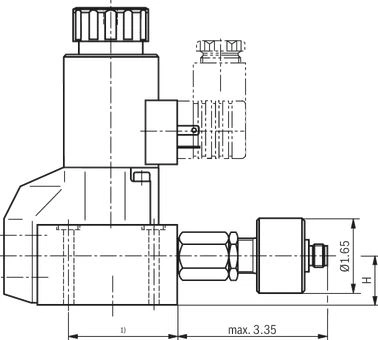

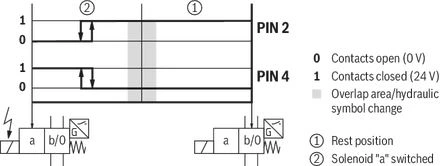

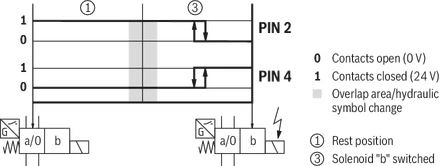

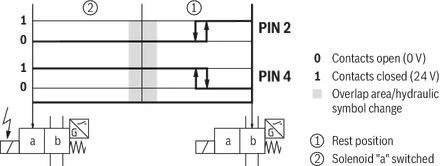

Inductive position switch type QM Switching logics

Version QMA

Position switch on side B, monitored spool position "a"

Version QMA

Position switch on side A, monitored spool position "a"

Version QMB

Position switch on side B, monitored spool position "b"

Version QMB

Position switch on side A, monitored spool position "b"

Performance limit (measured with HLP46, ϑoil = 40 ±5 °C)

Symbol

Comment

2/2-way circuit (2/2 directional seat valve)

P

pp ≥ pT

N

2/2-way circuit (3/2 directional seat valve) as unloading function only

U

Before switching from the initial position to the switching position, pressure must be applied to port A. pApT

C

pA≥ pT

3-way circuit

U

pp ≥ pA ≥ pT

C

4-way circuit (flow only possible in the direction of arrow)

D

3/2 directional valve (symbol “U”) in connection with Plus-1 plate: pP> pApB >pT

Y

3/2 directional valve (symbol “C”) in connection with Plus-1 plate: pP >pApB >pT

Notices!

  • Please observe the “General notices” on page 14!
  • The performance limit was determined when the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.

Electrical connection

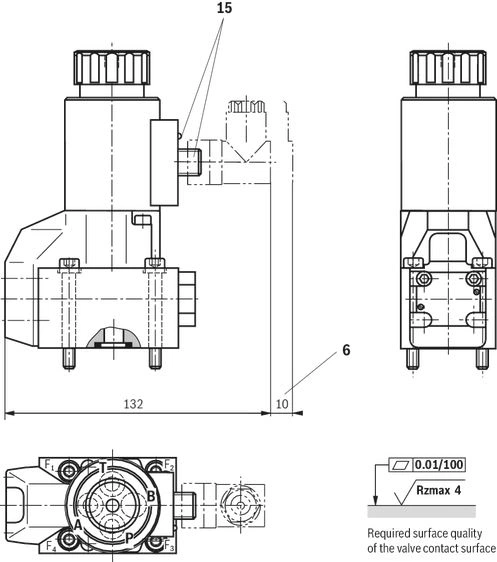

M12x1 plug-in connection ‒ Individual connection – “K72L”

Pin 5 without function

Dimensions

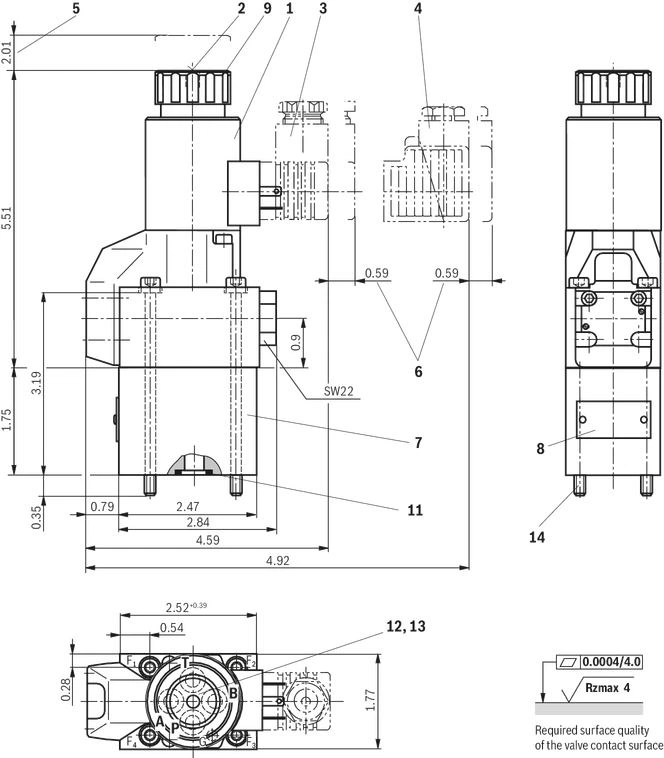

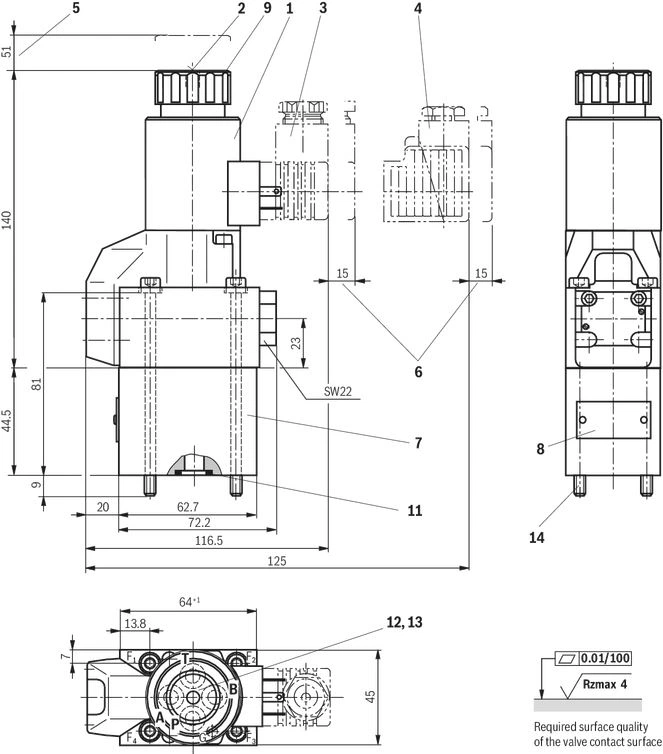

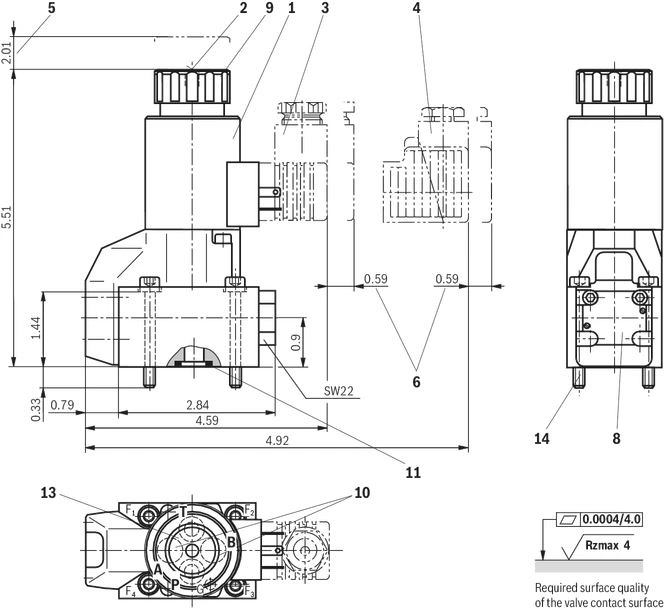

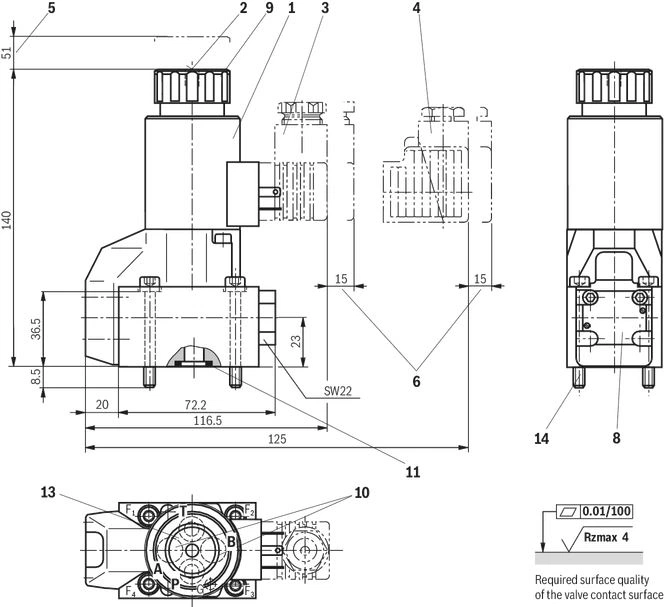

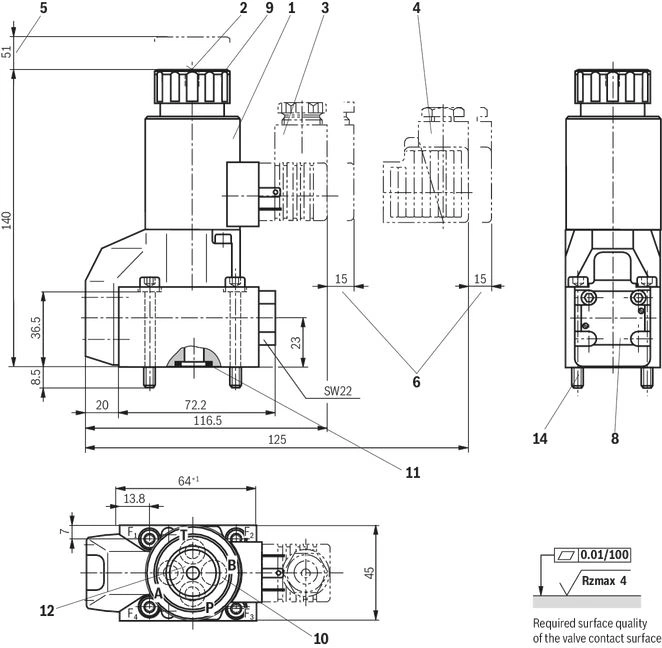

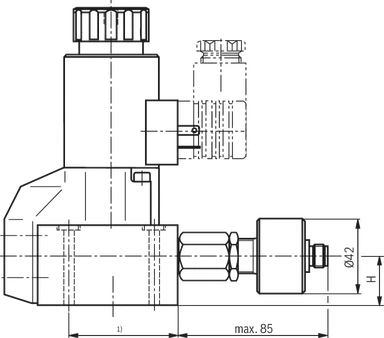

2/2 directional seat valve

Dimensions in mm

2/2 directional seat valve

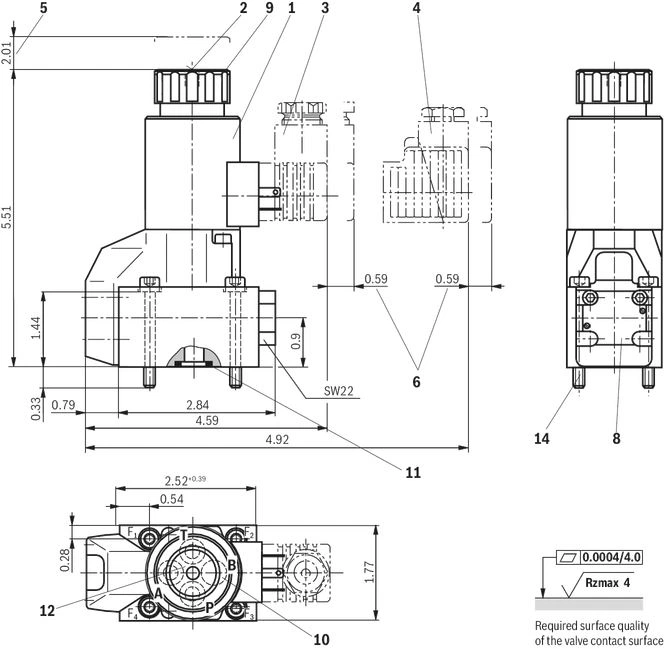

Dimensions in mm

1

Solenoid “a”

2

Concealed manual override “N9”

3

Mating connector without circuitry (separate order)

4

Mating connector without circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

8

Name plate

9

Mounting nut, tightening torque MA = 4 Nm

10

  • With 3/2 directional seat valves version "420", port B is designed as blind counterbore, in version "630", it is not available.
  • With 2/2 directional seat valves version "420", ports A and B are available as blind counterbores.

11

Identical seal rings for ports A, B, and T; seal ring for port P

13

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

14

Valve mounting screws

3/2 directional seat valve

Dimensions in mm

3/2 directional seat valve

Dimensions in mm

1

Solenoid “a”

2

Concealed manual override “N9”

3

Mating connector without circuitry (separate order)

4

Mating connector without circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

8

Name plate

9

Mounting nut, tightening torque MA = 4 Nm

10

  • With 3/2 directional seat valves version "420", port B is designed as blind counterbore, in version "630", it is not available.
  • With 2/2 directional seat valves version "420", ports A and B are available as blind counterbores.

11

Identical seal rings for ports A, B, and T; seal ring for port P

12

Porting pattern according to DIN 24340, form A

14

Valve mounting screws

4/2 directional seat valve

Dimensions in mm

4/2 directional seat valve

Dimensions in mm

1

Solenoid “a”

2

Concealed manual override “N9”

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order, see page data separate order, see data sheet 08006)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Plus-1 plate

8

Name plate

9

Mounting nut, tightening torque MA = 4 Nm

11

Identical seal rings for ports A, B, and T; seal ring for port P

12

Porting pattern according to DIN 24340, form A

13

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

14

Valve mounting screws

Valve mounting screws (separate order)

2/2 and 3/2 directional seat valve

  • Version “420”:

4 hexagon socket head cap screws metric

ISO 4762 - M5 x 45 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000140

or

4 hexagon socket head cap screws

ISO 4762 - M5 x 45 - 10.9 1)

(friction coefficient μges = 0.12 to 0.17);

tightening torque MA = 8,1 Nm ± 10 %

4 hexagon socket head cap screws UNC

10-24 UNC x 1 3/4” ASTM-574 1)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978802649

  • version “630”:

4 hexagon socket head cap screws metric

ISO 4762 - M6 x 45 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 12,5 Nm ± 10 %,

material no. metric R913000258

or

4 hexagon socket head cap screws

ISO 4762 - M6 x 45 - 10.9 1)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 15,5 Nm ± 10 %

4 hexagon socket head cap screws UNC

1/4-20 UNC x 1 3/4” ASTM-574 1)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 20 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 14 Nm ± 10 %,

material no. R978800711

4/2 directional seat valve

  • version “420”:

4 hexagon socket head cap screws metric

ISO 4762 - M5 x 90 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000222

oder

4 hexagon socket head cap screws

ISO 4762 - M5 x 90 - 10.9 1)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8,1 Nm ± 10 %

4 hexagon socket head cap screws UNC

10-24 UNC x 3 1/2” 1)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nmv± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978800696

  • version “630”:

4 hexagon socket head cap screws metric

ISO 4762 - M6 x 90 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 12,5 Nm ± 10 %,

material no. R913000259

or

4 hexagon socket head cap screws

ISO 4762 - M6 x 90 - 10.9 1)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 15,5 Nm ± 10 %

4 hexagon socket head cap screws UNC

1/4-20 UNC x 3 1/2” 1)

(friction coefficient μtotal = 0.19 to 0.24);

tightening torque MA = 20 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 14 Nm ± 10 %,

material no. R978800717

1) Not included in the Rexroth delivery range

Spool position monitoring

Size

H

mm

623
1032.5

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

M12x1 plug-in connection

Dimensions in mm

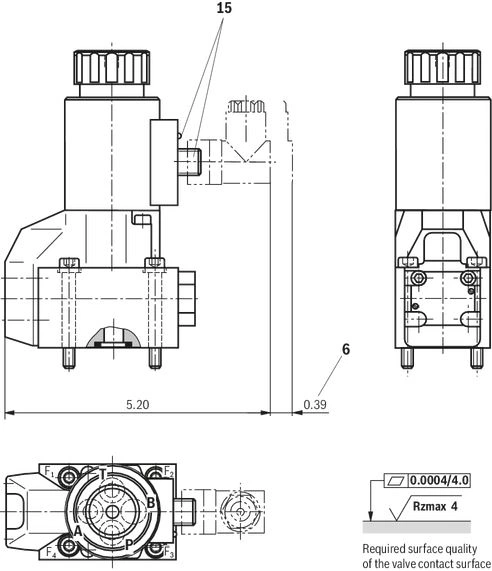

Type M-.SEW 6 .-3X/420MG24.K72L…

Dimensions in mm

Dimensions in mm

Inductive position switch type QM

Dimensions in mm

1)For dimensions, see valve dimensions

Information

Seat valves can be used according to the spool symbols as well as the assigned operating pressures and flows (see performance limits).

In order to ensure a safe functioning, it is absolutely necessary to observe the following:

  • In order to switch the valve safely and/or maintain it in its spool position, the pressure must be pP ≥ pA ≥ pT (for design reasons).
  • Seat valves have a negative spool overlap, i.e. leakage oil occurs during the switching process. However, this process takes place within such a short time that it is irrelevant in nearly all cases of use.
  • The specified maximum flow must not be exceeded (use a throttle insert for flow limitation, if necessary)!

Plus-1 plate:

  • When using the Plus-1 plate (4/2 directional function), the following lower operating values are to be observed: pmin = 8 bar; qV > 3 l/min.
  • The ports P, A, B and T are clearly specified according to their tasks. They must not be arbitrarily exchanged or closed!
  • With 3- and 4-way spool position, port T must always be connected.
  • Observe the pressure level and pressure distribution!
  • The flow is only admissible in the direction of arrow!

Downloads

Hydraulic valves and hydroelectric pressure switches for industrial applications
Manual | RE07600-B | 2021-06-21 | English | PDF | 306k

Product Groups: Industrial Hydraulics
On/off, proportional, high-response and servo valves, pressure switches
Directional seat valves, direct operated, with solenoid actuation
Data Sheet | RE22058 | 2013-06-01 | English | PDF | 728k

Product Groups: Direct operated
Type SEW
Directional seat valves, direct operated, with solenoid actuation
Data Sheet | RE22058-XE | 2021-01-01 | English | PDF | 1.1MB

Product Groups: Directional seat valves
Type SEW …XE

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosch Rexroth A4FO: надежность в условиях высокого давления

Гидравлическое оборудование остается важной частью современных промышленных и строительных систем. Аксиально-поршневой насос Bosch Rexroth A4FO демонстрирует, как сочетание универсальности, долговечности и инженерной точности помогает решать сложные задачи, связанные с подачей гидравлической жидкост..

17 Января, 2025
Bosh Rexroth: Эффективность и надежность в одном решении

Синхронные моментные двигатели MBT130, представляющие серию MST130+MRT130 от Bosh Rexroth, выделяются рядом особенностей, которые могут быть важны для самых различных применений в автоматизации и промышленности. Кратко о характеристиках: - Максимальный крутящий момент до 180 Нм, что позвол..

14 Декабря, 2024
Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024
Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024
Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024
Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024
Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024
Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024
Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024
Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024
Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
