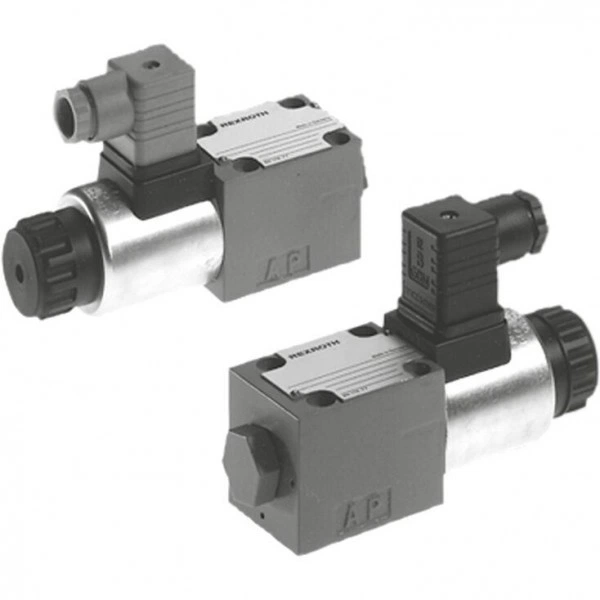

2/2, 3/2 and 4/2 directional seat valve with solenoid actuation M-.SED6

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

  • Size 6
  • Component series 1X
  • Maximum operating pressure 350 bar
  • Maximum flow 25 l/min

Features

  • Direct operated directional seat valve with solenoid actuation
  • Porting pattern according to DIN 24340 form A (without locating hole)
  • Porting pattern according to ISO 4401-03-02-0-05 (with locating hole)
  • Safe switching also with longer standstill periods under pressure
  • Wet-pin DC solenoids with detachable coil (AC voltage possible by means of a rectifier)
  • Solenoid coil is rotatable by 90°
  • The coil can be changed without having to open the pressure-tight chamber
  • Electrical connection as individual connection
  • With concealed manual override, optional
  • Inductive position switch (contactless)

Product description

4/2 directional seat valve

2/2 and 3/2 directional seat valve

General

The directional valve of the type M-.SED is a direct operated directional seat valve with solenoid actuation. It controls the start, stop and direction of flow and mainly consists of a housing (1), the solenoid (2), the valve seats (7) and (11) as well as of the closing element (4).

The manual override (6) allows for the switching of the valve without solenoid energization.

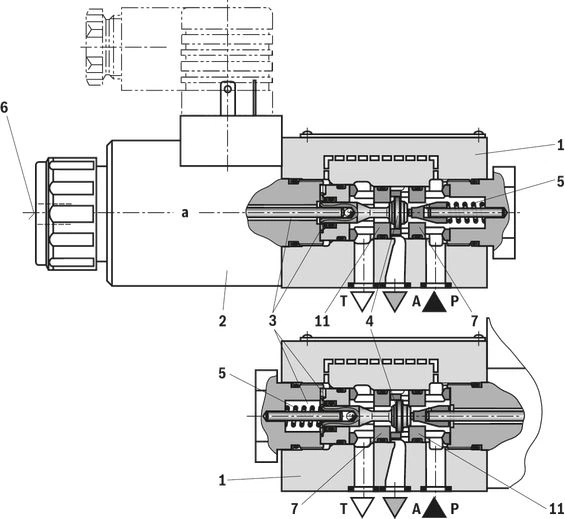

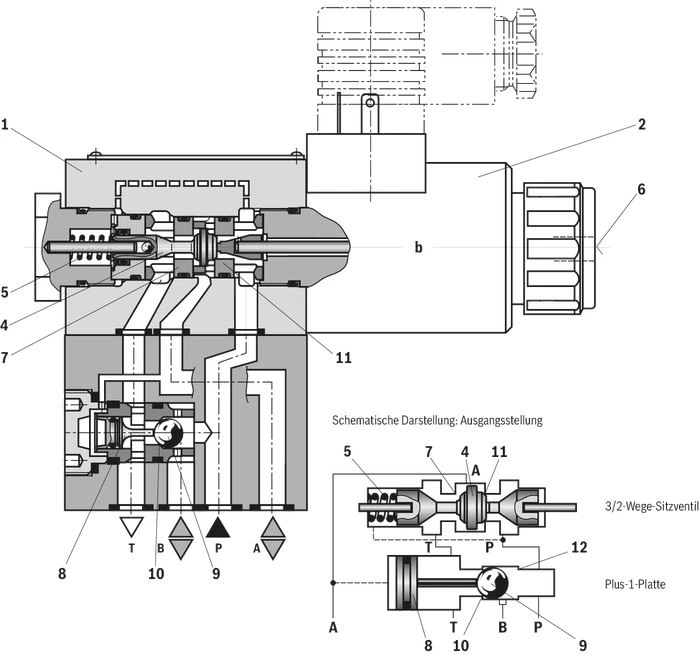

Basic principle (3/2 directional seat valve)

The initial position of the valve (normally open "UK" or normally closed "CK") is determined by the arrangement of the spring (5). The chamber (3) behind the closing element (4) is connected to port P and sealed against port T. Thus, the valve is pressure-compensated in relation to the actuating forces (solenoid and spring).

With the special closing element (4), ports P, A and T can be loaded with the maximum operating pressure (350 bar) and the flow can be directed into both directions (see symbols)!

In the initial position, the closing element (4) is pressed onto the seat (11) by the spring (5), in spool position, it is pressed onto the seat (7) by the solenoid (2). The flow is blocked.

With the 2/2 directional seat valve, the tank port is internally closed.

2/2 directional seat valve

3/3 directional seat valve

„PK“

„UK“

„NK“

„CK“

Type M-3SED 6 UK1X/350CG24N9K4 (top) / type M-3SED 6 CK1X/350CG24N9K4 (bottom)

4/2 directional seat valve

2/2 and 3/2 directional seat valve

With a sandwich plate, the Plus-1 plate, under the 3/2 directional seat valve, the function of a 4/2 directional seat valve is achieved.

Function of the Plus-1 plate

  • Initial position:

The main valve is not operated. The spring (5) holds the closing element (4) on the seat (11). Port P is blocked and A is connected to T. A control line is connected from A to the large area of the control spool (8), which is thus unloaded to the tank. The pressure applied via P now pushes the ball (9) onto the seat (10). Thus, P is connected to B and A is connected to T.

  • Transition position:

Upon actuation of the main valve, the closing element (4) is shifted against the spring (5) and pressed onto the seat (7). During this, port T is blocked, while P, A, and B are briefly connected to each other.

  • Switching position:

P is connected to A. Since the pump pressure acts via A on the large area of the control spool (8), the ball (9) is pressed onto the seat (12). Thus, B is connected to T, and P to A. The ball (9) in the Plus-1 plate has a “positive spool overlap”.

Attention!

In order to avoid pressure intensification when using differential cylinders, the annulus area of the cylinder must be connected at A.

The use of the Plus-1 plate and the seat arrangement offer the following options:

Symbol “D”

Symbol “Y”

Type M-4SED 6 Y1X/350CG24N9K4

Throttle insert

The use of a throttle insert is required if, due to prevailing operating conditions, flows which exceed the performance limit of the valve can occur during the switching processes.

Examples:

  • Accumulator operation,
  • use as pilot control valve with internal pilot fluid tapping.

2/2 and 3/2 directional seat valve

The throttle insert is inserted into port P of the seat valve.

4/2 directional seat valve

The throttle insert is inserted into port P of the Plus-1 plate

Check valve insert

The check valve insert allows a free flow from P to A and closes A to P in a leak-free form.

2/2 and 3/2 directional seat valve

The check valve insert is inserted into port P of the seat valve.

4/2 directional seat valve

The check valve insert is inserted into port P of the Plus-1 plate.

Type code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

M

SED

6

1X

/

350

C

K4

/

*

01

Mineral oil

M

02

2 main ports

2

3 main ports

3

4 main ports

4

03

Seat valve

SED

04

Size 6

6

05

Main ports

2

3

4

Symbols

PK

NK

UK

CK

D

Y

● = available

06

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

07

Operating pressure up to 350 bar

350 bar

08

Solenoid, wet-pin, with detachable coil

C

09

Direct voltage 24 V

G24

Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G2051)

Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)

G96

Further ordering codes for other voltages are provided in the technical data

10

With concealed manual override

N9

Without manual override

no code

Electrical connection

11

Individual connection

without mating connector, individual connection with connector according to DIN EN 175301-803

K4 2)

With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED

K72L3)

Spool position monitoring

12

Without position switch

no code

Monitored spool position "a"

QMAG24

Monitored spool position "b"

QMBG24

13

Without check valve insert, without throttle insert

no code

With check valve insert

P

Throttle Ø 1.2 mm

B12

Throttle Ø 1.5 mm

B15

Throttle Ø 1.8 mm

B18

Throttle Ø 2.0 mm

B20

Throttle Ø 2.2 mm

B22

14

NBR seals

no code

FKM seals (other seals upon request)

V

Observe compatibility of seals with hydraulic fluid used.

15

Without locating hole

no code

With locating hole and locking pin ISO 8752-3x8-St

/62

16

Further details in the plain text

*

1) For the connection to the AC voltage mains, a DC solenoid must be used, which is controlled via a rectifier (see AC voltage mains table).
A mating connector with integrated rectifier can be used (separate order).
2) Mating connectors, separate order.
3) Version “G24” only, see data sheet 12345

Preferred types and standard units are contained in the EPS (standard price list).

Technical data

general

Size

6

Weight

2/2 directional seat valve

kg

1.5

3/2 directional seat valve

kg

1.5

4/3 directional seat valve

kg

2.3

Installation position

any

Ambient temperature range

NBR seals

°C

-30 … +50

FKM seals

°C

-20 … +50

hydraulic

Size

6

Maximum operating pressure

Port P

bar

350

Port A

bar

350

Port B

bar

350

Maximum flow

l/min

25

Hydraulic fluid

see table

Hydraulic fluid temperature range

NBR seals

°C

-30 … +80

FKM seals

°C

-20 … +80

Viscosity range

mm²/s

2.8 … 500

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 20/18/15 according to ISO 4406 (c)
1)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

electrical

Voltage type

Direct voltageAC voltage

Available voltages 1)

V

12 / 24 / 42 / 96 / 110 / 205 / 220110 / 120 / 230

Voltage tolerance (nominal voltage)

%

± 10

Power consumption

W

30

Duty cycle

%

100

Switching time according to ISO 6403

ON

ms

40 … 70

OFF (without rectifier)

ms

10 … 20

OFF (with rectifier)

ms

30 … 45

Maximum switching frequency

Operating pressure ≤350 bar

1/h

15000

Operating pressure >350 bar

1/h

3600

Protection class according to EN 60529

IP65 (If a suitable and a correctly mounted mating connector are used.)

Maximum surface temperature of the coil 2)

°C

120
1)Special voltages available upon request
2)Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

The electric connection is realized via a 4-pole mating connector (separate order) with connection thread M12 x 1.

electrical

Connection voltage (DC voltage)

V

24

Voltage tolerance (connection voltage)

+30 %/-15 %

Admissible residual ripple

%

≤ 10

Max. load capacity

mA

400

Switching outputs

PNP transistor outputs, load between switching outputs and GND

Pinout

1

V

24

2, 4

Switching output

mA

400

3

Earthing (GND)

V

0

M12x1 plug-in connection

electrical

M12x1 plug-in connections 1)

K72L

Available voltages 2)

V

24

Limited switch-off voltage peak

V

-44 … -55

Voltage tolerance (nominal voltage)

%

± 10

Power consumption

W

30

Duty cycle

%

100

Switching time according to ISO 6403

ON

ms

40 … 70

OFF (without rectifier)

ms

10 … 20

OFF (with rectifier)

ms

30 … 45

Maximum switching frequency

Standard

1/h

15000

Protection class according to EN 60529 3)

IP65

Protection class according to DIN EN 61140

III

Maximum coil temperature 4)

°C

150
1)Mating connectors according to IEC 60947-5-2, separate order, see data sheet 08006
2)Connection to functional low voltage with secure separation only = PELV/SELV
3)Only with the use of the mating connectors indicated by us and with correct installation.
4)Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

In the electrical connection, the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

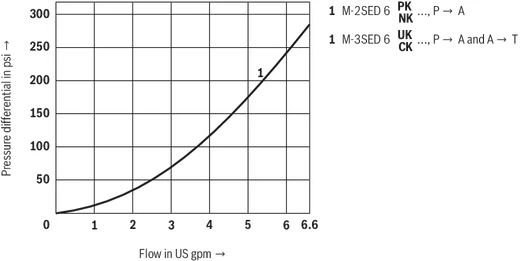

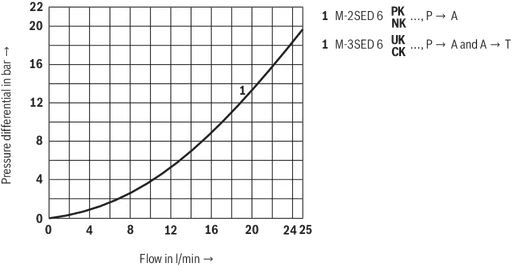

Δp-qV characteristic curves, 2/2 and 3/2 directional seat valve

Δp-qV characteristic curves, 2/2 and 3/2 directional seat valve

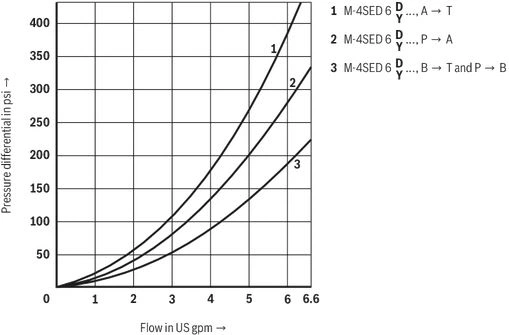

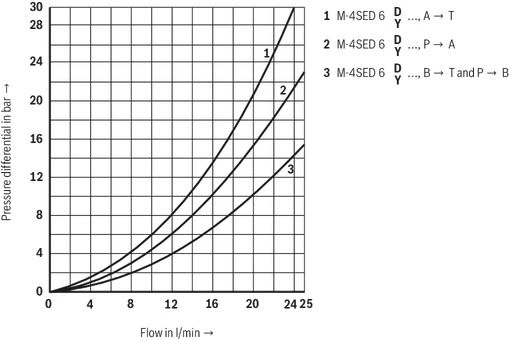

Δp-qV characteristic curves ‒ 4/2 directional seat valve

Δp-qV characteristic curves ‒ 4/2 directional seat valve

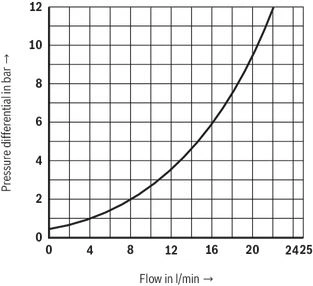

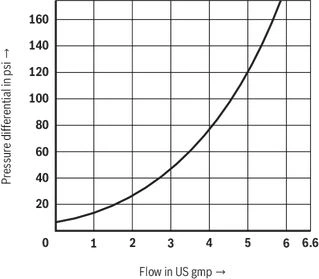

Δp-qV characteristic curves ‒ Check valve insert

Δp-qV characteristic curves ‒ Check valve insert

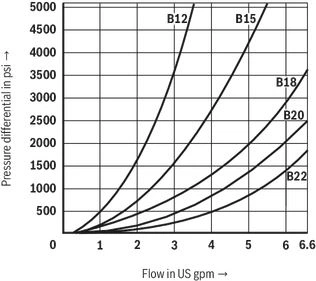

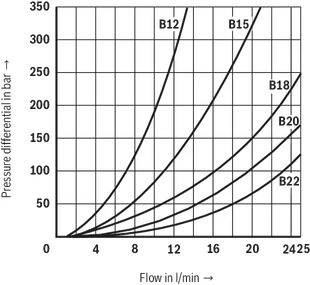

Δp-qV characteristic curves ‒ throttle insert

Δp-qV characteristic curves ‒ throttle insert

Symbols/Circuit diagrams

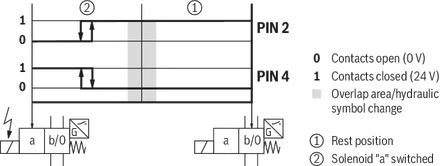

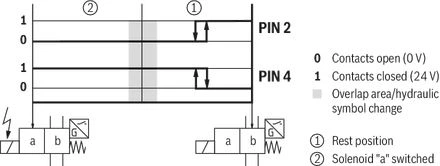

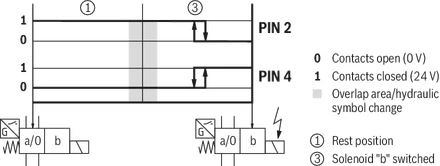

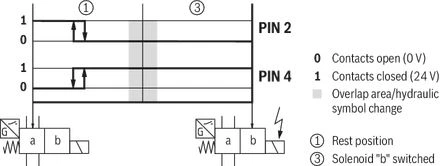

Inductive position switch type QM Switching logics

Version QMA

Position switch on side B, monitored spool position "a"

Version QMA

Position switch on side A, monitored spool position "a"

Version QMB

Position switch on side A, monitored spool position "b"

Performance limit: (measured with HLP46, ϑoil = 40 ±5 °C)

Symbol

Comment

Operating pressure in bar

Flow in l/min

P

A

B

T

2/2-way circuit (2/2 directional seat valve)

PK

350

350

25

NK

350

350

25

2/2-way circuit (3/2 directional seat valve)

UK

With 2/2-way circuits, port P or T must be closed.

350

350

350

25

CK

350

350

350

25

3-way circuit

UK

350

350

350

25

CK

350

350

350

25

4-way circuit (flow only possible in the direction of arrow)

D

3/2 directional valve (symbol "UK") in connection with Plus-1 plate: pP ≥ pA ≥ pB ≥ pT

350

350

350

pP – 40

25

Y

3/2 directional valve (symbol "CK") in connection with Plus-1 plate: pP ≥ pA ≥ pB ≥ pT

350

350

350

pP – 40

25

Attention!

The performance limit was determined when the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.

Version QMB

Position switch on side B, monitored spool position "b"

Electrical connection

M12x1 plug-in connection ‒ Individual connection – “K72L”

Pin 5 without function

Dimensions

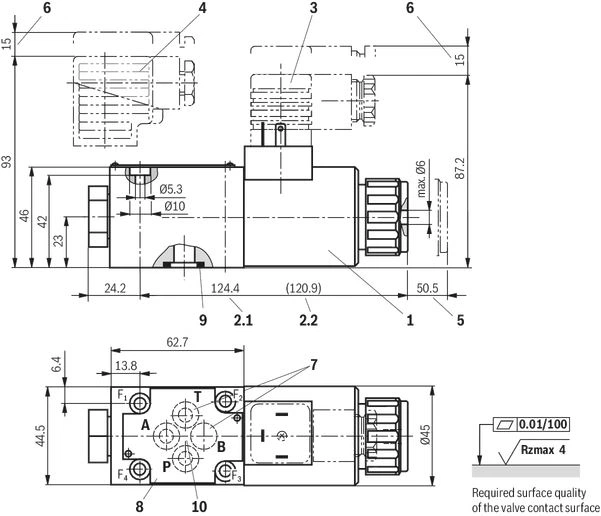

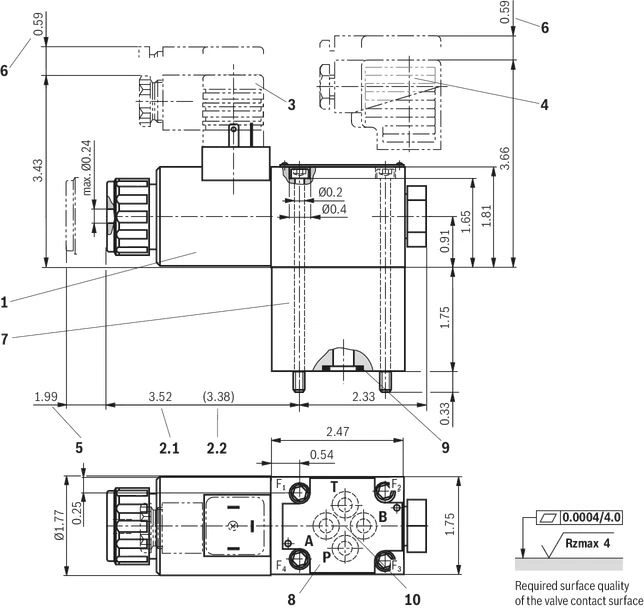

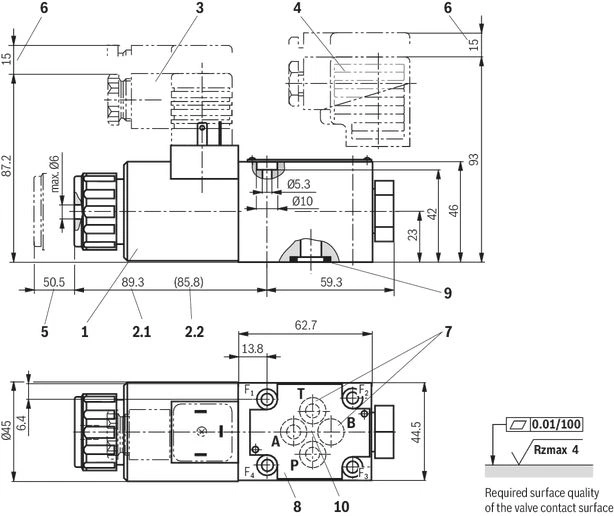

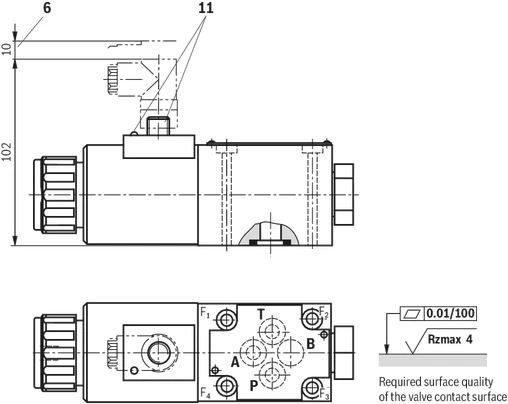

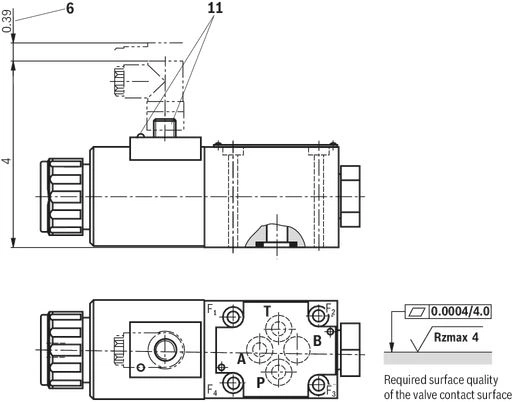

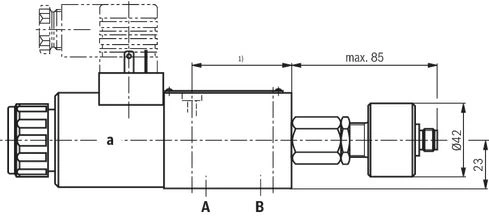

2/2 directional seat valve (“PK”) and 3/2 directional seat valve (“UK”)

Dimensions in mm

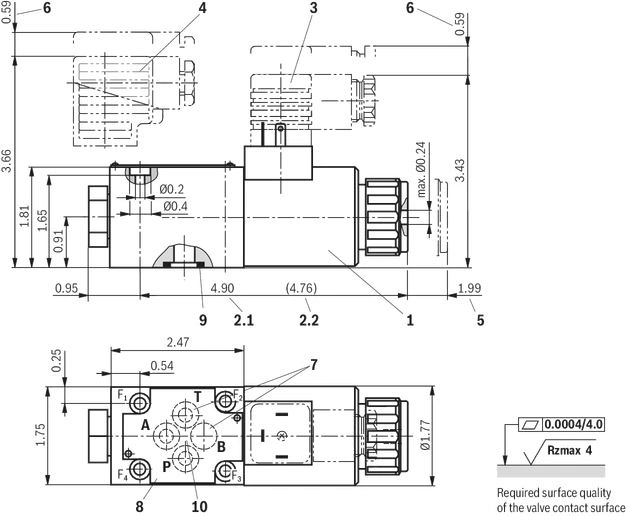

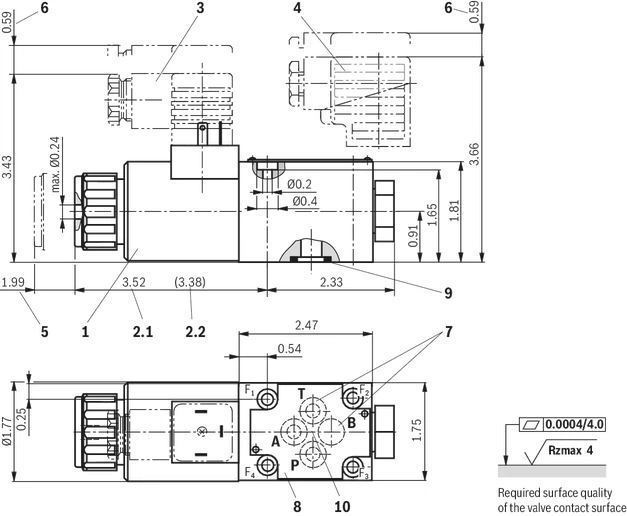

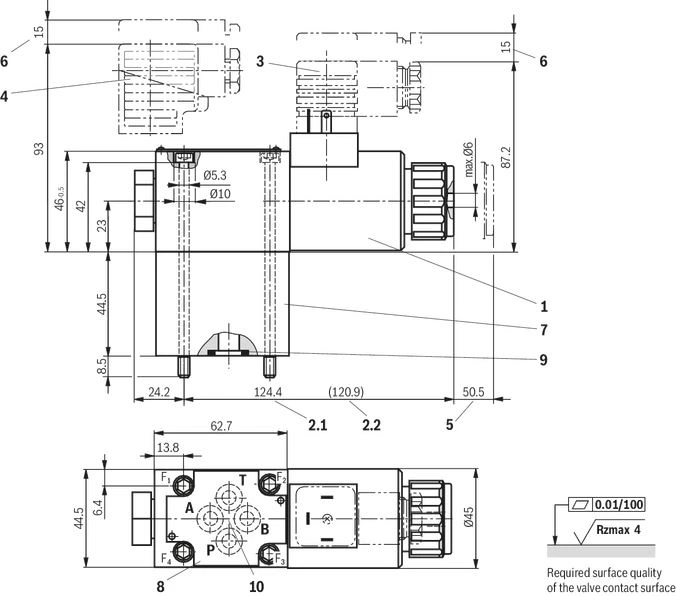

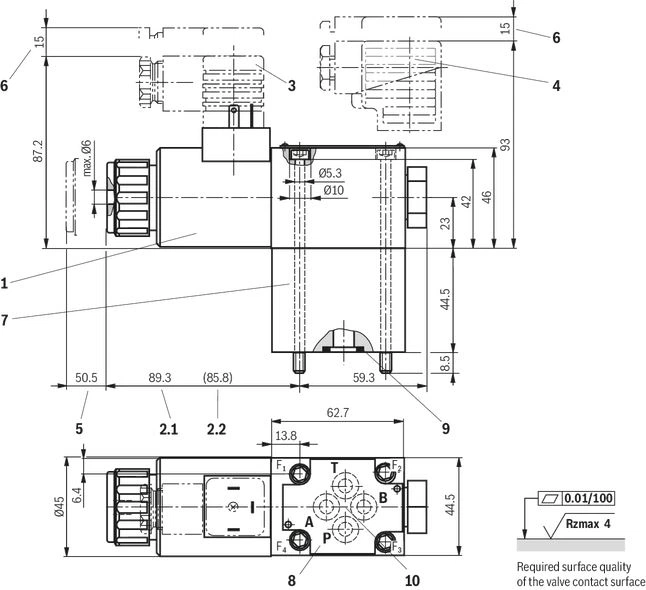

2/2 directional seat valve (“PK”) and 3/2 directional seat valve (“UK”)

Dimensions in mm

1)1) Depth of fit

1

Solenoid “a”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Attention!
With 2/2 and 3/2 directional seat valves, port B is present as blind counterbore. With 2/2 directional seat valves, port T is closed internally.

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

2/2 directional seat valve (“NK”) and 3/2 directional seat valve (“CK”)

Dimensions in mm

1)1) Depth of fit

2/2 directional seat valve (“NK”) and 3/2 directional seat valve (“CK”)

Dimensions in mm

1

Solenoid “b”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Attention!
With 2/2 and 3/2 directional seat valves, port B is present as blind counterbore. With 2/2 directional seat valves, port T is closed internally.

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

4/2 directional seat valve (“D”)

Dimensions in mm

4/2 directional seat valve (“D”)

Dimensions in mm

1

Solenoid “a”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Plus-1 plate

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

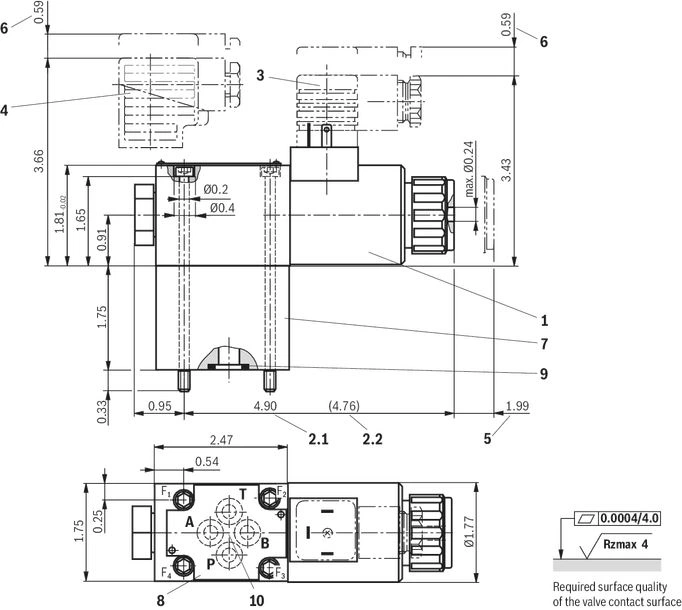

4/2 directional seat valve (“Y”)

Dimensions in mm

4/2 directional seat valve (“Y”)

Dimensions in mm

1

Solenoid “b”

2.1

Dimension for valve with concealed manual override "N9"

2.2

Dimension for valve without manual override

3

Mating connector without circuitry (separate order)

4

Mating connector with circuitry (separate order)

5

Space required to remove the coil

6

Space required to remove the mating connector

7

Plus-1 plate

8

Name plate

9

Identical seal rings for ports A, B, and T; seal ring for port P

10

Porting pattern according to ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, included in the scope of delivery)

2/2 and 3/2 directional seat valve

4 hexagon socket head cap screws, metric

ISO 4762 - M5 x 50 - 10.9-flZn-240h-L (separate order)

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000064

or

4 hexagon socket head cap screws

ISO 4762 - M5 x 50 - 10.9 (self procurement)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8,1 Nm ± 10 %

4 hexagon socket head cap screws UNC

10-24 UNC x 2″ (self procurement)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978833365

4/2 directional seat valve

4 hexagon socket head cap screws metric

ISO 4762 - M5 x 95 - 10.9-flZn-240h-L (included in the scope of delivery)

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

material no. R913000223

or

4 hexagon socket head cap screws

ISO 4762 - M5 x 95 - 10.9 (self procurement)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8.1 Nm ± 10 %

4 hexagon socket head cap screws UNC

10-24 UNC x 3 3/4″ (self procurement)

(friction coefficient μtotal = 0.19 to 0.24 according to ASTM-574);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17 according to ISO 4762);

tightening torque MA = 8 Nm ± 10 %,

material no. R978881682

Spool position monitoring

Dimensions in mm

1)only NG150

Inductive position switch type QM

Dimensions in mm

1)For dimensions, see valve dimensions

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

M12x1 plug-in connection

Dimensions in mm

M-.SED 6 .-1X/350CG24.K72L…

Dimensions in mm

Information

Seat valves can be used according to the spool symbols as well as the assigned operating pressures and volume flows (see performance limits).

In order to ensure a safe functioning, it is absolutely necessary to observe the following:

  • In order to switch the valve safely and/or maintain it in its spool position, the pressure must be pP ≥ pA ≥ pT (for design reasons).
  • Seat valves have a negative spool overlap, i.e. leakage oil occurs during the switching process. However, this process takes place within such a short time that it is irrelevant in nearly all cases of use.
  • The indicated maximum flow must not be exceeded (if applicable, use a throttle insert for flow limitation)!

Plus-1 plate:

  • When using the Plus-1 plate (4/2 directional function), the following lower operating values are to be observed:

pmin = 8 bar; qV > 3 l/min.

  • The ports P, A, B and T are clearly specified according to their tasks. They must not be arbitrarily exchanged or closed!
  • With 3- and 4-way spool position, port T must always be connected.
  • Observe the pressure level and pressure distribution!
  • The flow is only admissible in the direction of arrow!

Accessories

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z45

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z45

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, with indicator light

3P Z55L

Mating connectors for valves with connector “K4”, with indicator light

3P Z55L

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Mating connectors for valves with connector “K4”, with rectifier

3P RZ55

Mating connectors for valves with connector “K4”, with rectifier

3P RZ55

  • For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
  • Mating connectors for valves with one or two solenoids (individual connection)

Ordering codes

Currently eShop is not available. Please try again later.

Downloads

Hydraulic valves and hydroelectric pressure switches for industrial applications
Manual | RE07600-B | 2021-06-21 | English | PDF | 306k

Product Groups: Industrial Hydraulics
On/off, proportional, high-response and servo valves, pressure switches
Directional seat valves, direct-operated with solenoid actuation
Data Sheet | RE22049-XE-710 | 2020-03-01 | English | PDF | 741k

Product Groups: Direct operated
Type SED …XE…710
2/2, 3/2 and 4/2 directional seat valve with solenoid actuation
Data Sheet | RE22049 | 2009-07-01 | English | PDF | 943k

Product Groups: Direct operated
Type M-.SED
Directional seat valves, direct operated, with solenoid actuation
Data Sheet | RE22049-XN | 2021-04-01 | English, United States | PDF | 1MB

Product Groups: Directional seat valves
Type SED …XN
Directional seat valves, direct operated, with solenoid actuation
Data Sheet | RE22049-XE | 2020-11-01 | English, United States | PDF | 1MB

Product Groups: Direct operated
Type SED …XE

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024
Bosch Rexroth и TotalEnergies объединяют свои усилия для продвижения альтернативных и экологичных гидравлических жидкостей

Bosch Rexroth и TotalEnergies (французская нефтегазовая компания) 18 декабря 2023 года подписали соглашение сотрудничестве, направленном на разработку, внедрение и маркетинг гидравлических жидкостей на водной основе, с акцентом на экологичность, огнестойкость и производительность. Данный союз отр..

11 Января, 2024
Bosch Rexroth представляет Интеллектуальный функциональный набор для обработки данных Smart Function Kit for Handling

Компания Bosch Rexroth является одним из ведущих мировых производителей и поставщиков технологий и услуг в области промышленной автоматизации. Это производитель рад представить вам свой интеллектуальный функциональный набор для обработки данных. Это инновационное оборудование, с помощью которого п..

4 Декабря, 2023
Бренд Bosch Rexroth представил миру свою разработку - оборудование IndraDrive CDB02 - BASIC для двухосевого блока управления

Bosch Rexroth, являясь ведущим производителем промышленного оборудования, не стоит на месте и разрабатывает новое оборудование. Одним из изобретений этой компании является IndraDrive CDB02 - BASIC. Это двухосевой блок управления, который предназначен для использования в различных промышленных сект..

1 Декабря, 2023
Bosch Rexroth: высокоскоростной асинхронный двигатель 1MB140

Производитель Bosch Rexroth представил свою разработку - высокоскоростной асинхронный двигатель 1MB140. Этот продукт обладает рядом уникальных характеристик и предназначен для различных применений в промышленности. Основным назначением двигателя 1MB140 является обеспечение высокой скорости вращ..

30 Ноября, 2023
Bosch Rexroth рассказывает о характеристиках электрогидравлических насосов

Bosch Rexroth представляет электрогидравлические насосы, которые объединяют в себе преимущества электрической и гидравлической технологий. Данные насосы могут использоваться в различных отраслях промышленности, включая машиностроении, автомобильной промышленности, энергетике и других. Основная ..

29 Ноября, 2023
Bosch Rexroth представил серию высокоэффективных синхронных моментных двигателей МВТ130

Синхронные моментные двигатели МВТ130 применяются в различных отраслях промышленности: машиностроение, автомобильной и энергетической промышленности. Это оборудование используют как дополнение к насосам, компрессорам, приводам конвейеров и другим механизмам, требующим точного управления и высокой ..

28 Ноября, 2023
Bosch Rexroth: надежные и эффективные героторные насосы подходят для решения для множества задач

Героторные насосы Bosch Rexroth — это инновационное оборудование, которое обеспечивает эффективную работу в различных областях промышленности. Они являются незаменимым компонентом в системах гидравлического привода и обеспечивают надежную и плавную работу механизмов. Принцип работы герото..

27 Ноября, 2023
Для эффективной работы гидравлических систем Bosch Rexroth представляет баллонный аккумулятор HAB2

Баллонный аккумулятор HAB2 производства компании Bosch Rexroth — это инновационное оборудование, предназначенное для оптимизации работы гидравлических систем и обеспечения более эффективного использования энергии. Баллонный аккумулятор HAB2 выполняет несколько важных функций. Во-первых, с..

24 Ноября, 2023
Bosch Rexroth: инновационное решение для удобства и эффективности работы - выдвижная клавиатура VAK40

Торговая марка Bosch Rexroth, является одним из мировых лидеров в области промышленной автоматизации, и представляет свою разработку - выдвижную клавиатуру VAK40. Это инновационное устройство, которое обеспечивает удобную и эффективную работу операторов в промышленных условиях. Установить выдви..

23 Ноября, 2023
Bosch Rexroth: инновационные функции и простая установка дисплея 19" VDP60

Бренд Bosch Rexroth рад представить свою разработку - дисплей 19" VDP60, который обещает стать настоящим прорывом в мире технологий. Этот дисплей не только показывает изображения высокого качества, но и предлагает ряд функций, которые помогут решить множество задач. Одним из главных свойст..

22 Ноября, 2023
Rexroth: Шестеренные насосы с внешним зацеплением – надежное решение для эффективной работы в различных отраслях

Компания Rexroth представляет шестеренные насосы с внешним зацеплением, которые являются необходимым прибором в области гидравлики. Они выполняют важную задачу – обеспечивают надежную и эффективную работу гидравлических систем в различных отраслях промышленности. Эти насосы нашли применен..

21 Ноября, 2023

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
