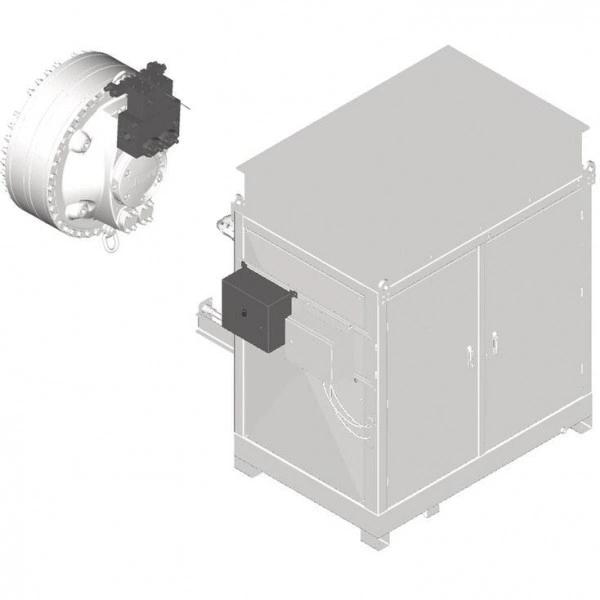

Quick Stop Unit Hägglunds VQCB 800 / QECB
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Valid for Hägglunds CA, CB, CBP, CBM
- Maximum flow 800 l/min
Features
- Very short stop time of the hydraulic drives
- Special application for roll mill application
- Ideal from safety point of view
- Performance level PL d
- Consists of valve VQCB 800 and control box QECB
Product description
Hägglunds quick stop unit is designed to be used on hydraulic drives to quickly stop the rolls without stopping the main electric motor.
There is no need of a mechanical brake. The stopping function is instead achieved by blocking the oil flow from the Hägglunds hydraulic motor.
A very short braking time is possible due to small inertia of the motor and quick response from the hydraulic valve, i.e. 100 ... 150 ms
From safety point of view regarding quick stop, Hägglunds quick stop functionality consisting of Hägglunds hydraulic motor, quick stop valve VQCB 800 and electrical control unit QECB is an ideal combination.
The components are designed according to following safety regulations for rubber and plastic machines.
The European standard EN 1417+A1;2008/AC;2009
ltem 3.3 and 5.5.1.4.1,b
- For rubber and plastic machines. Rules and requirements for two roll mills.
The standard Code of Federal regulations (USA)
- Occupational safety and health administration 29 CFR chapter XVII (July 1. 1997-edition)
§1910.216 that cover mills and calendars in the rubber and plastic industry.
Reliability characteristics MTTFd according to EN ISO 13849
- MTTFd = 31 years (VQCB 800 + QECB)
Type code
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
| 01 | 02 | 03 | 04 | 05 1) | 06 1) | 07 | 08 | 09 | |
| VQC | B | 800 | / | QEC | B |
| 01 | Hydraulic stop valve VQC | VQC |
| 02 | Version | B |
| Nominal flow | ||
| 03 | 800 l/min | 800 |
| Electric voltage | ||
| 04 | Standard 24 VDC | 1 |
| 110 VAC (not in combination with QEC) | 2 | |
| Modification | ||
| 05 1) | 0 ... 9 | |
| Design | ||
| 06 1) | Standard | 00 |
| Special index (Customer specific adaption) | 01 ... 99 | |
| Quick stop electronic control QEC | ||
| 07 | QEC | |
| Version | ||
| 08 | B | |
| Main voltage | ||
| 09 | 100 / 200 VAC | 1 |
| 115 / 230 VAC | 2 | |
| 1) | To be filled in by Bosch Rexroth AB, Mellansel. |
Symbols/Circuit diagrams

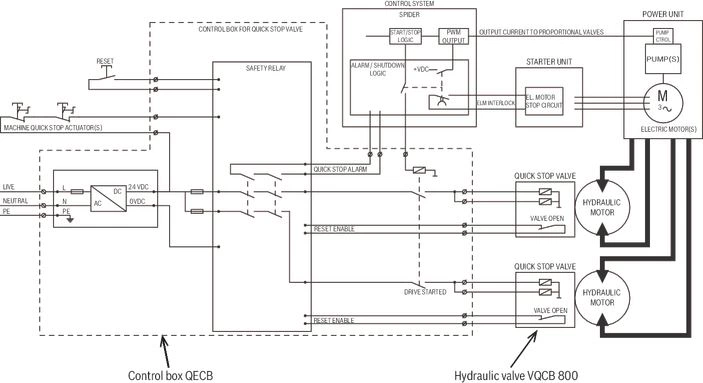

Block diagram, quick stop unit
Safety Instructions
Warning signs
In this manual you will find the following signs which indicate a potential hazard, which can or will cause personal injury or substantial property damage. Depending on the probability if the hazard, and how serious the injury or property damage could be, there are three levels if classification.
| Warning sign (warning triangle) | Draws attention to the hazard |
| Signal word | Identifies the degree of hazard |
| Type of risk | Specifies the type or source of the hazard |
| Consequences | Describes the consequences of non-compliance |
| Precautions | Specifies how the hazard can be prevented |
The signal words have the following meaning:
| Warning sign, signal word | Meaning |
| DANGER | Indicates a hazardous situation which, if not avoided, will result in death or serious injury. |
| WARNING | Indicates a hazardous situation which, if not avoided, could result in death or serious injury. |
| CAUTION | Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. |
| NOTE | Material damage: the product or its environment could be damaged. |
Ordering codes
Downloads
 | Quick stop unit - Hägglunds VQCC 800 and QECC Data Sheet | RE15365 | 2020-07-30 | English | PDF | 229k Product Groups: Radial piston motors |
