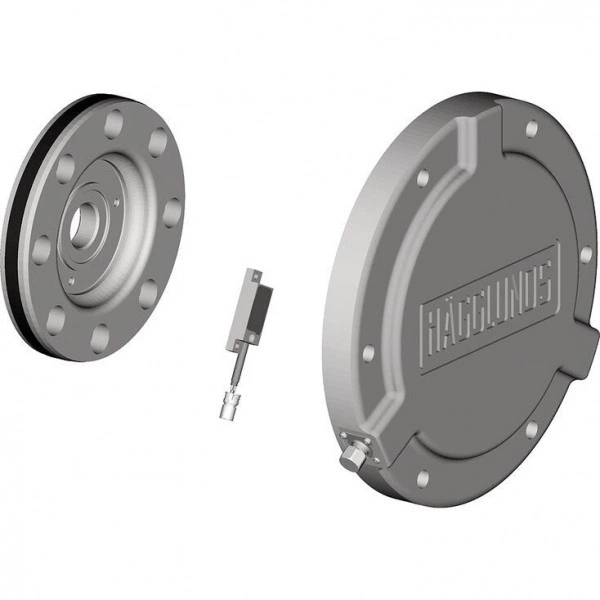

Speed sensor Hägglunds SPDC
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Valid for:
• Hägglunds CA
• Hägglunds CA with BICA
• Hägglunds CB
• Hägglunds CBP
• Hägglunds CBM
Features
- Slim design fully integrated in motor
- Magnetic sensor
- Non-contact, wear-free sensing system
- Radial sensor positioning
- Frequence to analogue converter is available as option
- Recommendation
Order the SPDC speed sensor mounted on the motor at factory.
Product description
Speed sensor, Hägglunds SPDC, is a digital incremental encoder using magnetic sensing technology.
The sensor generates two square wave signals with 90° phase shift for detection of speed and direction of rotation.
Type code
load errorTechnical data
Mechanical specification, Speed sensor
| Material ID Sensor head | R939058059 | ||
| Axial tolerance 1) | mm | ± 2 | |
| Radial tolerance | Nominal | mm | 1 |
| air gap | mm | 0.1 ... 2 | |
| Protection class acc. to DIN EN 60529 | IP67 | ||
| Operating temperature | °C | -40 … +80 | |
| Vibration | ≤ 100 m/s², sine 50Hz ... 2kHz, DIN EN 60068-2-6 | ||
| Shock | ≤ 1000 m/s², half sine 11 ms, DIN EN 60068 2-7 | ||
| 1) | between sensor and magnetic strip |
Electrical specification, Speed sensor
| Supply voltage +Ub | + 24 VDC (10 ... 30 VDC) | ||
| Current consumption at no-load | mA | ≤ 30 | |
| Output voltage | low | V | 0 … 2 |
| high | V | Ub-2 | |
| Outputs | Short circuit protected HTL | ||
| Cable length max at 50 kHz | m | 200 | |
| EMC approval | Immunity | DIN EN 61000-6-2 | |
| Emission | DIN EN 61000-6-3 | ||
Specification, Female cable connector (included in delivery)
| Material ID Cable Connector | R911340372 | |
| Type | Female M12 A-coded IEC 610 76-2-101 | |
| Connection | 8 pin screw terminals | |
| Cable diameter ⌀ | mm | 6 ... 8 |
| Conductor cross section | 0.25 ... 0.75 mm² AWG 24-18 |
Specification, Optional cable
| Material ID Connecting Cable | 5 m | R901423218 | |
| 10 m | R901423220 | ||
| 25 m | R901423237 | ||
| Connector type | Female M12 A-coded | ||
| Connection customer | Free cable end | ||
| Cable type | PUR, Halogen-free | ||
| Cable diameter ⌀ | mm | 6 | |
| Conductor | 8 x 0.25 mm² | ||
| Shielding | Tinned copper braided shield | ||
Specification, Pulse rate
| SPDC CA | 1856 ppr |
| SPDC CA with BICA | 1856 ppr |
| SPDC CB | 1856 ppr |
| SPDC CBP | 2976 ppr |
| SPDC CBM | 4544 ppr |

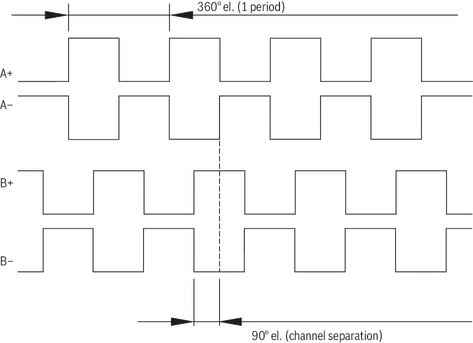

Sequence for clockwise direction of rotation
Specification, Pin out
| Pin # | Signal | Colour (optional cable) |
| 1 | 0 V | white |
| 2 | +Ub | Brown |
| 3 | A+ | Green |
| 4 | A- | Yellow |
| 5 | B+ | Grey |
| 6 | B- | pink |
| 7 | - | Blue |
| 8 | - | Red |

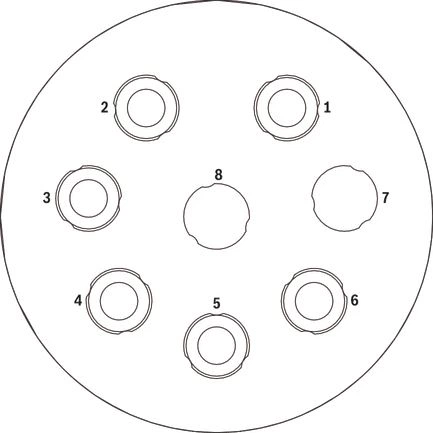

Connection female cable connector, seen from connecting side
Main parts in the Hägglunds SPDC
Hägglunds CA, CBP 140

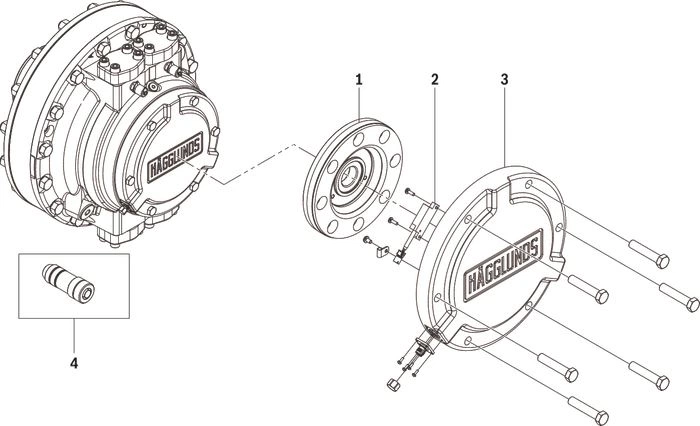

Parts in the Hägglunds SPDC for Hägglunds CA and CBP 140
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 3 | Cover |
| 4 | Cable connector for customer cable (included in delivery) |

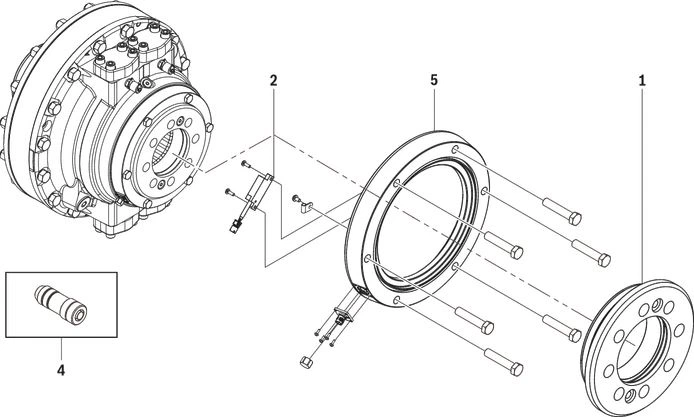

Parts in the Hägglunds SPDC for Hägglunds CA and CBP 140 with through hole
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |
| 5 | Outer ring |
Hägglunds CB

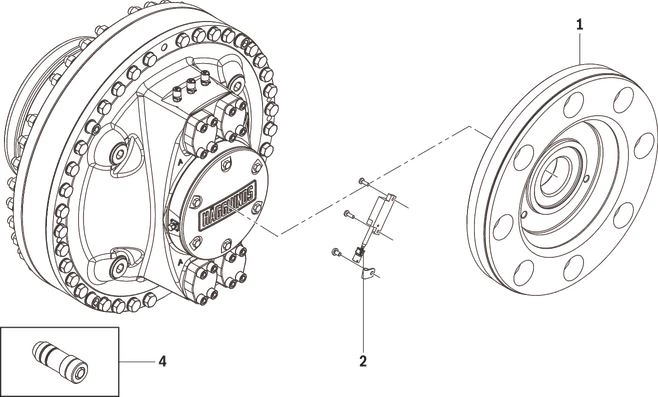

Parts in the Hägglunds SPDC for Hägglunds CB
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |

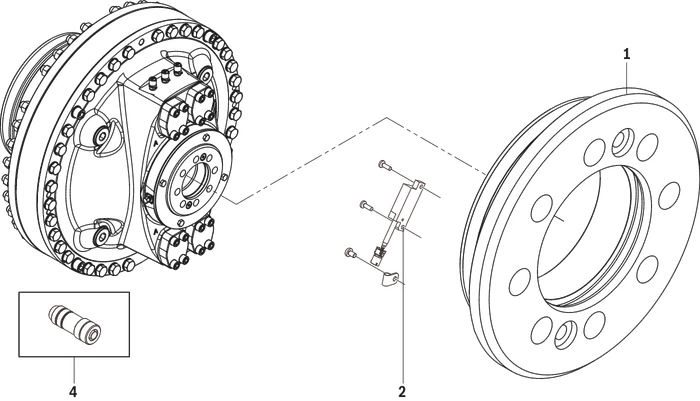

Parts in the Hägglunds SPDC for Hägglunds CB with through hole
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |
Hägglunds CBP

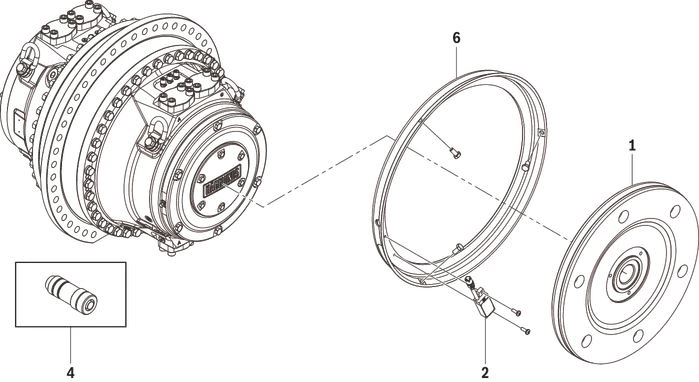

Parts in the Hägglunds SPDC for Hägglunds CBP
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |
| 6 | Adapter ring |

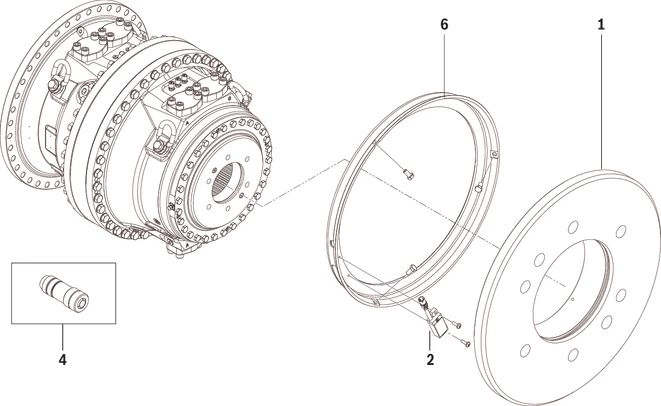

Parts in the Hägglunds SPDC for Hägglunds CBP with through hole
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |
| 6 | Adapter ring |
Hägglunds CBM

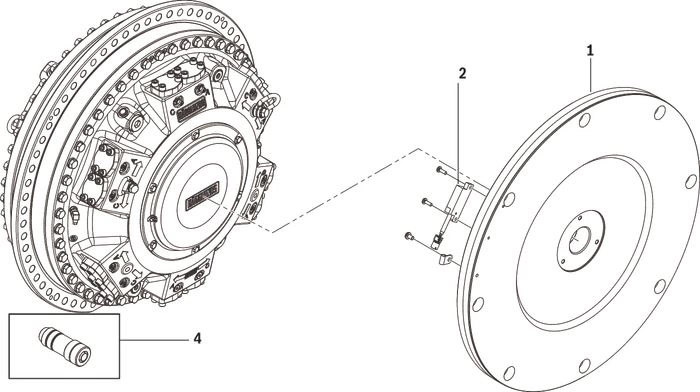

Parts in the Hägglunds SPDC for Hägglunds CBM
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |

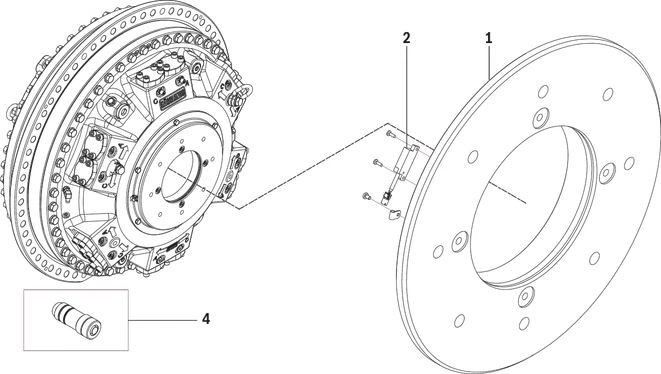

Parts in the Hägglunds SPDC for Hägglunds CBM with through hole
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 4 | Cable connector for customer cable (included in delivery) |
Hägglunds CA with BICA

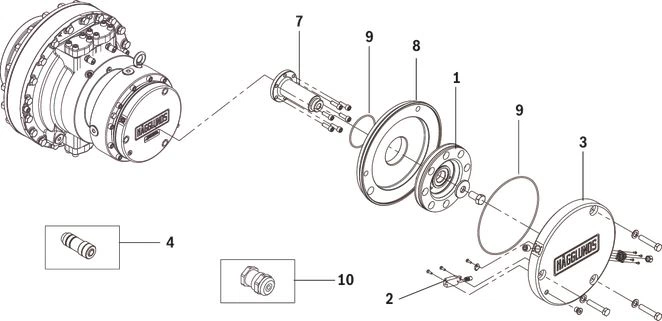

Parts in Hägglunds SPDC for Hägglunds CA with BICA
| 1 | Magnetized bearing holder |
| 2 | Sensor head |
| 3 | Cover |
| 4 | Cable connector for customer cable (included in delivery) |
| 7 | Carrier |
| 8 | Spacer |
| 9 | O-ring |
| 10 | Cable gland for on-off sensor (included in delivery) |
F/A Converter
Functional description
The F/A Converter converts a single puls train to a 4 ... 20 mA output signal.
The output is based on an internal reference frequency selectable in 16 steps. This gives a full output at 16 different pulse rates.
The F/A Converter is optional and must be mounted externally.
Material ID
Material ID: R939004770
Technical data
| Supply voltage | 24 V (12 ... 50 V) | |
| Power consumption | W | 3 |
| Operating temperature | °C | -20 … +60 |
| Humidity | 0 ... 90 % RH, non condensing | |
| Temperature coefficient per °C | % | < 0.01 |
| Accuracy | better than 0.3 % | |
| Resolution | % | 0.1 |
| Mounting | NS35 DIN rail | |
| Size | mm | w45 x d70 x h117 |
Electrical connections
| Pulse input | Input high [Vin] | V | > 15 |
| Input low [Vin] | V | < 6 | |
| 4 ... 20 mA output | Max. output load 500 Ω | ||
| EMC approval | EN 50081-1 EN 50082-2 | ||
| Safety | EN 60730 | ||
Settings of SW1 for different type of speed sensors and rpm range
| SW1 | 1856 ppr | 2976 ppr | 4544 ppr |
| rpm | rpm | rpm | |
| 0 | 0 ... 0.05 | 0 ... 0.03 | 0 ... 0.02 |
| 1 | 0 ... 0.11 | 0 ... 0.07 | 0 ... 0.04 |
| 2 | 0 ... 0.27 | 0 ... 0.17 | 0 ... 0.11 |
| 3 | 0 ... 0.54 | 0 ... 0.34 | 0 ... 0.22 |
| 4 | 0 ... 1.08 | 0 ... 0.67 | 0 ... 0.44 |
| 5 | 0 ... 2.69 | 0 ... 1.68 | 0 ... 1.10 |
| 6 | 0 ... 5.39 | 0 ... 3.36 | 0 ... 2.20 |
| 7 | 0 ... 10.78 | 0 ... 6.72 | 0 ... 4.40 |
| 8 | 0 ... 3.23 | 0 ... 2.02 | 0 ... 1.32 |
| 9 | 0 ... 6.47 | 0 ... 4.03 | 0 ... 2.64 |
| A | 0 ... 16.16 | 0 ... 10.08 | 0 ... 6.60 |
| B | 0 ... 32.33 | 0 ... 20.16 | 0 ... 13.20 |
| C | 0 ... 64.66 | 0 ... 40.32 | 0 ... 26.41 |
| D | 0 ... 161.64 | 0 ... 100.81 | 0 ... 66.02 |
| E | 0 ... 323.28 | 0 ... 201.61 | 0 ... 132.04 |
| F | 0 ... 646.55 | 0 ... 403.23 | 0 ... 264.08 |

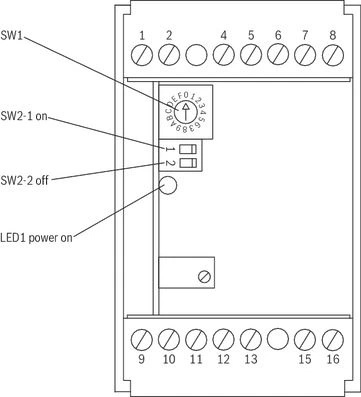

F/A converter, details

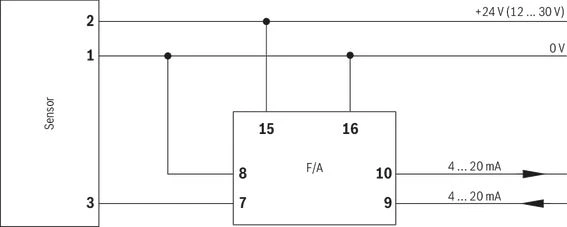

Connection diagram
Mounting
