Description
- Function for 2 VQCB valves
Features
- Performance level PL d
- Safety integrity level SIL 2

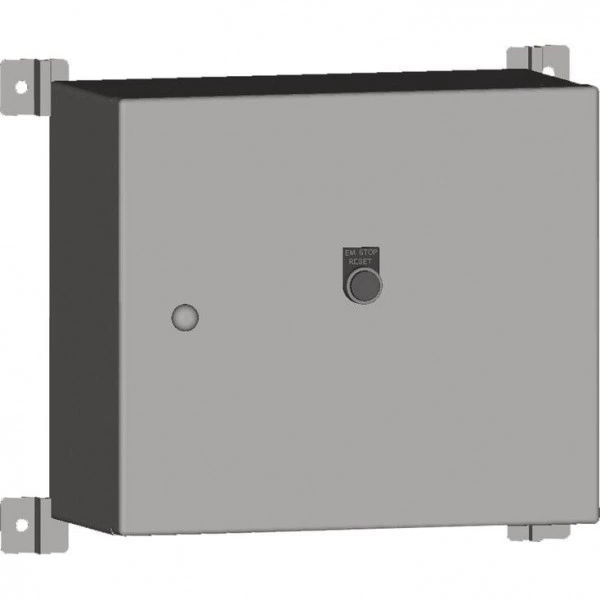

Product description
The main blocks in the Quick stop box are a safety classified relay and a power supply with 24VDC output to give power to the Quick stop block valves. The unit can supply 2 stop blocks with 2 valves each.
At normal drive the actuator chain shall be closed. There are 4 actuator inputs where 3 are factory jumpered. The outputs to stop and bypass solenoids on the Quick stop valve will be high (24VDC) to have a closed hydraulic circuit. If any of the actuator inputs are opened, the outputs to the Quick stop valves will be low (0V) to stop the hydraulic flow through the hydraulic motors and bypass the pump flow via the valve. The sensors on the stop valves will indicate deactivated valves. Reset of quick stop function can be done after fully activated stop sequence if the sensors indicate deactivated valves. Reset can be activated via the reset button on the Quick stop unit front or via a closing contact to terminals. Outputs are available to indicate status and to interlock control system for hydraulic oil flow.
The unit also carries supply voltage outputs, 24VDC or main supply, for a water valve control circuit. The outputs are interlocked to switch off at electric motor(s) stop.
Type code
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
| 01 | 02 | 03 |
| QEC | B |
| 01 | Quickstop electronic control | QEC |
| 02 | Version | B |
| Main voltage | ||
| 03 | 100 / 200 VAC | 1 |
| 115 / 230 VAC | 2 | |
Technical data
Terminal / fuse overview
| F5 | F6 | |||||||||||||||||||||||||
| 9 | 11 | 802 | 804 | 808 | 814 | 816 | 818 | 828 | 852 | 854 | 855 | 864 | 898 | 902 | 904 | 906 | 908 | F3 | F4 | F1 | F2 | |||||
| 10 | 12 | 801 | 803 | 807 | 813 | 815 | 817 | 827 | 851 | 853 | 855 | 863 | 897 | 901 | 903 | 905 | 907 | 404 | 410 | L | N | PE | ||||
Fuse function
| Fuse | Function | Comment |
| F1 | Main supply Line | 2A Slow blow |
| F2 | Main supply Neutral | |
| F3 | Quick stop actuator supply | 315mA Slow blow |
| F4 | 24VDC supply | 8A Slow blow |
| F5 | Stop valve supply | 4A Slow blow |
| F6 | Bypass valve supply |
Terminal description
| Pin | Function | Comment | |
| 9 | Supply voltage for Mains VAC water valve | Neutral | |
| 10 | Line | ||
| 11 | Supply voltage for 24 VDC water valve | 0VDC | |
| 12 | +24VDC out | ||
| 801 | Input electric motor(s) started | +24VDC in | |
| 802 | not used | ||
| 803 | Output quick stop indication (open at quick stop) | Indication contact | |
| 804 | |||
| 807 | Input drive started | +24VDC in | |
| 808 | Input 0VDC | (For #801 & 807) | |
| 813 | Inductive sensor master stop valve (jumper #813 to 815 if not used) | Reset signal out (+V to sensor) | |
| 814 | 0VDC | ||
| 815 |  | Reset signal in from sensor | |
| 816 | Inductive sensor slave stop valve (jumper #816 to 818 if not used) | Reset signal out (+V to sensor) | |
| 817 | 0VDC | ||
| 818 | Reset signal in from sensor | ||
| 827 | Quick stop actuator 1 | ||
| 828 |  | ||
| 851 | Quick stop actuator 2 | Factory jumpered | |
| 852 |  | ||
| 853 | Quick stop actuator 3 | Factory jumpered | |
| 854 |  | ||
| 855 | Quick stop actuator 4 | Factory jumpered | |
| 856 | |||
| 863 | External reset | ||
| 864 | |||
| 897 | Quick stop active (open at quick stop) | Safety contact | |
| 898 | |||
| 901 | Master stop valve solenoid | +24VDC out | |
| 902 | 0VDC | ||
| 903 | Master bypass valve solenoid | +24VDC out | |
| 904 | 0VDC | ||
| 905 | Slave stop valve solenoid | +24VDC | |
| 906 | 0VDC | ||
| 907 | Slave bypass valve solenoid | +24VDC out | |
| 908 | 0VDC | ||
| 404 | Supply for internal use | 0VDC | |
| 410 | +24VDC | ||
| L | Main supply input | Line | |
| N | Neutral | ||
| PE | Protective earth | ||

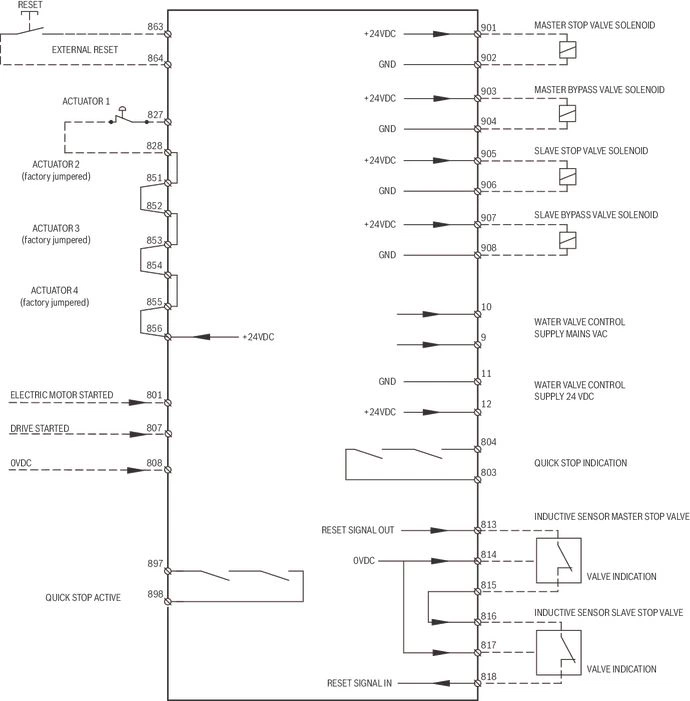

Connections
Operating data
| Supply voltage | 100/200VAC or 115/230VAC (see order code) | ||
| Temp area | °C | -20 … +50 | |
| Protection | IP65 | ||
| Max Load | Valve outputs | 2A each | |
| Indication outputs | A | 1 | |
| Water valve outputs | A | 2 | |
| Safety | PLd or SIL2 | ||

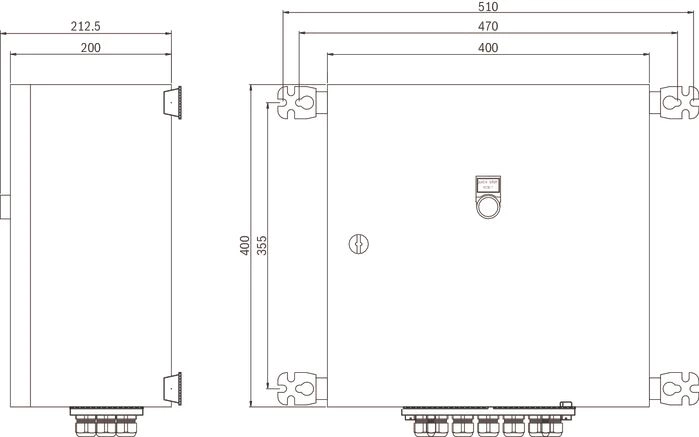

Dimensions
Dimensions in mm
Information
Required and additional documentation
| Title | Document no | Document type |
| Installation and maintenance manual, Hägglunds CA | EN411-18h | Instruction |
| Installation and maintenance manual, Hägglunds CB | EN683-6BR | |
| Installation and maintenance manual, Hägglunds CBP | EN818-6BR | |
| Installation and maintenance manual, Hägglunds CBM | RE 15300-WA | |
| Data sheet, Hägglunds VQCB 800/QECB | RE 15365 | Data sheet |
| Data sheet, Hägglunds VQCB 800 | RE 15375 |
Ordering codes
Downloads
 | Hägglunds QECC - Quick stop electronic control Data Sheet | RE15370 | 2020-06-01 | English | PDF | 327k Product Groups: Radial piston motors accessories |
