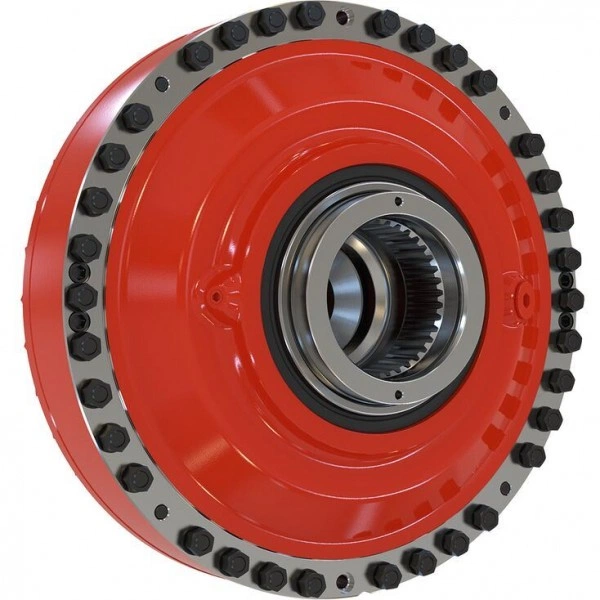

Radial piston motors Hägglunds CB

Description

• Size 240 … 1120
• Displacement 15100 … 70400 cm³/rev
• Specific torque 240 … 1120 Nm/bar
• Maximum operating pressure 350 bar

Technical data

Accessories

Hydraulic quick stop valve

Hägglunds VQCB 800

Hydraulic quick stop valve

Hägglunds VQCB 800

• Valid for Hägglunds CA, CB, CBP, CBM
• Maximum flow 800 l/min
• Fast response time, i.e. 100 ... 150 ms
• Maximum pressure 350 bar
• Open and closed loop

• Data sheet

Cross-over valve

Hägglunds COCB 700, COCB 1000
Includes valves for ATEX environment

Cross-over valve

Hägglunds COCB 700, COCB 1000
Includes valves for ATEX environment

• Valid for: Hägglunds motor CA, CB, CBM
• Maximum flow 700 l/min, 1000 l/min
• Maximum pressure 350 bar
• Open and closed loop hydraulic system

• Data sheet

Counter balance valve

Hägglunds VCBCA 480

Counter balance valve

Hägglunds VCBCA 480

• Valid for: Hägglunds motors CA, CB
• Maximum flow 480 l/min
• Maximum pressure 350 bar

• Data sheet

Counter balance valve

Hägglunds VCBCA 1000

Counter balance valve

Hägglunds VCBCA 1000

• Valid for: Hägglunds motor CA, CB, CBM
• Maximum flow 1000 l/min
• Maximum pressure 350 bar

• Data sheet

Freewheeling valve

Hägglunds VFWCB 600
Includes valves for ATEX environment

Freewheeling valve

Hägglunds VFWCB 600
Includes valves for ATEX environment

• Valid for: Hägglunds motor CA, CB, CBM
• Maximum flow 1000 l/min
• Nominal flow 600 l/min
• For closed and open loop hydraulic system

• Data sheet

Free circulation valve

Hägglunds VFCCA 1000
Includes valves for ATEX environment

Free circulation valve

Hägglunds VFCCA 1000
Includes valves for ATEX environment

• Valid for: Hägglunds motor CA, CB, CBM
• Maximum flow 1000 l/min
• Maximum pressure 350 bar
• Open and closed loop hydraulic system

• Data sheet

Four-way valve including counter balance on load line

Hägglunds V4WCA 1000

Four-way valve including counter balance on load line

Hägglunds V4WCA 1000

• Valid for: Hägglunds motor CA, CB, CBM
• Maximum flow 1000 l/min
• Maximum pressure 350 bar

• Data sheet

Downloads

	Data sheet Hägglunds CB Data Sheet | RE15302 | 2021-06-09 | English | PDF | 12.1MB Product Groups: Radial piston motors
	Motor hidrálico de pistones radiales Hägglunds CB Data Sheet | RS15302 | 2017-12-22 | Spanish | PDF | 11.2MB Product Groups: Radial piston motors
	Hägglunds CB Data Sheet | RD15302 | 2017-12-22 | German | PDF | 11.2MB Product Groups: Radial piston motors
	Hägglunds CB Radialkolben-Hydraulikmotor Manual | RD 15302-WA | 2021-06-30 | German | PDF | 7.5MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Installerings- og vedlikeholdshåndbok Manual | R-NO15302-WA | 2019-05-01 | PDF | 5.8MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Instrukcja montażu i konserwacji Manual | R-PL15302-WA | 2021-06-30 | Polish | PDF | 7.6MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Installations och underhållsmanual Manual | R-SK15302-WA/05.2019 | 2019-05-30 | Swedish | PDF | 6.4MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Asennus- ja huoltokäsikirja Manual | R-SF15302-WA | 2019-05-30 | Finnish | PDF | 5.8MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Installation and Maintenance Manual Manual | RE15302-WA | 2021-06-30 | English | PDF | 7.5MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB Руководство по монтажу и обслуживанию Manual | R-RS15302-WA | 2019-05-30 | Russian | PDF | 5.9MB Product Groups: Hägglunds CB Hägglunds CB
	Hägglunds CB - Motor hidráulico de pistones radiales Manual | RS15302-WA | 2021-06-30 | Spanish | PDF | 7.5MB Product Groups: Hägglunds CB Hägglunds CB
	Explosion-protected hydraulic products for industrial and mobile applications Brochure | R999000373 | 2017-03-01 | English | PDF | 5.8MB Product Groups: Pumps, CD - single rod cylinder, Proportional, high-response and servo valves, Axial piston pumps, Mobile controls Product overview
