Артикул: RX7086
В наличии

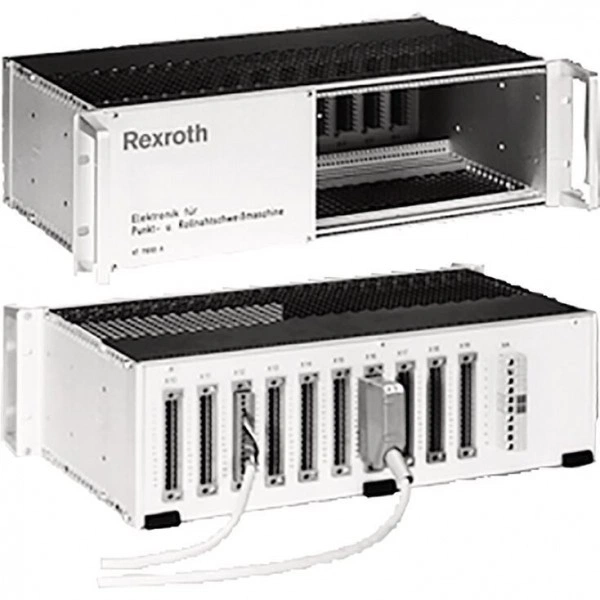

Rack 19 inch VT 19101, VT 19102, VT 19103
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Component series 1X
- For the installation of electronic assemblies in euro-card format
- According to DIN 41494 and IEC 297-3
Features
- Design according to VDE 0100/12.65-4
- Installation width 84 horizontal pitches (TE) 5.08 mm each
- Designs up to 3 x 3 rack units (HE) with 44.45 mm each for euro-cards 100 x 160 mm and 100 x 220 mm
- Contact protection by cover plates
- Wiring space enclosed
- Vibration-proof design (DB approval)
- Optional outgoing circuits for cabinet wiring:– hinged back wall with:
• 140 signal connection terminals on 10 connectors with 3 HE (connection cross-section max. 2.5 mm2)
• separate terminal block for voltage supply with 10 terminals (connection cross-section max. 6 mm2)
• The coding of all connectors is standard
• Pre-assembly of the connectors possibleor:– VT 10812 connection adapter (see data sheet 30105) for magazines without back wall
Type code
| 01 | 02 | 03 | 04 | ||
| VT 191_ _ | – | 1X | / | * |
| 01 | 1 x 3 HE; card dimensions 100 x 160 mm | 01 |
| 2 x 3 HE; card dimensions 100 x 160 mm | 02 | |
| 3 x 3 HE; card dimensions 100 x 160 mm | 03 | |
| 02 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| Nominal magazine depth with VT 19101 to VT 19103 (card dimensions 100 x 160 mm) | ||
| 03 | 160 mm (without back wall) | 1 |
| 220 mm (with back wall) | 2 | |
| 04 | further information (options) in the plain text | |
Technical data
(For applications outside these values, please consult us!)
Downloads
 | 19´´racks Data Sheet | RE29768 | 2008-05-05 | English | PDF | 721k Product Groups: Racks and card holders Type VT 19101, VT 19102, VT 19103 |
| 19´´racks - CHINESE Data Sheet | RC29768 | 2008-05-01 | Chinese | PDF | 364k Product Groups: Racks and card holders Type VT 19101，VT 19102，VT 19103 |
| Baugruppenträger 19-Zoll Data Sheet | RD29768 | 2008-05-05 | German | PDF | 719k Product Groups: Racks and card holders VT 19101, VT 19102, VT 19103 |
| Racks 19 pouces Data Sheet | RF29768 | 2008-05-05 | French | PDF | 654k Product Groups: Racks and card holders Types VT 19101, VT 19102, VT 19103 |
| Gabinete para módulos de 19 pulgadas Data Sheet | RS29768 | 2008-05-05 | Spanish | PDF | 650k Product Groups: Racks and card holders Tipo VT 19101, VT 19102, VT 19103 |
