Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line 7P Z31 +
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328
Technical data
(For applications outside these values, please consult us!)
| Short designation | 7P Z31 | ||
| Design | no code (see unit dimensions) | ||
| Ambient temperature | fixed installation | °C | -40 … +80 |
| flexible | °C | -25 … +80 | |
| Protection class according to EN 60529 | IP65 with mating connector mounted and fitted | ||
| IP 67 with mating connector mounted and fitted | |||
| Number of poles | 6 + PE | ||
| Standard | MIL-C 5015, VG 95 342 | ||
| Certification/conformity | RoHS, cRUus (UL2238) | ||
| Derating | 8,5 A | °C | + 40 |
| 4 A | °C | + 65 | |
| Connection line | Li9Y11CVY, black, halogen-free, flame-resistant, shielded, drag chain-compatible | ||
| Wire cross-section | 7 x 0.75 | ||
| Shielding braid overlap | 85 % ±5 % | ||
| Core marking | PE | green-yellow | |
| others | A: brown, B: yellow, C: green, D: blue, E: gray, F: white | ||
| Line diameter | mm | 9 | |
| Bending radius | fixed installation | min. 5 x line diameter | |
| flexible | min. 10 x line diameter | ||
Symbols/Circuit diagrams
6-pole + PE, plastic version, shielded

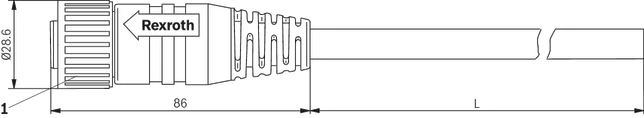

Dimensions
7PZ31
Dimensions in mm
| 1 | Line fitting, tightening torque MA = 1 … 1.5 Nm |
Downloads
 | Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet | RD08006 | 2021-05-01 | German | PDF | 1.4MB Product Groups: Mating connectors and cable sets |
| Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet | RE08006 | 2021-05-01 | English | PDF | 1.5MB Product Groups: Mating connectors and cable sets |
