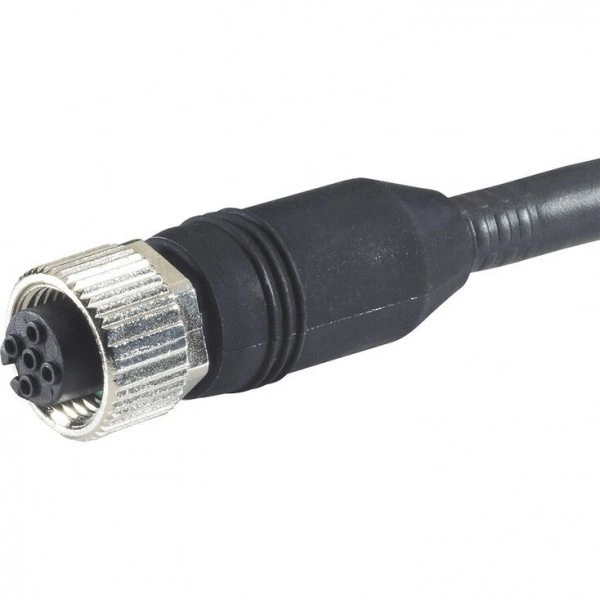

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line 4P Z24 +

Артикул: RX7053

В наличии

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line 4P Z24 +

Name: Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line 4P Z24 +
Brand: Bosch Rexroth
SKU: RX7053

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

For sensors and valves with connector “K24”, “K35” and “K72”
Mating connectors M12, 4-pole, line cross-section 0.75 mm2

Technical data

(For applications outside these values, please consult us!)

Mating connector	Short designation 1)		4PZ24 GS	4PZ24 AS
	Design		M12, coding A
	Ambient temperature	°C	-25 … +85
	Protection class according to EN 60529		IP 67 with mating connector mounted and fitted
	Number of poles		4
	Certification/conformity		UL, CSA
Connection line	Type		PUR-OB, black with approval: UL, CSA, CE
	Wire cross-section		4 x 0,34 mm2
	Core marking		1: braun; 2: weiß; 3: blau; 4: schwarz
	Line diameter	mm	5.2
	Bending radius	Fixed line installation	min. 10 x line diameter
	Bending radius	Flexible line	min. 15 x line diameter

1)	For version with UL certification up to 30 V.

Symbols/Circuit diagrams

M12 x 1, straight
M12 x 1, angled

Dimensions

M12 x 1, straight, 4PM12 and 4PZ24

Dimensions in mm

Downloads

	Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet \| RD08006 \| 2021-05-01 \| German \| PDF \| 1.4MB Product Groups: Mating connectors and cable sets
	Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet \| RE08006 \| 2021-05-01 \| English \| PDF \| 1.5MB Product Groups: Mating connectors and cable sets
