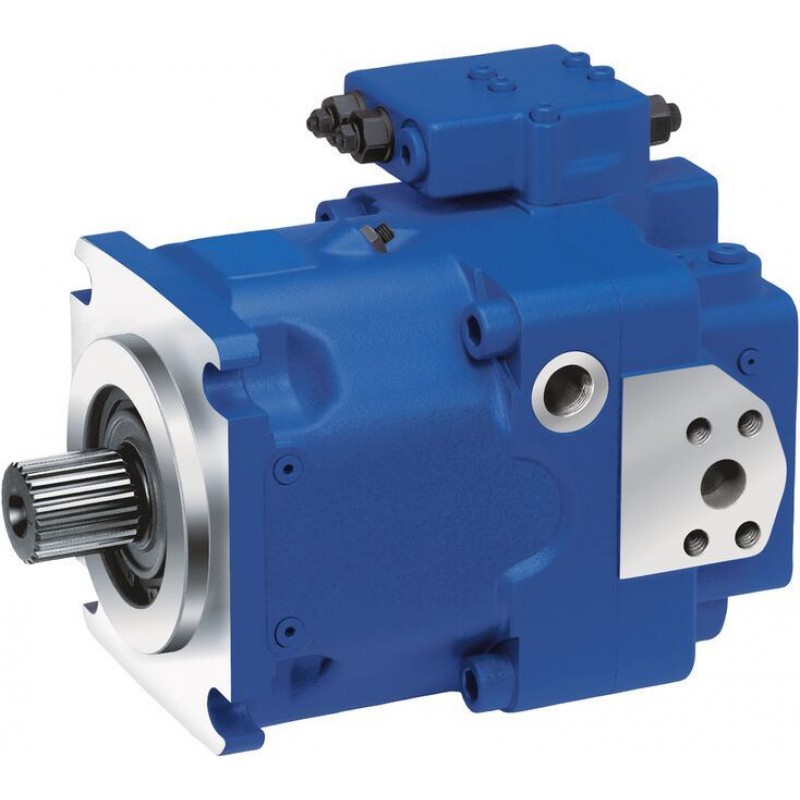

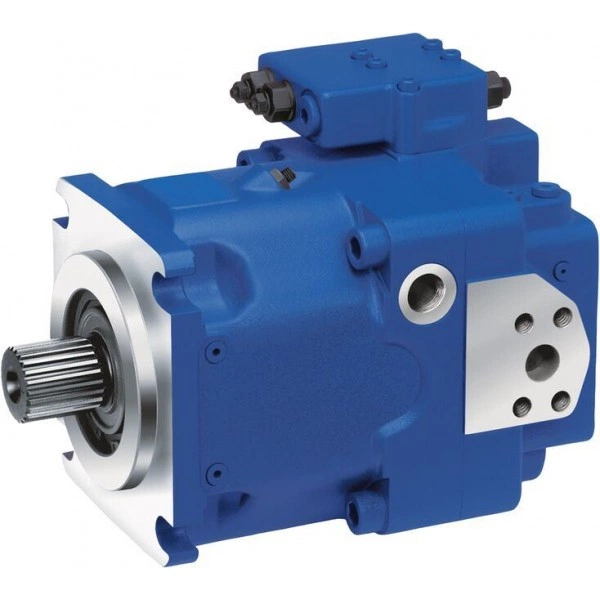

Axial piston variable pump A11V(L)O series 1x

Name: Axial piston variable pump A11V(L)O series 1x
Brand: Bosch Rexroth
SKU: RX7740

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

All-purpose high pressure pump with through drive
Size 40 … 260
Nominal pressure 350 bar
Maximum pressure 400 bar
Open circuit

Features

Through drive for mounting of further pumps up to same nominal size
Optional with charge pump for the nominal sizes 130…260
Particularly high speeds are possible with impeller pump version (A11VLO)
Large variety of controls
Swashplate design

Technical data

Table of values

Size				40	60	75	95	130	145	190	260	130	145	190	260
Version				Standard								With charge pump
Displacement geometric, per revolution		Vg max	cm³	42	58.5	74	93.5	130	145	193	260	130	145	193	260
Nominal pressure		pnom	bar	350	350	350	350	350	350	350	350	350	350	350	350
Maximum pressure		pmax	bar	400	400	400	400	400	400	400	400	400	400	400	400
Maximum speed	at Vg max	nnom	rpm	3000 1)	2700 1)	2550 1)	2350 1)	2100 1)	2200 1)	2100 1)	2000 1)	2500 2)	2500 2)	2500 2)	2300 2)
Flow	at Vg max and nnom	qV nom	l/min	126	158	189	220	273	319	405	468	325	363	483	598
Power	at qV nom and pnom	P	kW	74	92	110	128	159	186	236	273	190	211	281	349
Torque	at Vg max and pnom	M	Nm	234	326	412	521	724	808	1075	1448	724	808	1075	1448
Weight (approx.)		m	kg	32	40	45	53	66	76	95	125	72	73	104	138

1)	These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt
2)	These values are valid at an absolute pressure of 0,8 bar in suction port S and for the optimum viscosity range νopt

Ordering codes

Currently eShop is not available. Please try again later.

Downloads

	Axial Piston Variable Pump A11V(L)O Series 10 and 11 Manual \| RE92500-01-B \| 2013-04-01 \| English \| PDF \| 2MB Product Groups: Pumps, Variable pumps, open circuit Operating Instructions
	Axialkolben-Verstellpumpe A11V(L)O Baureihe 10 und 11 Manual \| RD92500-01-B \| 2013-04-01 \| German \| PDF \| 2MB Product Groups: Pumps, Variable pumps, open circuit Betriebsanleitung
	Pompe à pistons axiaux à cylindrée variable A11V(L)O Séries 10 et 11 Manual \| RF92500-01-B \| 2013-04-01 \| French \| PDF \| 2.1MB Product Groups: Pumps, Variable pumps, open circuit
	Pompa a pistoni assiali a cilindrata variabile A11V(L)O Serie 10 e 11 Manual \| RI92500-01-B \| 2013-04-01 \| Italian \| PDF \| 2MB Product Groups: Pumps, Variable pumps, open circuit
	Axial Piston, Variable Displacement Pump A11VO Data Sheet \| RE92500 \| 2009-10-01 \| English \| PDF \| 2.6MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Pompa tłokowa osiowa o zmiennej objętości roboczej A11VO Data Sheet \| R-PL92500 \| 2009-10-01 \| Polish \| PDF \| 2.9MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Pompa a pistoni assiali a cilindrata variabile A11VO Data Sheet \| RI92500 \| 2009-10-01 \| Italian \| PDF \| 2.2MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	轴向柱塞变量泵 A11VO Data Sheet \| RC92500 \| 2009-10-01 \| Chinese \| PDF \| 3MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit 系列 1
	Pompe à cylindrée variable à pistons axiaux A11VO Data Sheet \| RF92500 \| 2009-10-01 \| French \| PDF \| 2.6MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Axialkolben-Verstellpumpe A11VO Data Sheet \| RD92500 \| 2009-10-01 \| German \| PDF \| 2.4MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Bomba variable a pistones axiales A11VO Data Sheet \| RS92500 \| 2009-10-01 \| Spanish \| PDF \| 2.4MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
	Axial Piston Variable Pump AA11VO Data Sheet \| RE-A92500 \| 2009-10-01 \| English \| PDF \| 3MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit
