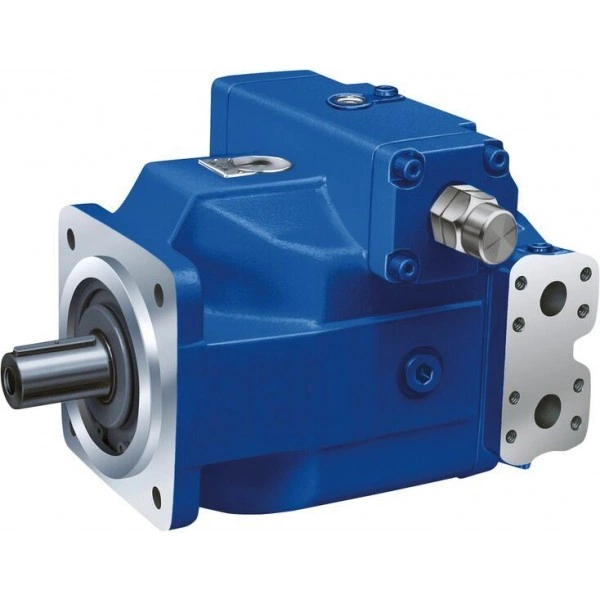

Axial piston variable pump A4VSG

Description

• Robust high pressure pump for industrial applications
• Size 40 … 1000
• Nominal pressure 350 bar
• Maximum pressure 400 bar
• Closed circuit

Features

• Robust pump with very long service life
• Low operating noise
• Through drive for mounting of further pumps up to same nominal size
• Flow direction changes when the swashplate is moved through the neutral position
• Axial and radial load capacity of drive shaft
• Modular system
• Visual swivel angle indicator
• Controls with short response times
• HF-operation possible with lower specification
• Swashplate design

Technical data

Table of values

Controllers/adjustment devices

Pressure and flow controller

DR, DP, FR, DFR

Pressure and flow controller

DR, DP, FR, DFR

• Available for A4VSO and A4VSG
• Pressure and flow control
• Remote controlled optional
• Pressure controller for parallel operation optional
• Mechanical Vg min and Vg max limitation

• Data sheet

• Spare parts & repair

Pilot-pressure related proportional control

HD

Pilot-pressure related proportional control

HD

• Available for A4VSO, A4VSG and A4CSG
• Control is pilot-pressure related
• Different pilot-pressure ranges available
• Power control, pressure control and electrical pilot pressure supply optional
• Standard spring-centering of the stroking cylinder

• Data sheet

• Spare parts & repair

Electrohydraulic control with proportional solenoid

EP

Electrohydraulic control with proportional solenoid

EP

• Available for A4VSG and A4CSG
• Electro-proportional control by a current signal
• High control accuracy
• Resets to neutral position in the event of a signal failure
• With manual override

• Data sheet

• Spare parts & repair

Electrohydraulic control systems

HSx, HMx, EOx

Electrohydraulic control systems

HSx, HMx, EOx

• Available for A4VSO, A4VBO, A4VSG and A4CSG
• Electrohydraulic control with proportional and control valve
• Digital electrohydraulic control systems with amplifier
• Control of swivel angle, pressure and power (HS5P)
• Usable as a special version in mooring operation (overcenter)

• Data sheet

• Spare parts & repair

Secondary control for closed circuit

DS2

Secondary control for closed circuit

DS2

• Available for A4VSG
• Highly dynamic rotary drive for closed circuit
• Motor and generator operation for both directions of rotation
• With energy recovery and energy storage
• With closed loop rotational speed, position, or torque control for high control performance and dynamics

• Data sheet

• Spare parts & repair

Pressure and flow controller

DR, DP, FR, DFR

Pressure and flow controller

DR, DP, FR, DFR

• Available for A4VSO and A4VSG
• Pressure and flow control
• Remote controlled optional
• Pressure controller for parallel operation optional
• Mechanical Vg min and Vg max limitation

• Data sheet

• Spare parts & repair

Pilot-pressure related proportional control

HD

Pilot-pressure related proportional control

HD

• Available for A4VSO, A4VSG and A4CSG
• Control is pilot-pressure related
• Different pilot-pressure ranges available
• Power control, pressure control and electrical pilot pressure supply optional
• Standard spring-centering of the stroking cylinder

• Data sheet

• Spare parts & repair

Electrohydraulic control with proportional solenoid

EP

Electrohydraulic control with proportional solenoid

EP

• Available for A4VSG and A4CSG
• Electro-proportional control by a current signal
• High control accuracy
• Resets to neutral position in the event of a signal failure
• With manual override

• Data sheet

• Spare parts & repair

Electrohydraulic control systems

HSx, HMx, EOx

Electrohydraulic control systems

HSx, HMx, EOx

• Available for A4VSO, A4VBO, A4VSG and A4CSG
• Electrohydraulic control with proportional and control valve
• Digital electrohydraulic control systems with amplifier
• Control of swivel angle, pressure and power (HS5P)
• Usable as a special version in mooring operation (overcenter)

• Data sheet

• Spare parts & repair

Secondary control for closed circuit

DS2

Secondary control for closed circuit

DS2

• Available for A4VSG
• Highly dynamic rotary drive for closed circuit
• Motor and generator operation for both directions of rotation
• With energy recovery and energy storage
• With closed loop rotational speed, position, or torque control for high control performance and dynamics

• Data sheet

• Spare parts & repair
