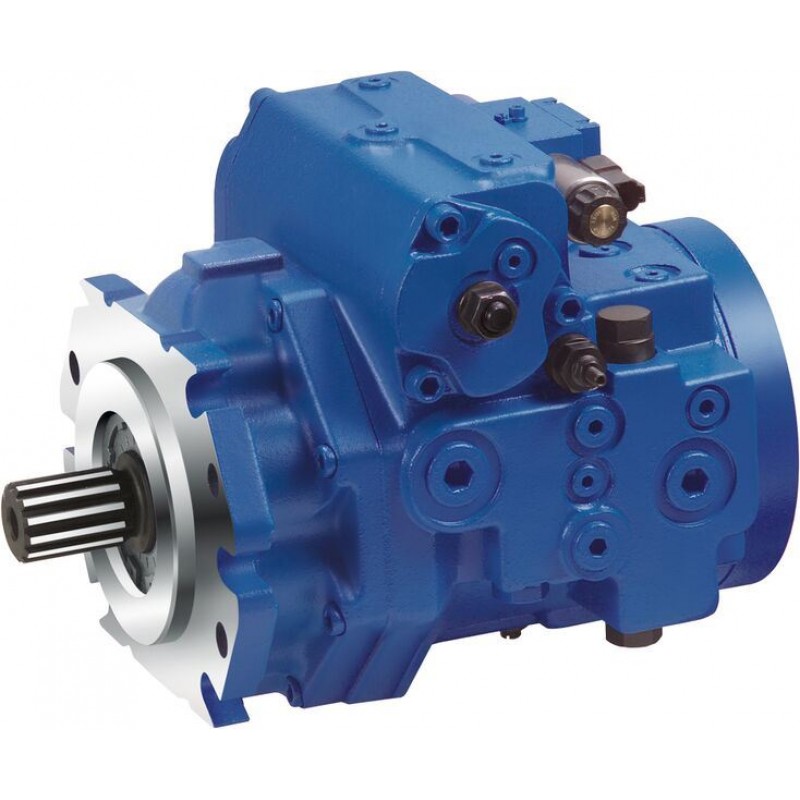

Axial piston variable pump A4VG series 40

Name: Axial piston variable pump A4VG series 40
Brand: Bosch Rexroth
SKU: RX7733

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

High pressure pump for applications in closed circuits up to 500 bar
Size 45 … 280
Nominal pressure 450 bar
Maximum pressure 500 bar
Closed circuit

Features

High power density due to very high pressure level
Integrated boost pump for boost and pilot oil supply
Flow direction changes when the swashplate is moved through the neutral position
High-pressure relief valves with integrated boost function
With adjustable pressure cut-off as standard
Boost-pressure relief valve
Through drive for mounting of further pumps up to same nominal size
High total efficiency
Large variety of controls
Swashplate design

Technical data

Table of values

Size				45	65	85	110	125	145	175	210	280	110	145	175
Version				Standard									High speed
Nominal pressure		pnom	bar	450	450	450	450	450	450	450	450	450	450	450	450
Maximum pressure		pmax	bar	500	500	500	500	500	500	500	500	500	500	500	500
Maximum speed	at Vg max	nnom	rpm	4300	3800	3300	3150	3000	2850	2650	2500	2400	3400	3050	3000
Maximum speed	Intermittent 1)	nmax	rpm	4500	4000	3500	3350	3150	3000	2800	2650	2550	3600	3200	3100
Flow	at Vg max and nnom	qV nom	l/min	195	248	282	348	375	414	465	527	673	375	443	526
Power	at qV nom and Δpnom 2)	P	kW	140	178	202	249	269	297	333	377	482	269	318	377
Torque	at Vg max and Δpnom	M	Nm	310	446	584	756	856	994	1200	1441	1918	756	994	1200
Weight (approx.)		m	kg	55	58	77	88	84	106	115	152	160	88	106	115

1)	At Δp ≥ 40 bar and t < 15 s
2)	Δpnom = 430 bar

Accessories

Hall-effect swivel angle sensor

SWS55

Hall-effect swivel angle sensor

SWS55

Sensor for contactless detection of the swivel angle of axial piston units using a Hall-effect based sensor IC
Compatible with BODAS controllers
High type of protection IP67 / IP69K
Sealing for pressure to maximum 10 bar
Redundant version with 2 measuring systems

Data sheet

Downloads

	Pompe à pistons axiaux à cylindrée variable A4VG Série 40 Manual \| RF92004-01-B \| 2017-05-01 \| French \| PDF \| 1.5MB Product Groups: Pumps, Variable pumps, closed circuit Manuel d'utilisation
	Pompa a pistoni assiali a cilindrata variabile A4VG Serie 40 Manual \| RI92004-01-B \| 2017-05-01 \| Italian \| PDF \| 1.5MB Product Groups: Pumps, Variable pumps, closed circuit Istruzioni d’uso
	Axial piston variable pump A4VG Manual \| RE92004-01-B \| 2017-05-01 \| English \| PDF \| 1.4MB Product Groups: Pumps, Variable pumps, closed circuit Instruction manual
	Verstellpumpe A4VG Baureihe 40 Manual \| RD92004-01-B \| 2017-05-01 \| German \| PDF \| 1.4MB Product Groups: Pumps, Variable pumps, closed circuit Betriebsanleitung
	Аксиально-поршневой регулируемый насос A4VG Серия 40 Data Sheet \| R-RS92004 \| 2020-03-30 \| Russian \| PDF \| 7.3MB Product Groups: Variable pumps, closed circuit
	Verstellpumpe A4VG Baureihe 40 Data Sheet \| RD92004 \| 2020-03-30 \| German \| PDF \| 6MB Product Groups: Pumps, Variable pumps, closed circuit Hochdruckpumpe für Anwendungen im geschlossenen Kreislauf bis 500 bar
	Axial Piston Variable Pump A4VG Series 40 Data Sheet \| RE92004 \| 2020-03-30 \| English \| PDF \| 6.1MB Product Groups: Pumps, Variable pumps, closed circuit High-pressure pump for applications in a closed circuit up to 500 bar
	Axial piston variable pump A4VG series 40, Americas Data Sheet \| RE-A92004 \| 2020-03-30 \| English \| PDF \| 6MB Product Groups: Pumps, Variable pumps, closed circuit High-pressure pump for applications in a closed circuit up to 7250 psi (500 bar)
