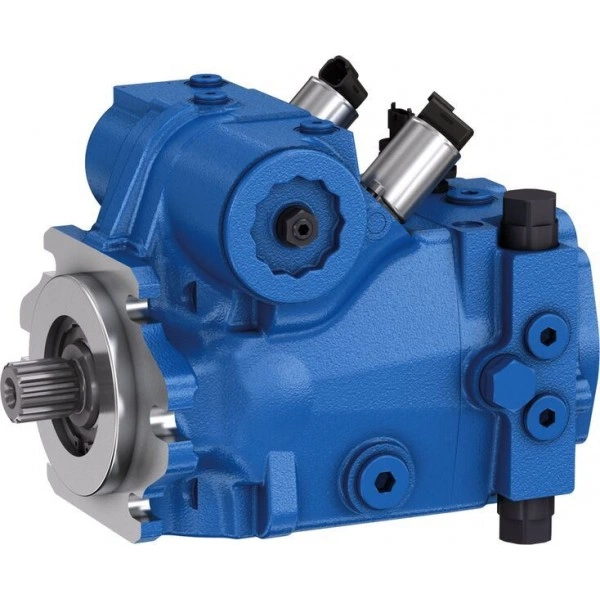

Axial piston variable pump A4VG series 35

Name: Axial piston variable pump A4VG series 35
Brand: Bosch Rexroth
SKU: RX7732

Цена по запросу

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

Нужна скидка? Звони — сделаем лучшее предложение

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

High power density due to very high pressure level
Integrated boost pump for boost and pilot oil supply
Flow direction changes when the swashplate is moved through the neutral position
High-pressure relief valves with integrated boost function
Boost-pressure relief valve
Through drive for mounting additional pumps
High total efficiency
Swashplate design
Compact design
High power density
Especially suitable for use in electronified travel drives thanks to integrated sensors
Supports the cross-linking of motor and machine control with the travel drive

Table of values

Size				56	71	90
Displacement geometric, per revolution		Vg max	cm³	56	71	90
Nominal pressure		pnom	bar	400	400	400
Maximum pressure		pmax	bar	530	530	530
Maximum speed 1)	at Vg max	nnom	rpm	3600	3300 2)	3050
Maximum speed 1)	Intermittent 3)	nmax	rpm	4050		3500
Flow	at Vg max and nnom	qV nom	l/min	202	234	284
Power	at qV nom and Δpnom 4)	P	kW	134	156	189
Torque	at Vg max and Δpnom 4)	M	Nm	357	452	573
Weight (approx.)		m	kg	37	48	49

1)	These values are valid at: - for the optimum viscosity range from vopt = 36 to 16 mm2/s - with hydraulic fluid based on mineral oils (for HF hydraulic fluids, observe the technical data in 90225)
2)	Valid for a suction pressure of 0,9 bar abs. With a suction pressure of 0,8 bar abs., the maximum permissible rotational speed is 3200 rpm.
3)	At Δp = ≥ 40 bar and t < 15 s
4)	Δpnom = 400 bar

	Axial piston variable pump A4VG Series 35 Manual \| RE92035-01-B \| 2019-11-25 \| English \| PDF \| 1.6MB Product Groups: Pumps, Variable pumps, closed circuit Instruction manual
	Axialkolben-Verstellpumpe A4VG Baureihe 35 Manual \| RD92035-01-B \| 2019-11-25 \| German \| PDF \| 1.6MB Product Groups: Pumps, Variable pumps, closed circuit Betriebsanleitung
	Axial piston variable pump A4VG Series 35 Data Sheet \| RE92035 \| 2020-02-12 \| English \| PDF \| 1.9MB Product Groups: Pumps, Variable pumps, closed circuit High-pressure pump for applications in a closed circuit up to 530 bar
	Axialkolben-Verstellpumpe A4VG Baureihe 35 Data Sheet \| RD92035 \| 2020-02-12 \| German \| PDF \| 1.9MB Product Groups: Pumps, Variable pumps, closed circuit Anwendungen im geschlossenen Kreislauf bis 530 bar
	A4VG Baureihe 35 Fact Sheet \| RD98722 \| 2016-09-30 \| German \| PDF \| 1MB Product Groups: A4VG/35 A4VG Baureihe 35 Axialkolben-Verstellpumpe
	A4VG series 35 Fact Sheet \| RE98722 \| 2016-09-30 \| English \| PDF \| 1MB Product Groups: A4VG/35 A4VG series 35 Axial piston variable pump
	A4VG 35 серии Fact Sheet \| R-RS98722 \| 2016-09-30 \| Russian \| PDF \| 1.3MB Product Groups: A4VG/35 Аксиально-поршневой регулируемый насос A4VG 35 серии
