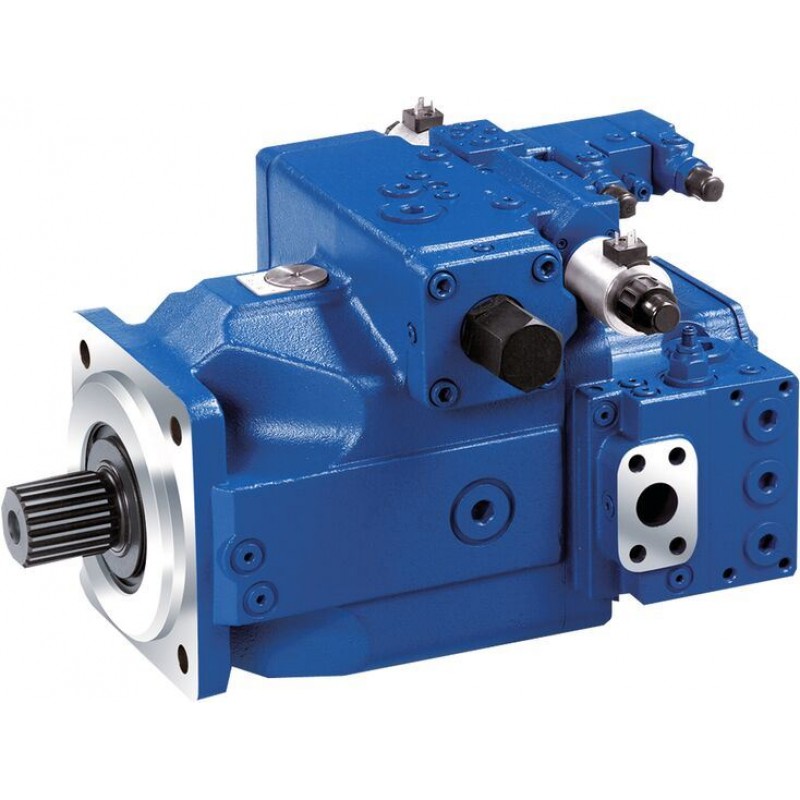

Axial piston variable pump A4CSG series 30

Description

• Robust high pressure pump with integrated boost pump
• Size 250 … 750
• Nominal pressure 350 bar
• Maximum pressure 400 bar
• Closed circuit

Features

• Integrated boost pump for boost and pilot oil supply
• Integrated pressure relief valves for boost-, control- and high-pressure
• Robust pump with very long service life
• Integrated flushing valve
• Through drive for mounting of further pumps up to same nominal size
• Flow direction changes when the swashplate is moved through the neutral position
• Axial and radial load capacity of drive shaft
• Low operating noise
• Visual swivel angle indicator
• Controls with short response times
• High total efficiency
• Swashplate design

Technical data

Table of values

Controllers/adjustment devices

Pilot-pressure related proportional control

HD

Pilot-pressure related proportional control

HD

• Available for A4VSO, A4VSG and A4CSG
• Control is pilot-pressure related
• Different pilot-pressure ranges available
• Power control, pressure control and electrical pilot pressure supply optional
• Standard spring-centering of the stroking cylinder

• Data sheet

• Spare parts & repair

Electrohydraulic control with proportional solenoid

EP

Electrohydraulic control with proportional solenoid

EP

• Available for A4VSG and A4CSG
• Electro-proportional control by a current signal
• High control accuracy
• Resets to neutral position in the event of a signal failure
• With manual override

• Data sheet

• Spare parts & repair

Electrohydraulic control systems

HSx, HMx, EOx

Electrohydraulic control systems

HSx, HMx, EOx

• Available for A4VSO, A4VBO, A4VSG and A4CSG
• Electrohydraulic control with proportional and control valve
• Digital electrohydraulic control systems with amplifier
• Control of swivel angle, pressure and power (HS5P)
• Usable as a special version in mooring operation (overcenter)

• Data sheet

• Spare parts & repair

Pilot-pressure related proportional control

HD

Pilot-pressure related proportional control

HD

• Available for A4VSO, A4VSG and A4CSG
• Control is pilot-pressure related
• Different pilot-pressure ranges available
• Power control, pressure control and electrical pilot pressure supply optional
• Standard spring-centering of the stroking cylinder

• Data sheet

• Spare parts & repair

Electrohydraulic control with proportional solenoid

EP

Electrohydraulic control with proportional solenoid

EP

• Available for A4VSG and A4CSG
• Electro-proportional control by a current signal
• High control accuracy
• Resets to neutral position in the event of a signal failure
• With manual override

• Data sheet

• Spare parts & repair

Electrohydraulic control systems

HSx, HMx, EOx

Electrohydraulic control systems

HSx, HMx, EOx

• Available for A4VSO, A4VBO, A4VSG and A4CSG
• Electrohydraulic control with proportional and control valve
• Digital electrohydraulic control systems with amplifier
• Control of swivel angle, pressure and power (HS5P)
• Usable as a special version in mooring operation (overcenter)

• Data sheet

• Spare parts & repair
